Assembly of Left Oil Seal
Take the oil seal of correct type, apply grease on its lips, put it
on the due position with special tool, rotate the nut of special
tool until the oil seal is installed firmly onto its proper
position.
Assembly of Output Flange
When mounting output flange, press it in with presser or
special tool, as indicated in figure.
When mounting disk-shape washer, check it to see whether it
is at its due position.
When mounting snap ring, ensure it is in the groove.
Mount a new flange blind cover.
Connect the driving shaft and output flange. If necessary,
re-apply lubricant onto the given position.
Note:
The right oil seal of output flange is fixed on oil
seal seat. When dismantling the seat, knock it
down slightly with end wrench. When mounting,
press it fully in with special tool.

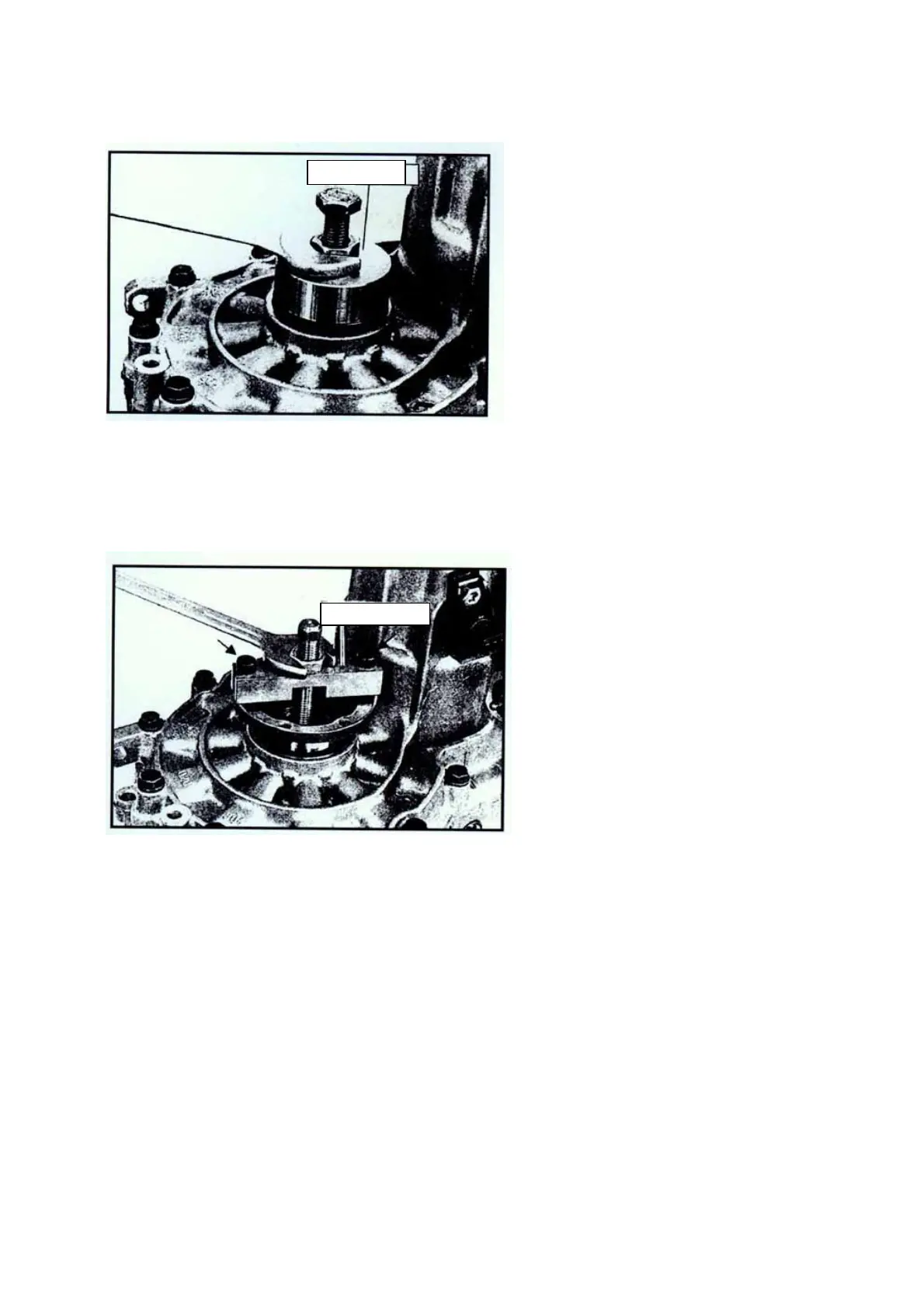

Special tool
S
ecial tool
30
