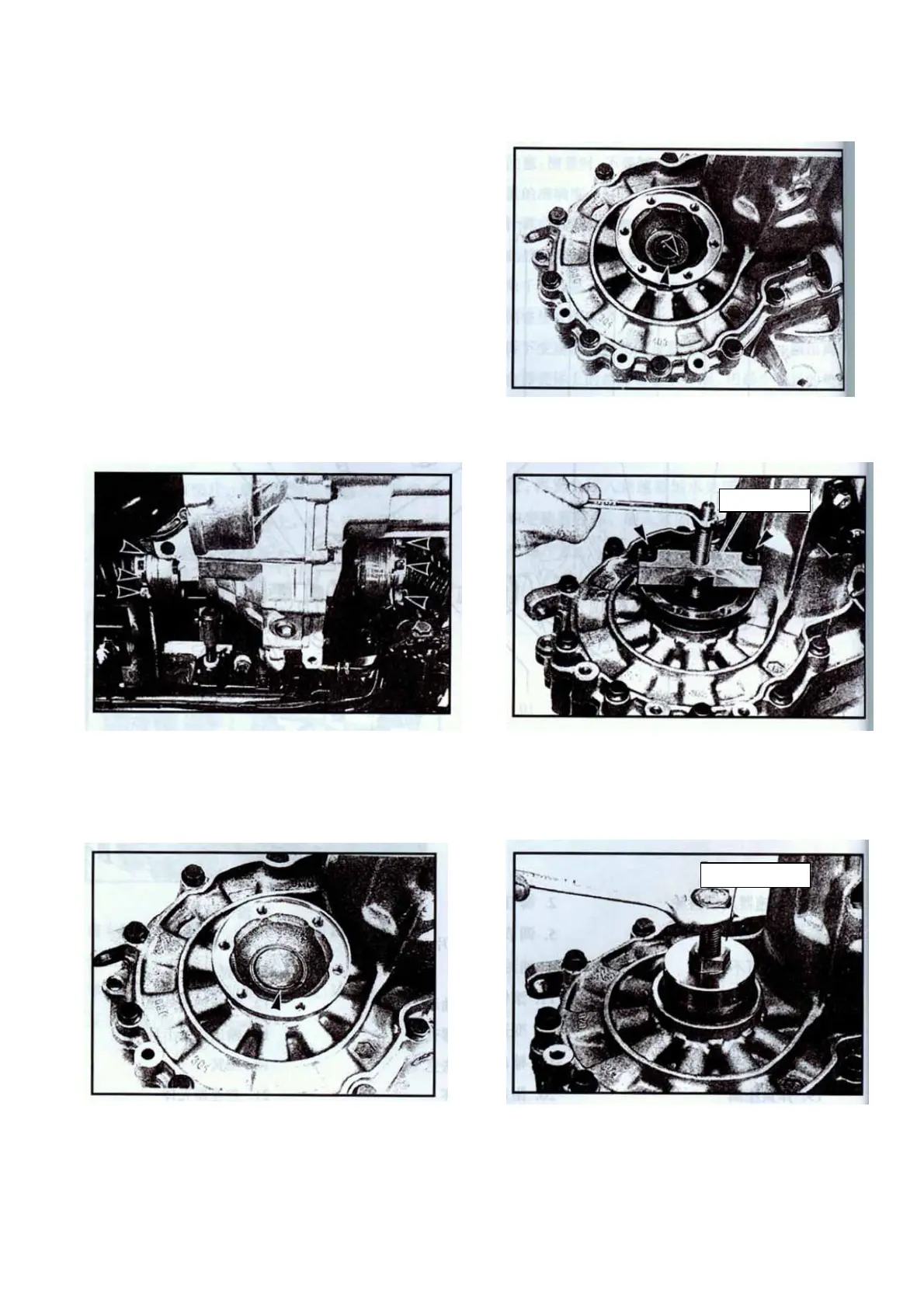

Dismantlement and Assembly of Oil Seal and Output
Flange
It can be done without disassembling the transmission assy.
Dismantlement and Assembly of Left Oil Seal and Output
Flange
Take out snap ring and disk-shape washer
Remove the joining bolts of driving shaft and output flange,
remove the driving shaft and fix it at given position.
As indicated in figure, fix M8 bolt onto the flange with
special tool, rotate the shaft of the special tool with
wrench to remove the output flange. Remove spring lint
and spreader spring.
Flush down the blind cover of flange wit grafter or deift
punch.
Fasten the special tool onto oil seal, wrench the screw
spindle of the tool with wrench as indicated in figure,
until the oil seal is unscrewed.
Special tool
Special tool
