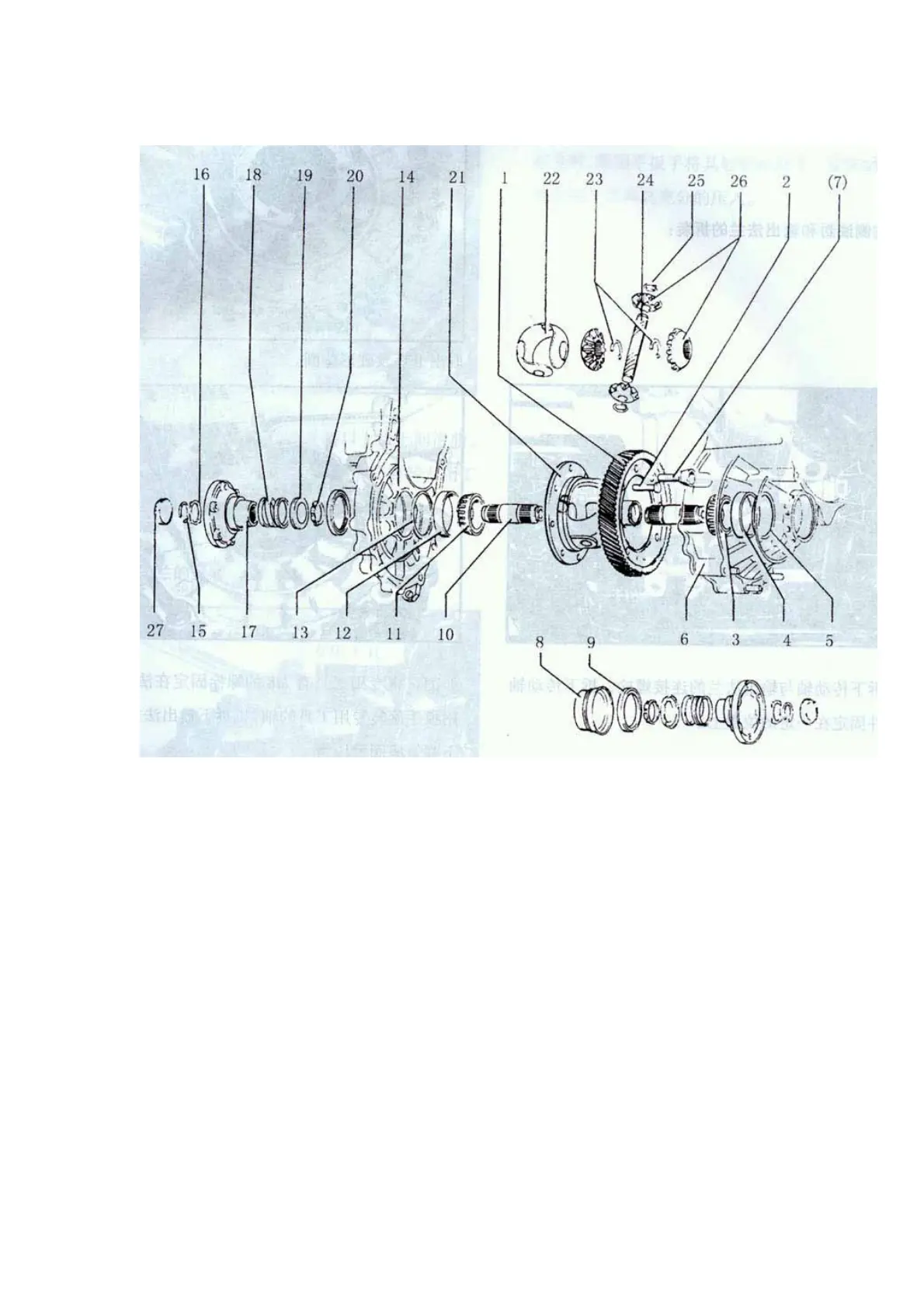

Disassembly of Differential Gear Assy.
1. Driven gear of master speed reducer
2. Rivet
3. Needle roller bearing
4. Outer loop of needle roller bearing
5. Adjusting shim
6. Clutch housing
7. Rivet (not necessary to be used)
8. Oil seal seat
9. Oil seal
10. Minor half axle
11. Needle roller bearing
12. Outer loop of needle roller bearing
13. Adjusting shim
14. Differential housing
15. Snap ring of output flange
16. Disk-shape washer of output flange
17. Output flange
18. Spreader spring
19. Spring ling
20. Damping ring
21. Differential housing
22. Ball gasket
23. Snap ring
24. Planetary gear shaft
25. Planetary gear snap ring
26. Half gear and planetary gear
27. Blind cover of output flange
