Usage, repair and maintenance specification of CAC gasoline engine
The removal and installation of oil collector assembly
removal
——Loosen locknut of oil collector assembly and
take out the nut and flat washer
——Loosen carrier bolts and take out the bolts
——Loosen flange face bolt of oil collector (two )
and take out the two bolts with spring washers

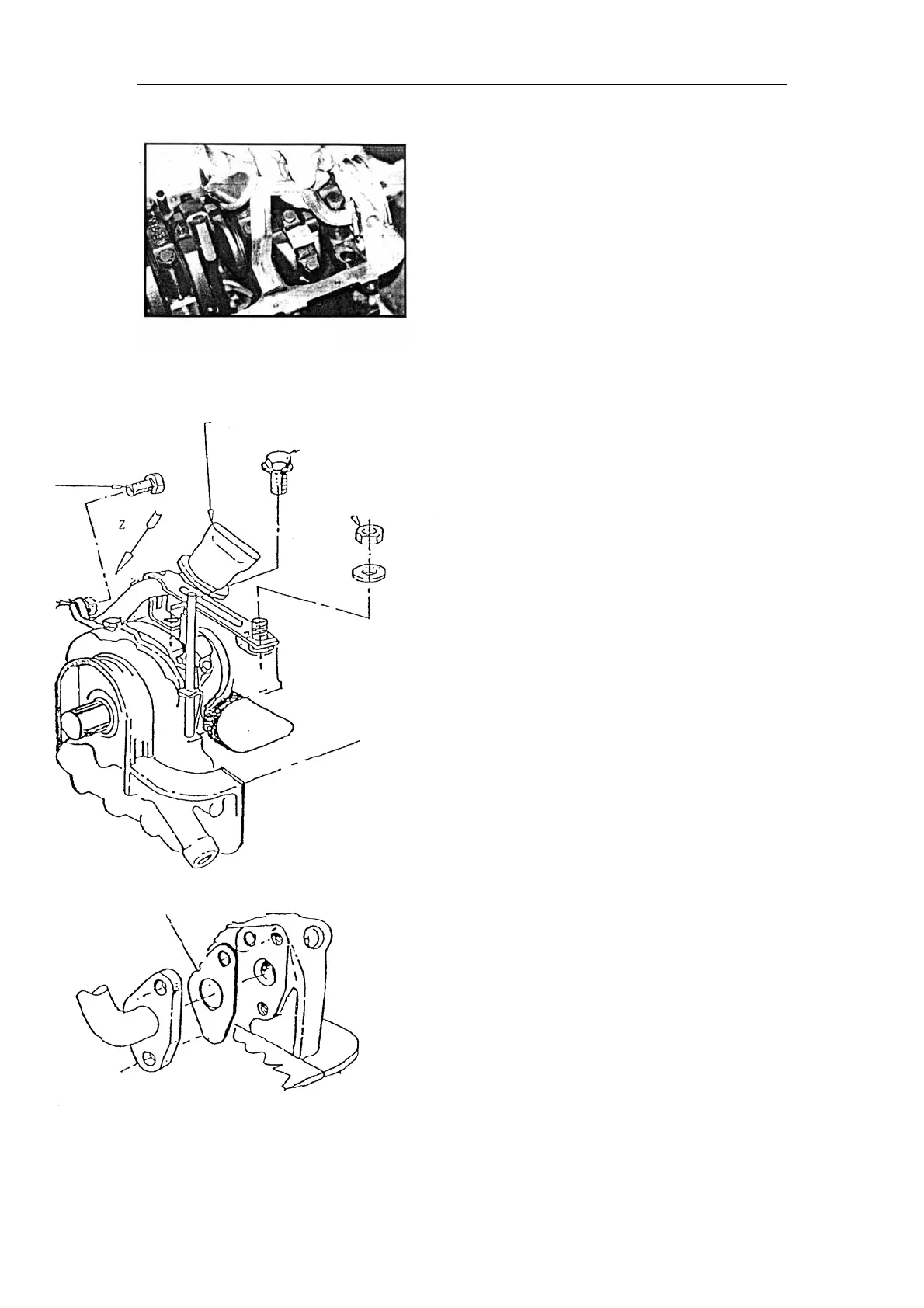

Fig. 76
sealing plate- filter
Z direction
Fig. 78
Fig. 77
flat washer
tightening torque
17.0-23.0Nm
screw M8
screw M6×20
oil collector
Tightening torque 8.0-12.0N
m
with spring plate screws(2)
Installation
——Install a new sealing gasket of oil collector
on the flange face of oil pump and then install oil
collector assembly. Screw two bolts with gasket
by hand.
——Screw the oil collector carrier into the
cylinder body with M8 bolt. At the same time,
hitch the carrier into the stud which is in the left
of the second bearing cap. Install the flat washer
and screw in the nut by hand.
——Tighten the flange face bolt of oil collector
to 8.012.0Nm.
——Tighten carrier bolt to 1723Nm
——Tighten the locknut to 1723Nm
