Chery A11 2003 User Manual

Usage, repair and maintenance specification of CAC gasoline engine
4. The removal and installation of oil pump with oil seal
assembly

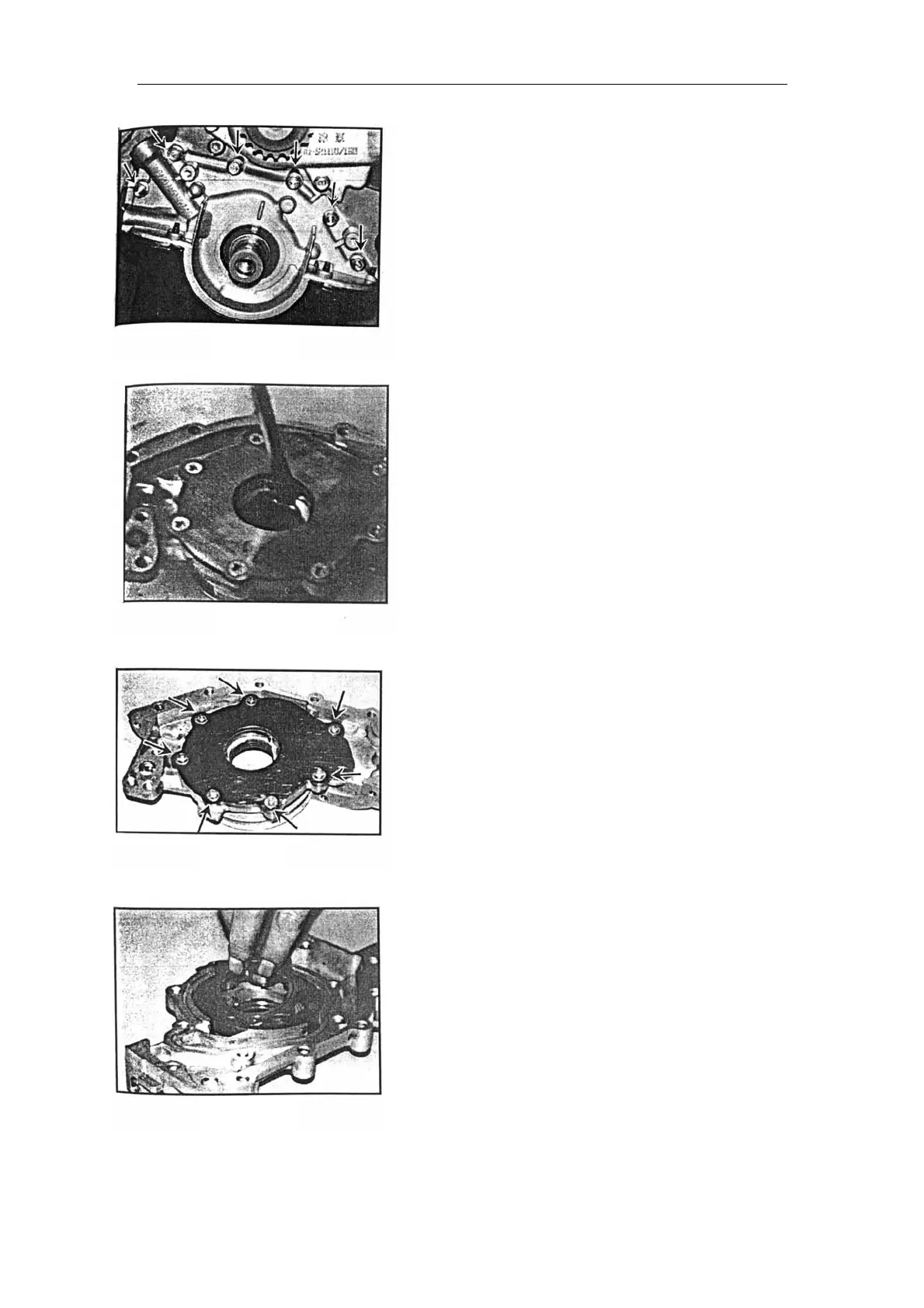

Fig. 82
Fig. 81
Fi
g
. 80
Fig. 79
removal：
——Loosen six M6×30 hexagonal flange surface bolts.
Remove the bolts (as the figure indicates )
——Remove oil pump with oil seal assembly
——Pry out the front oil seal of crankshaft by
screwdriver or chisel. Note: Don’t damage the front oil
seal bore.
——Remove seven M6 countersunk head screws (as the
arrow in figure indicates )
——Remove oil pump cover
——Take out the inner and outer rotor
45
