Usage, repair and maintenance specification of CAC gasoline engine
——Check the clearance between outer rotor of oil pump
and case bore of oil pump.

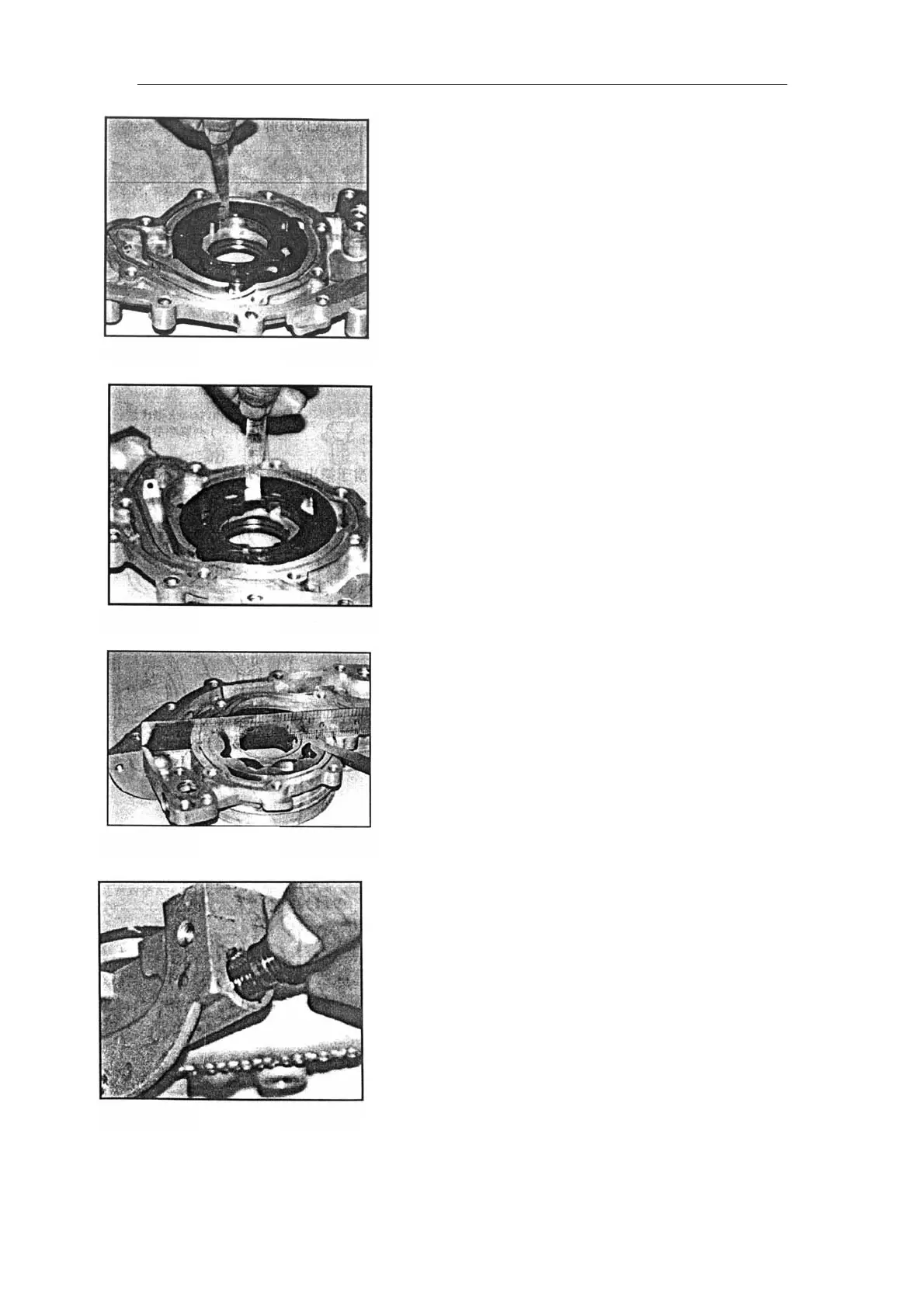

Fig. 86
Fig. 85
Fig. 84
Fig. 83
The clearance between outer rotor of oil pump and
case bore of oil pump should be 0.06—0.19mm.
——Check the radial clearance between inner rotor and
outer rotor of oil pump.
The radial clearance between inner rotor and outer
rotor of oil pump should be 0.05—0.18mm.
——Check the end play of rotor
The end play of rotor should be 0.014—0.100mm.
——Remove horizontal hexagonal socket head plug (small
one)
——Take out the spring of relief valve and plunger of relief
valve.
——Check the spring load and free length
spring free length is 46mm。
spring load is 32.8N±2N when the length is 29mm.
installation length of relief valve spring is 38.5mm.
