4. The removal and installation of oil pump with oil seal assembly
removal：
——Loosen six M6×30 hexagonal flange surface bolts. Remove the
bolts (as the figure indicates )
——Remove oil pump with oil seal assembly
——Pry out the front oil seal of crankshaft by screwdriver or chisel.
Note: Don’t damage the front oil seal bore.
——Remove seven M6 countersunk head screws (as the arrow in
figure indicates )
——Remove oil pump cover
——Take out the inner and outer rotor

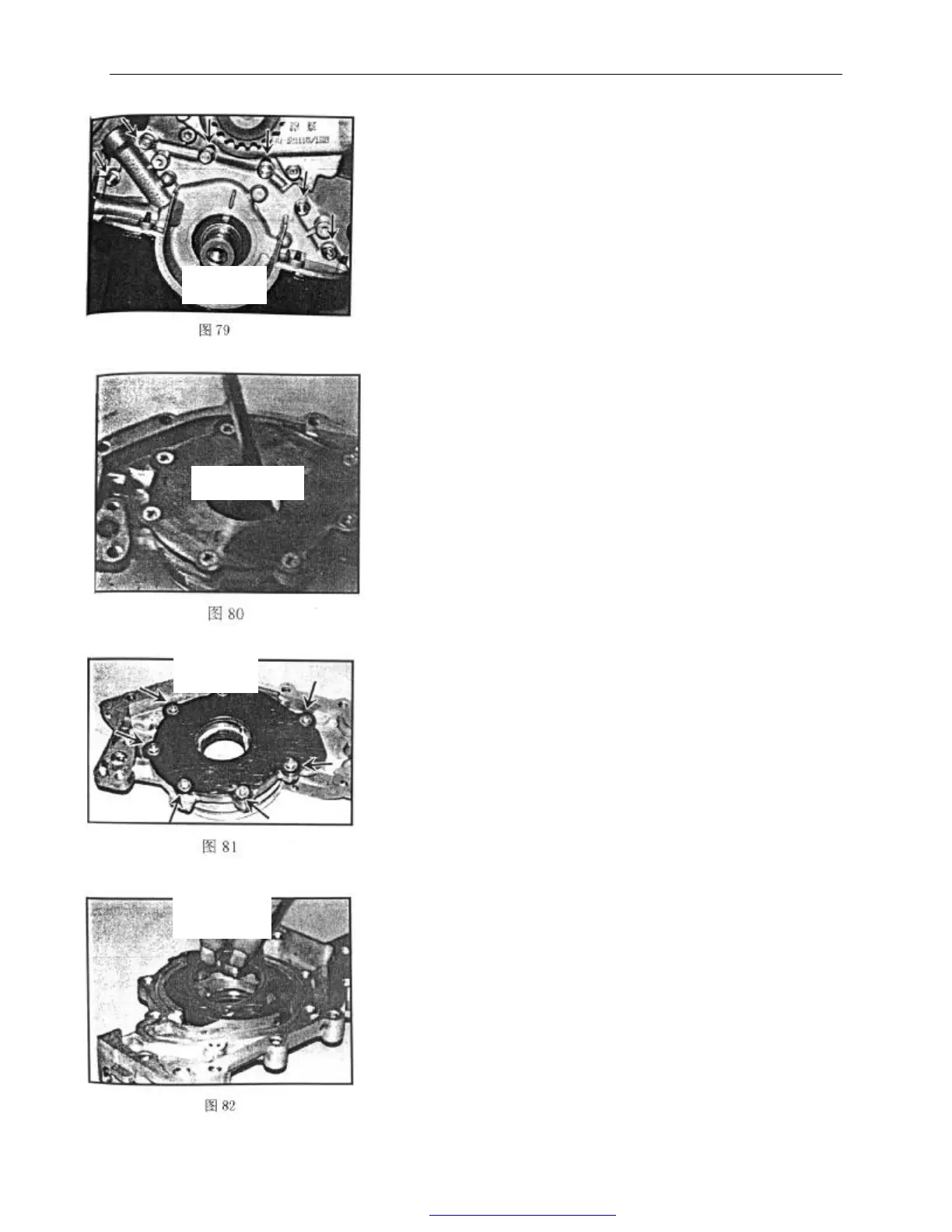

Fig. 79
Fig. 80
Fig. 81
Fig. 82
