CAC Gasoline Engine Maintenance And Servicing Manual
101
4. system service
(*) A/C input and signal (if euipped)

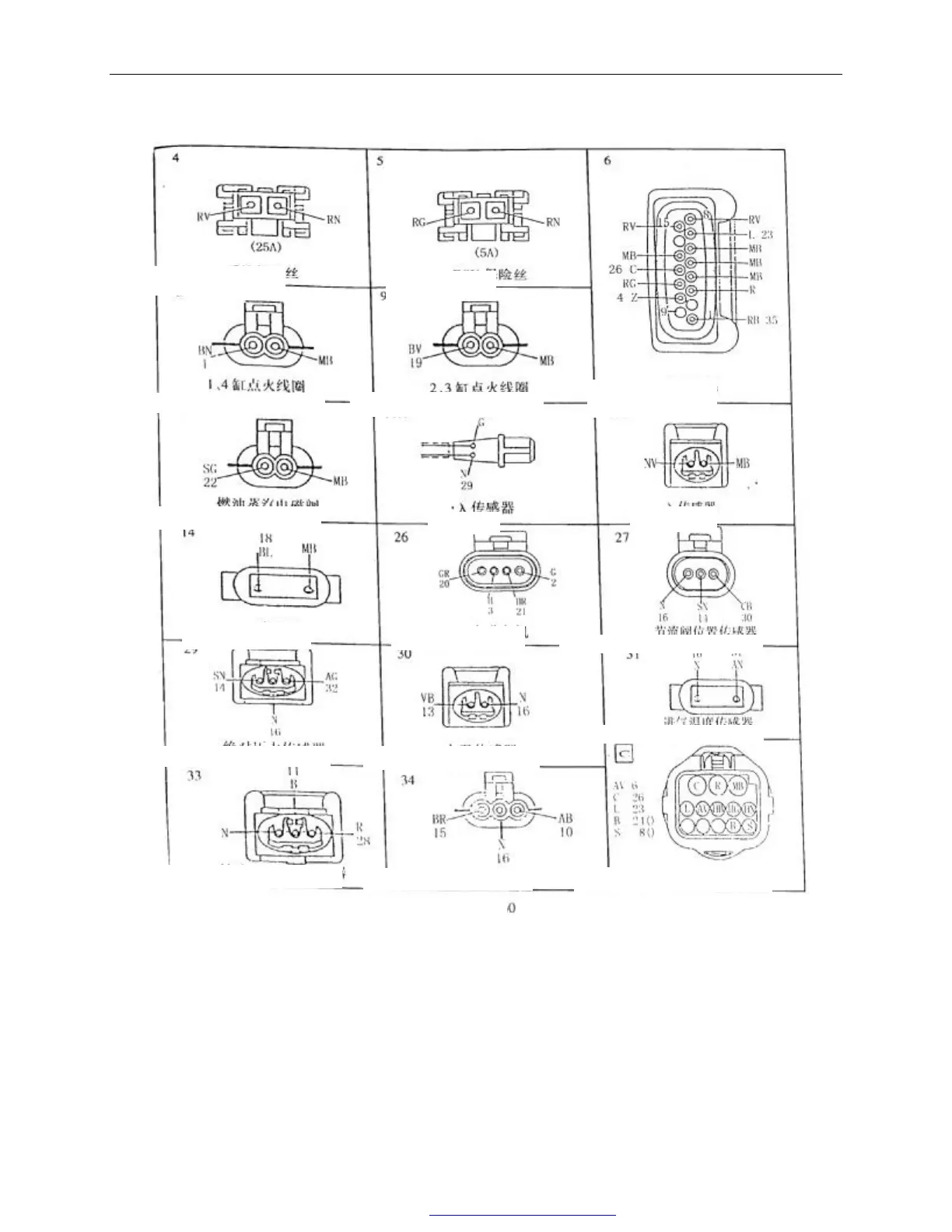

Note：1) All connector are viewed from the intake side of the cable
2) Cable color and number indicates the 35-pin ECU connector connection of injection
system
Fig.160
system fuse
ignition coil of cylinder 1, 4
ignition coil of cylinder 2,3
fuel vapor solenoid
sensor
sensor
fuel injector
step motor
throttle valve position sensor
water temperature sensor
intake gas temperature sensor
tacho/top dead center sensor
diagnosis connector
front cable terminal box
dual relays
