CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

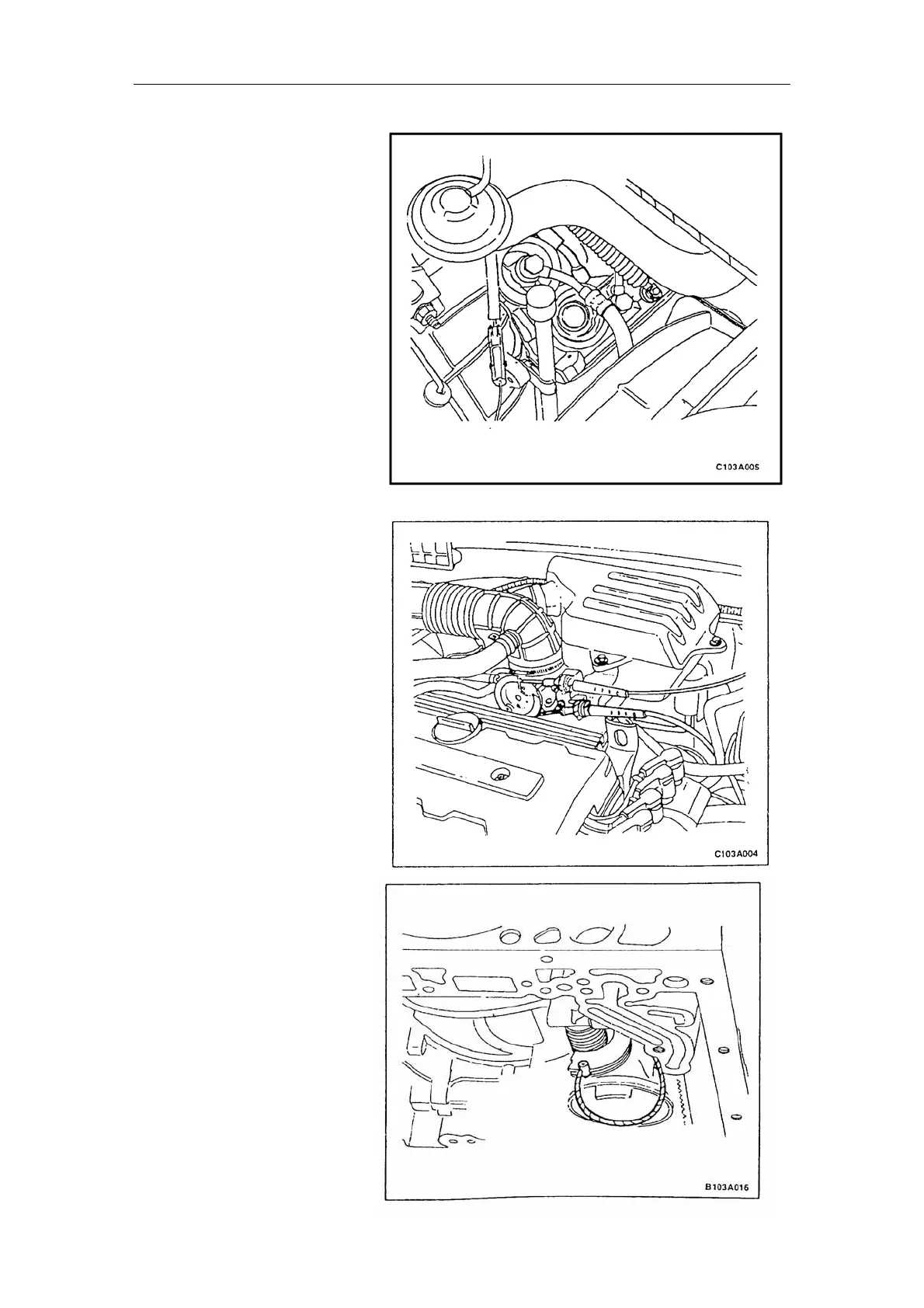

Assembly procedure:
Install the air throttle cable;
2.Install the air throttle cable on
the air throttle’s swing arm;
Lift the vehicle;
Rotate the cam by certain
degree and install the cable;
Install the control valve plate
t;
.Lower the vehicle;
1.
3.
4.
5.
assembly;
6.Install the oil pan and gaske
7
8.Install the battery.
45
