CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

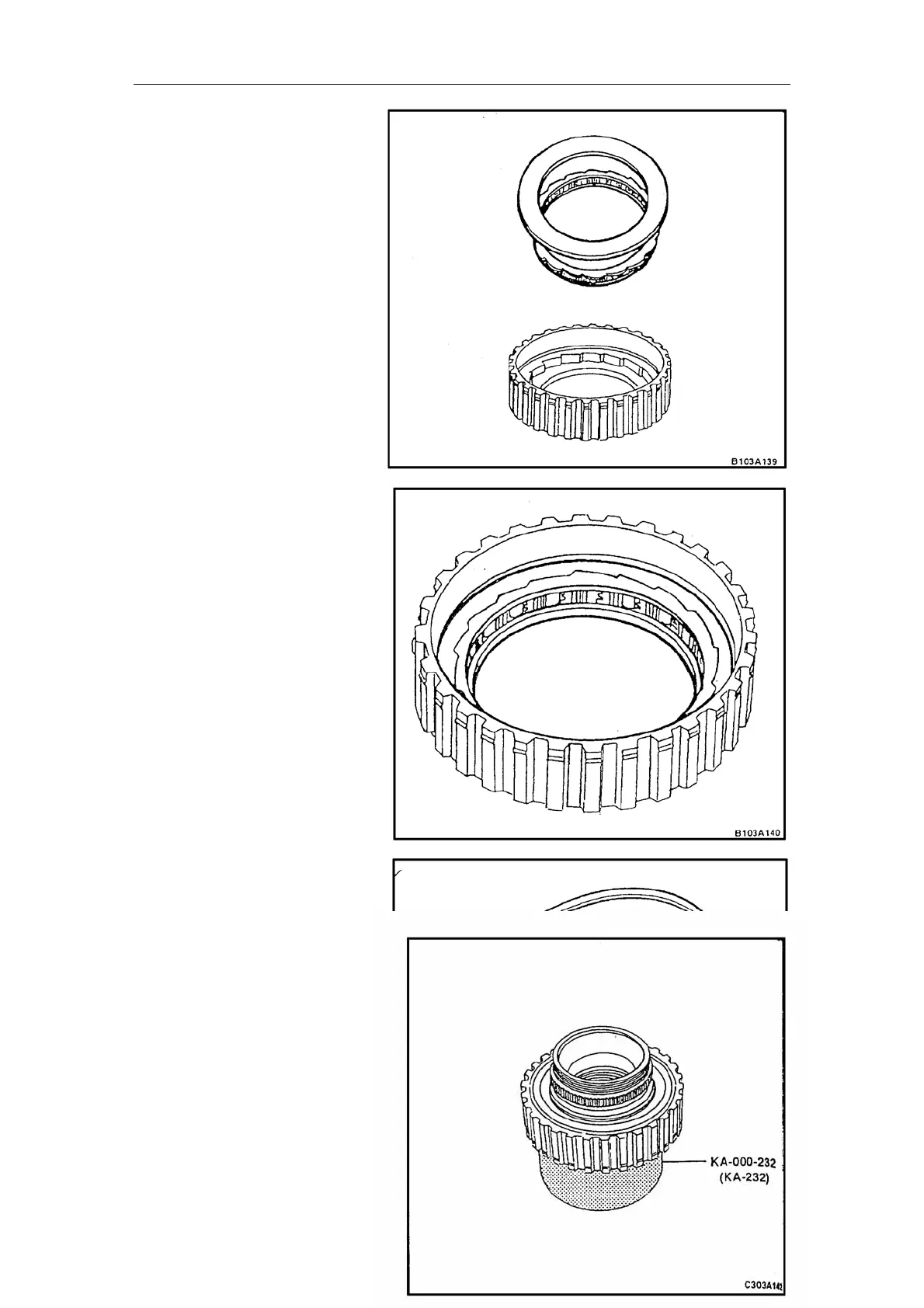

8. Remove the snap ring on 1
st
gear one-way overrun
clutch’s inner racer;
Separate the clutch drum
from the clutch’s inner racer.
ssembly procedure:
Install the one-way overrun
correctly;
Press down the clutch drum;
Install the snap ring on the
one-way overrun clutch’s inner
racer;
9.
A
1.
clutch drum onto the clutch’s
outer racer so that their tooth
forms are engaged
2.
3.
107
To Next Page
