Install the dowel pin of
planetary gear shaft;
Install the differential into the
housing;
Install the assembled
transmission on the vehicle.

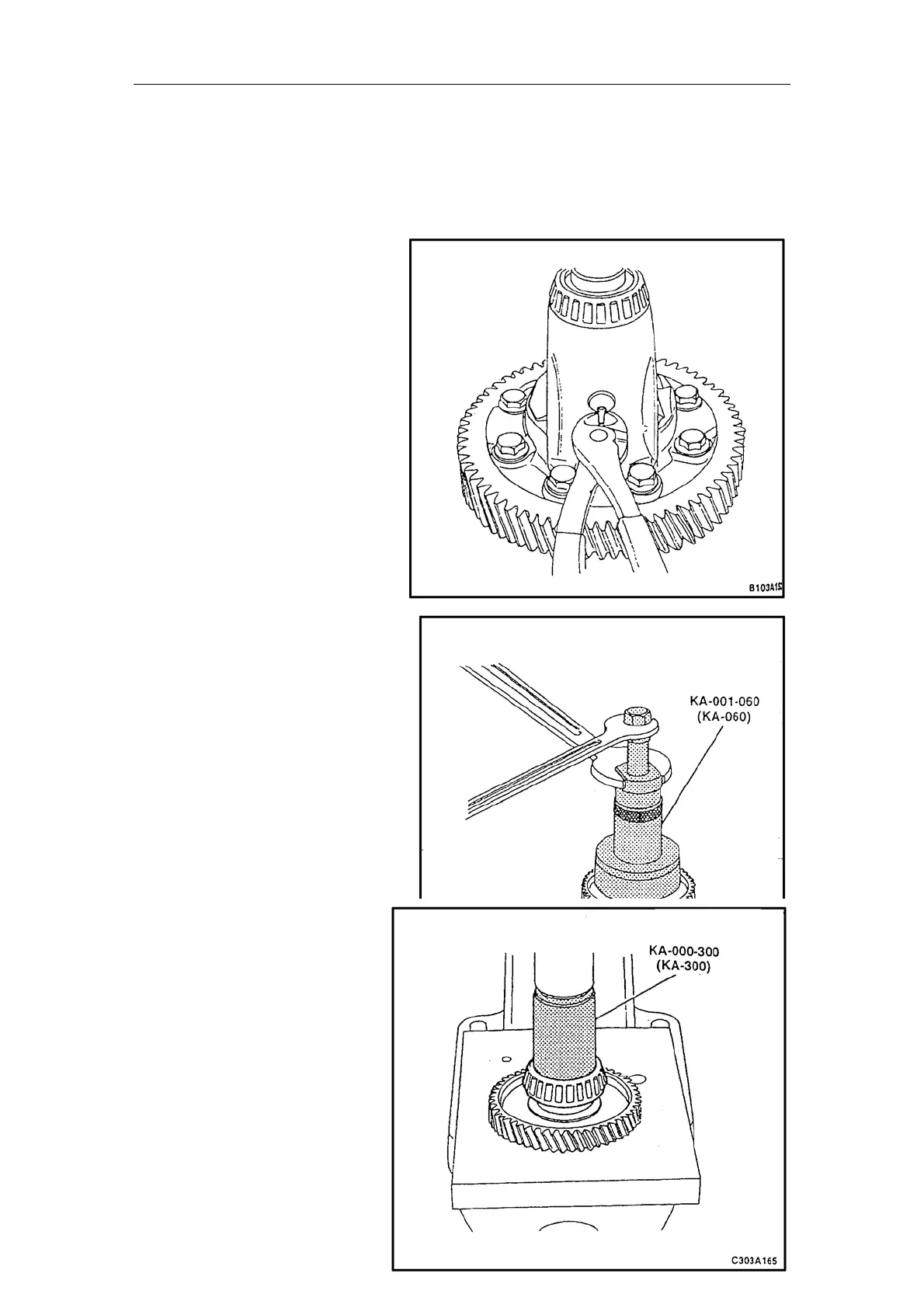

ain back output gear
ecial tool:
A-000-060 bearing remover
A-000-300 bearing assembler
isassembly procedure:
Remove the automatic transmission
assembly from the vehicle;
Remove the main back output gear
from the automatic transmission
assembly;
Remove the tapered roller bearing
with KA-000-060 (bearing
ssembly procedure:
Install the tapered roller
bearing on the main back
output gear with KA-000-300
(bearing assembler);
Install the automatic
transmission on the main back
output gear;
Install the automatic
transmission assembly on the
vehicle.
5. the
6.
7.
M
Sp
K
K
D
1.
2.
3.
remover);
A
1.
2.
3.
