CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

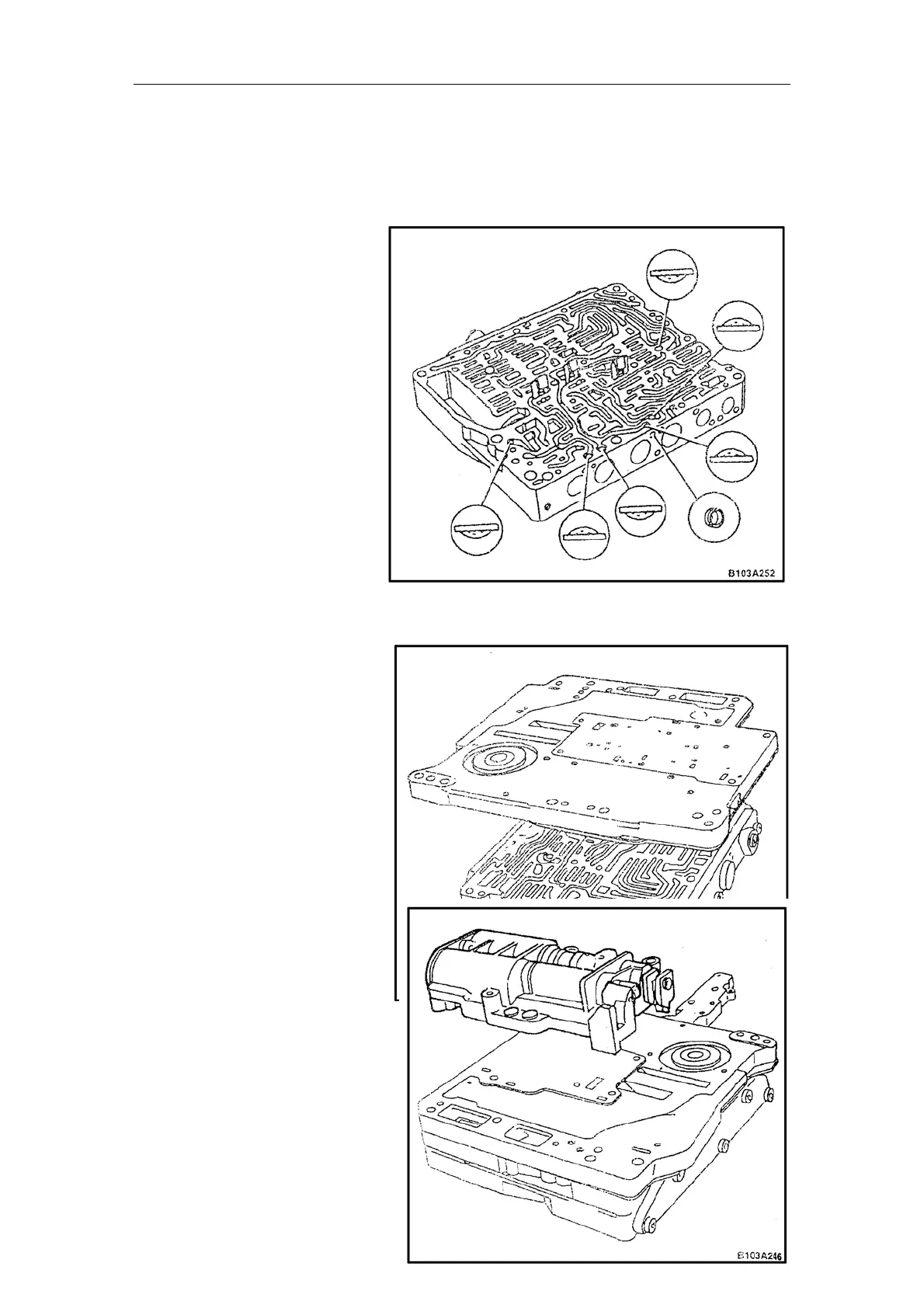

Install the vent valve ball,
lock piece and throttle metal
tab on top side of the main
valve plate;
Turn over the top baffle and
oil circuit board together and
put them on the main valve
plate;
Install the lock piece on
clutch A and clutch D’s
control valve plate;
Install the control valve plate
for clutch A and brake D on
the main valve plate;
3.
4.
5.
6.
129
To Next Page
