CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

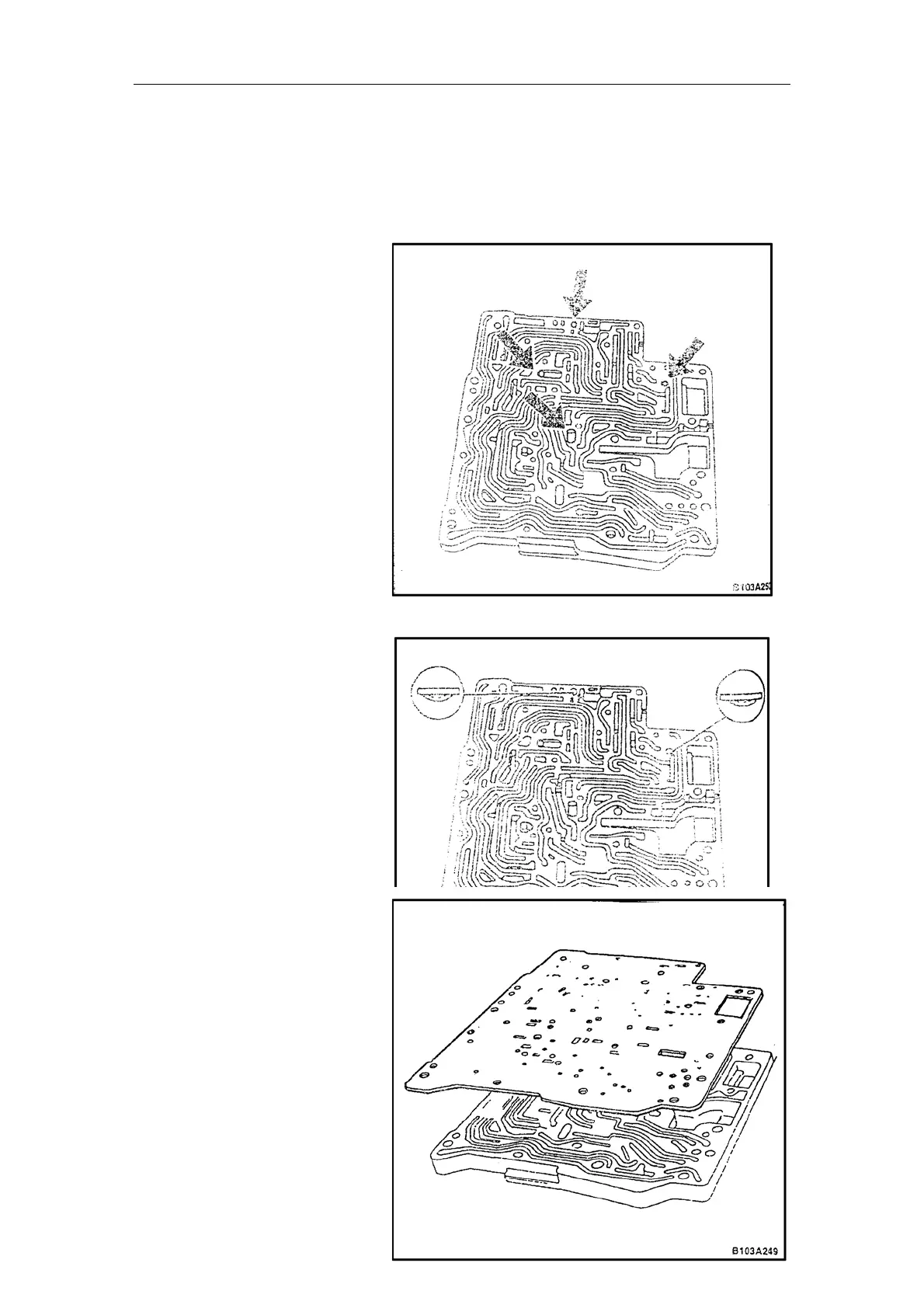

Take off 15. the throttle metal tab,
lock pin and valve ball from
the oil circuit board;
ssembly procedure:
ote: Ensure that each throttle
etal tab is installed to its correct
sition.
Install lock pin, valve ball and
throttle metal tab to their
correct positions on the oil
circuit board.
the oil
A
N
m
po
1.
2. Put the top baffle on
circuit board;
