CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual

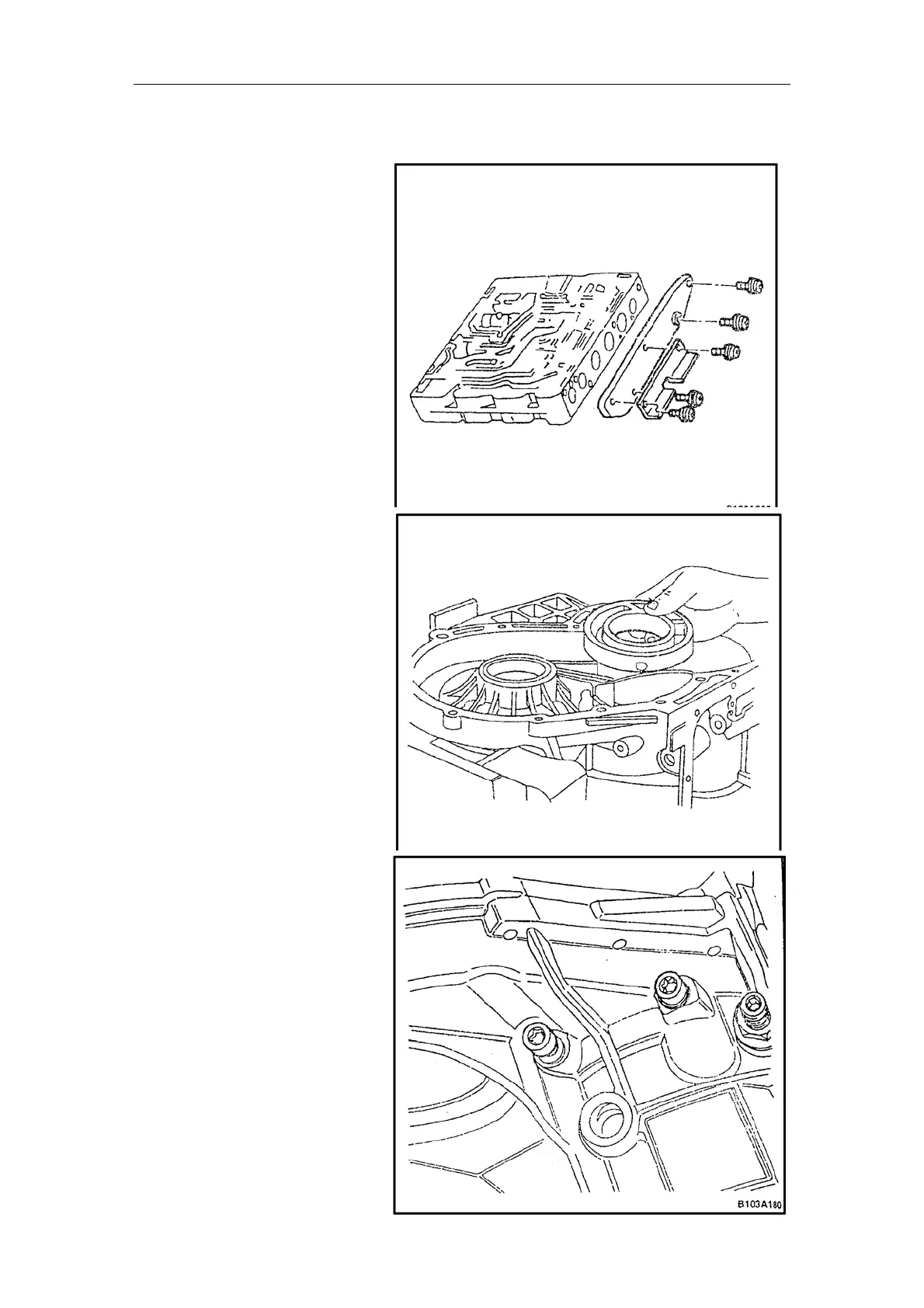

. Install the shuttle valve’s
compression plate and fix it
with bolts: The bolts’
tightening torque: 8Nm
late
assembly;
. Install the valve plate assembly
on the transmission;
. Install the assembled
transmission assembly on the
vehicle;
ransmission assembly
ecial tools:
A-002-008 differential regulator
KA
A-001-483 gap detector
A-001-655 main back output gear
p detector
ssembly procedure:
Install the driven shaft bearing’s
outer racer;
Install the lock bolt on the
driven shaft bearing’s outer
racer; The bolts’ tightening
torque: 20Nm；
16
17. Assemble the valve p
18
19
T
Sp
K
KA-000-155 grooved nut lock unit
-000-288 driven shaft locator
K
K
ga
A
1.
2.
151
