CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual
rque: 50Nm;

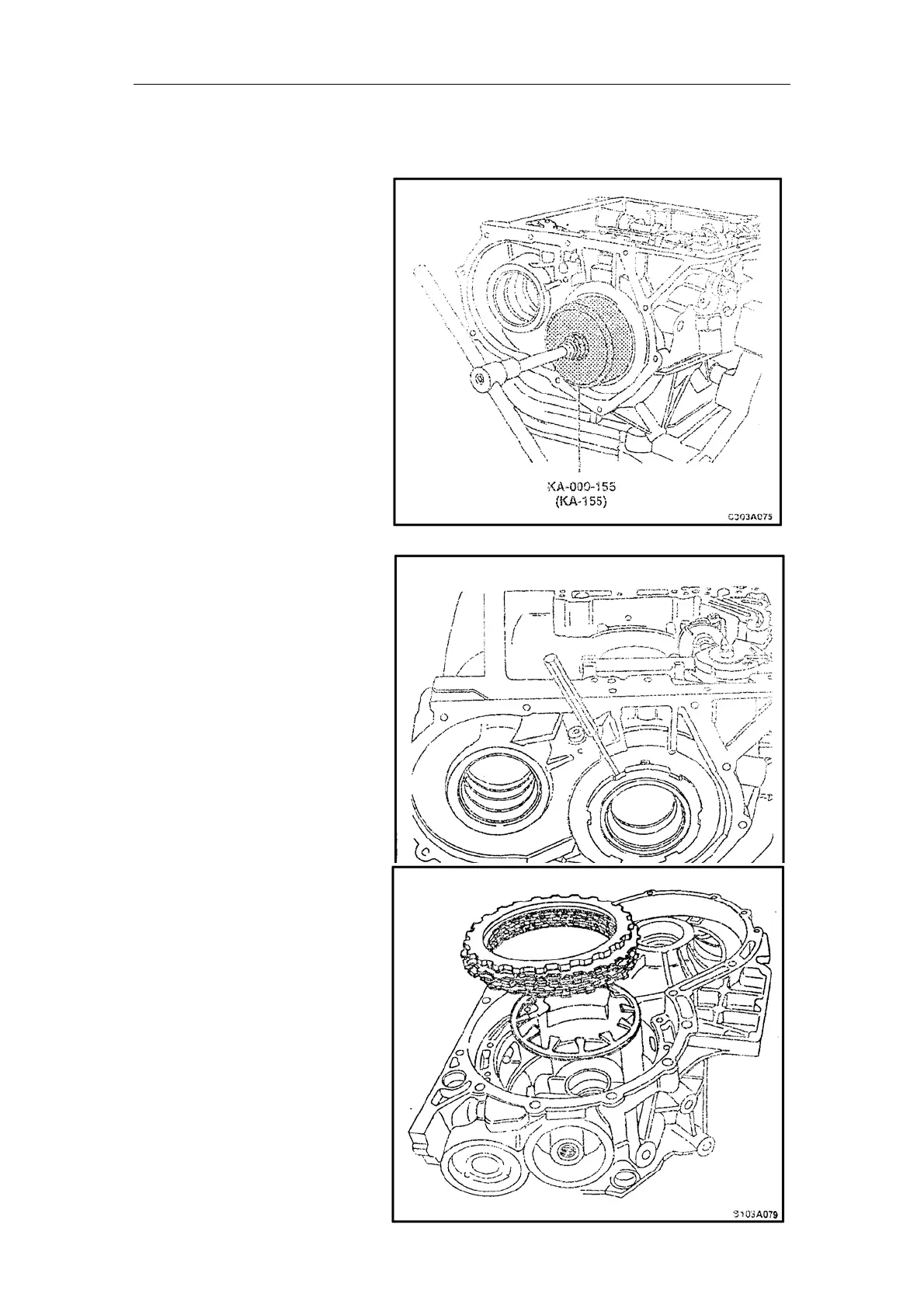

. Bend the protection ring’s
square teeth and lock it on
the grooved nut;
. Turn over the transmission by
90 degree, as shown by the
figure;
. Install the diaphragm spring and
brake D assembly;
9. Install the protection ring and
grooved nut. Lock the grooved
nut: The grooved nut’s
tightening to
10
11
12
153
