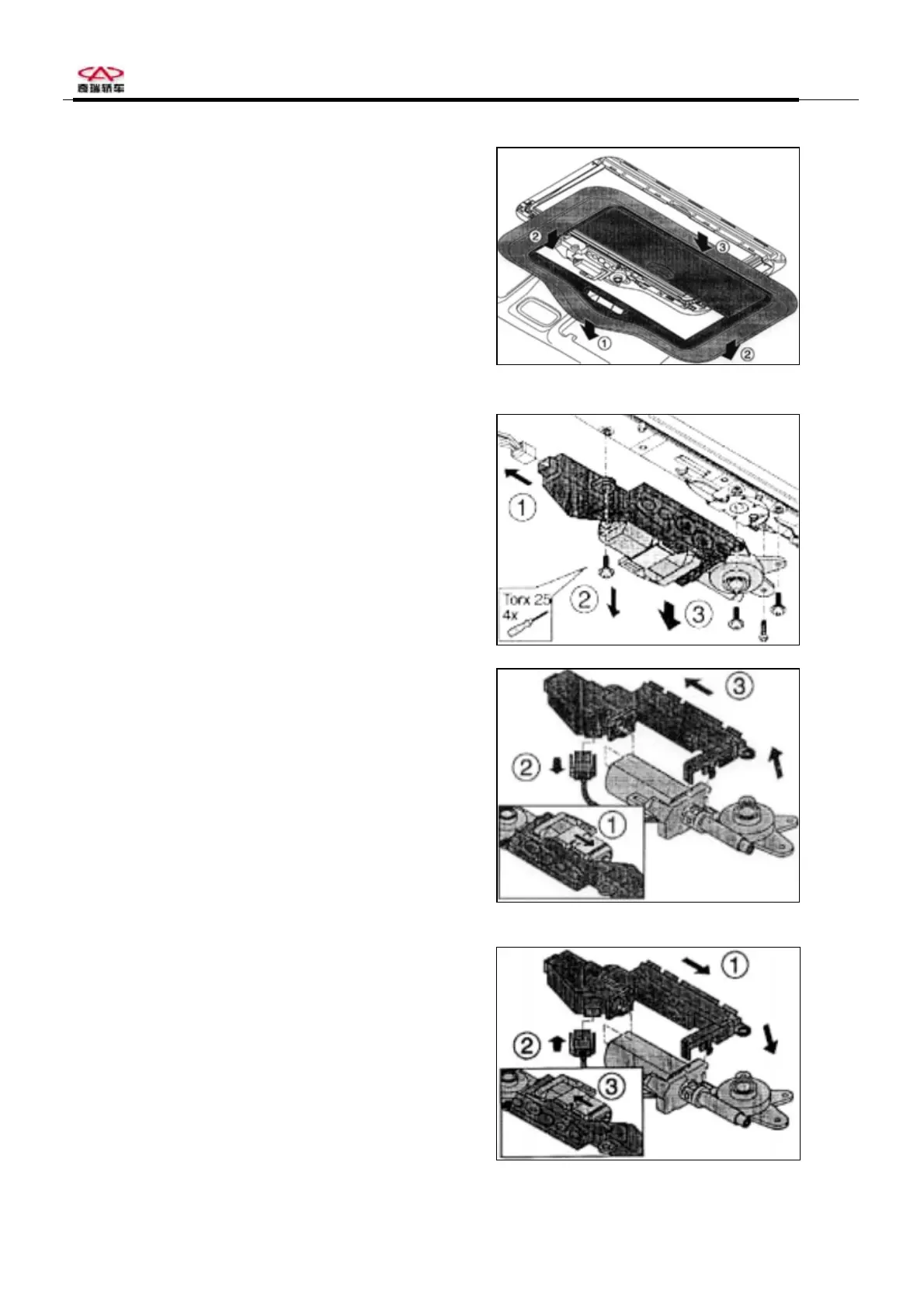

4.1.5 Remove the interior decorative frame (pull it down
in the direction shown in the figure). Take care not
to damage control buttons.
4.1.6 Move the fixing clip toward computer case, unplug
the connection between motor and SCU, then
detach the fixing hook between SCU and motor to
separate motor and SCU for replacement.
4.1.7 Unplug wire harness connecting SCU and remove
the four fixing bolts to take off motor and SCU.
4.1.8 Install new motor and SCU in the reverse order in
step 7.
