Maintenance Manual for Chery·Windcloud．．．．．．．．．．．．．．．．．．．．．．．．．．Sunroof

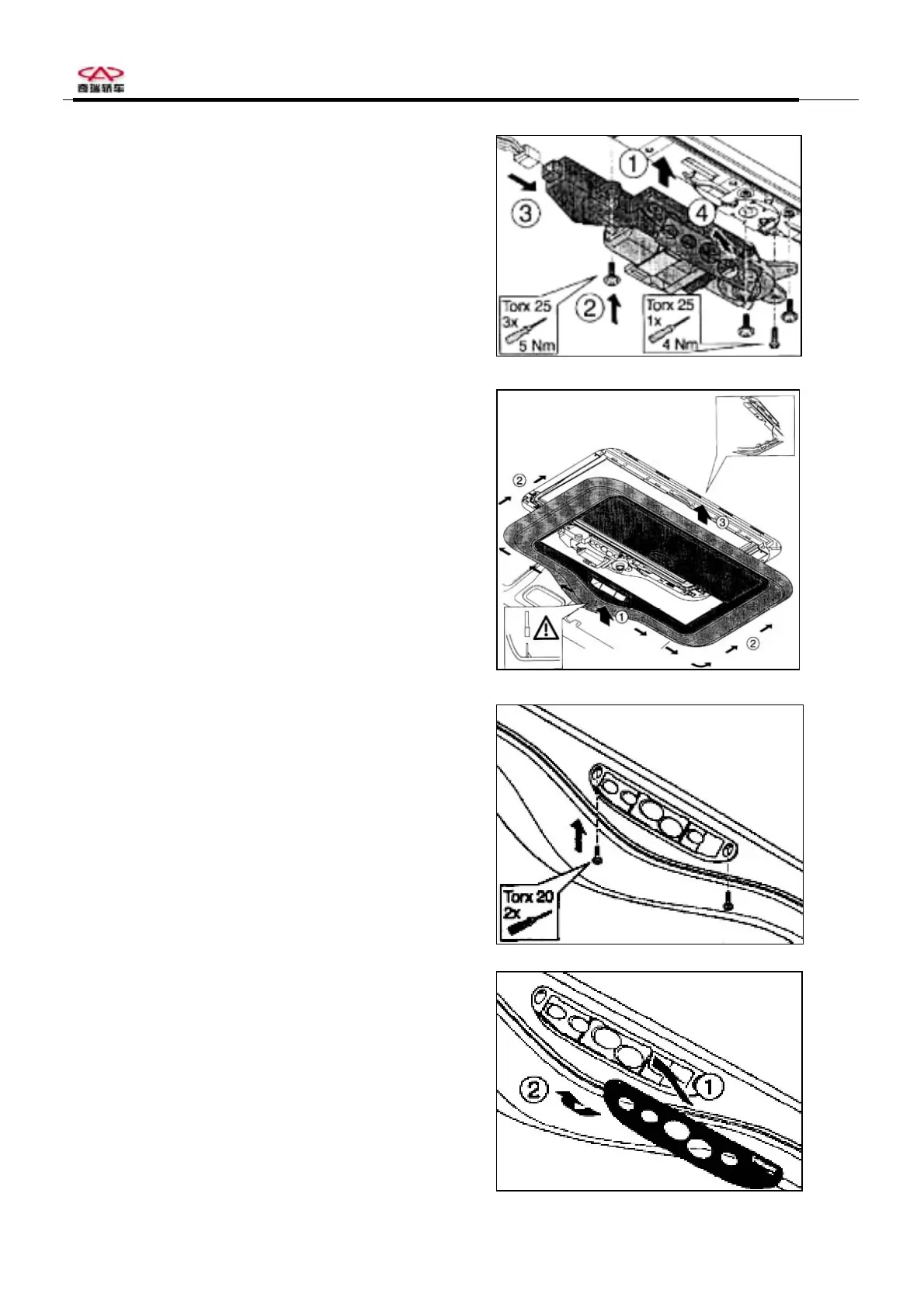

4.1.9 Proceed with installation in the reverse order in
step 6.
Pay attention to the engagement between motor
driving shaft and gear.
4.1.10 Fix interior decorative frame (push it up in the
direction shown in the figure with clip aligned
with clip slot). Add an under-laying strip if
necessary.
4.1.11 Tighten the fixing bolts of interior decorative
frame.
4.1.12 Fix control panel cover plate.
Page 10 of 37
