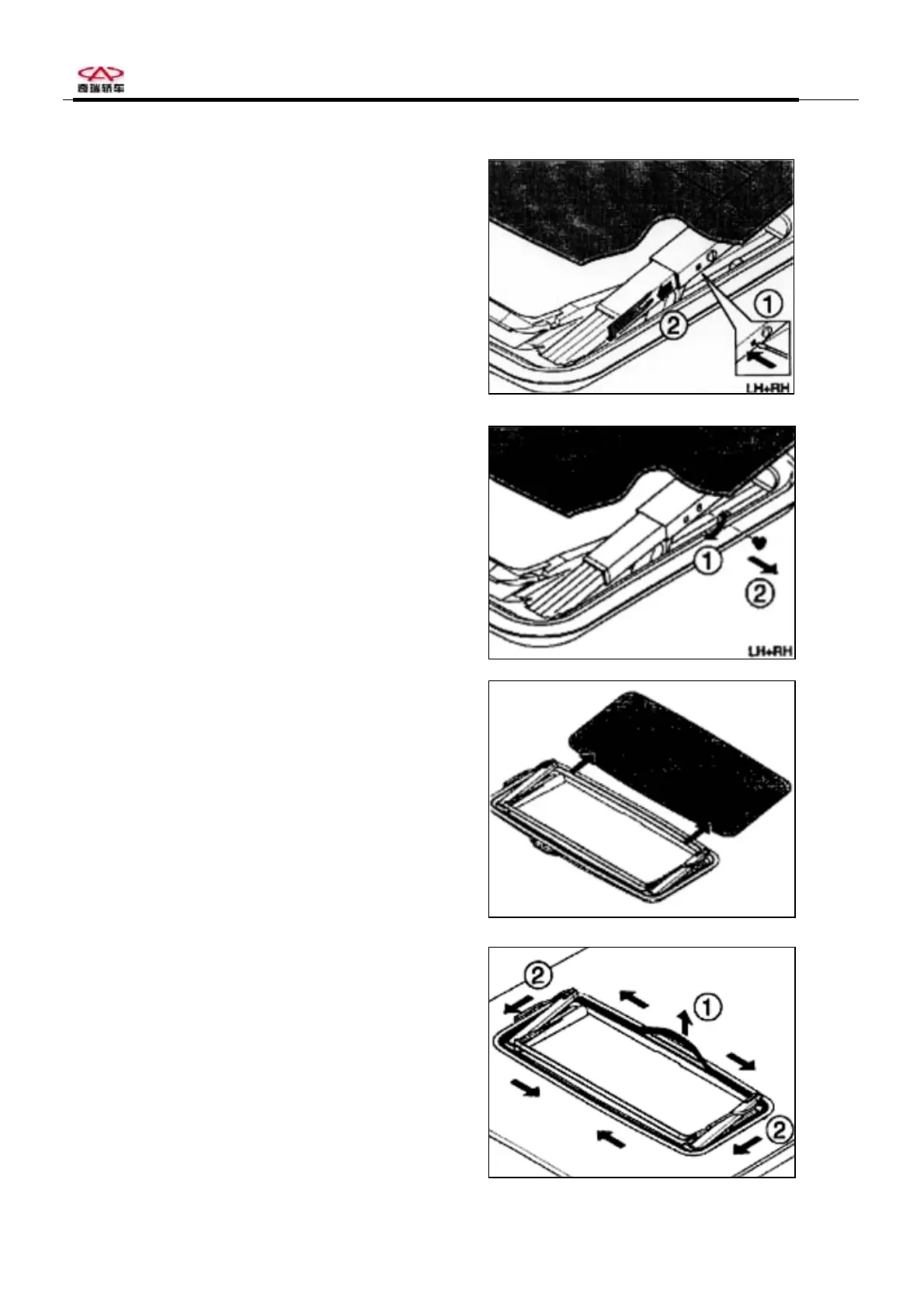

4.4.2 Detach the glass plate lock pin from fixed driving
base with a screwdriver as shown in the figure,
then take off lock pin (the same with the other
side).
4.4.3 Turn the glass plate fixing pin clockwise to a 90º
position with a minus screwdriver and take it off
(the same with the other side).
4.4.4 Carefully pull the glass plate out of mechanism
group with both sides being parallel.
4.4.5 Take off the worn rubber sealing strip from the
middle part of front end of sunroof frame with a
minus screwdriver.
