Maintenance Manual for Chery·Windcloud..........................Sunroof
4.4.6 Remove the residual sealant and clean the slot.
Assembling procedure

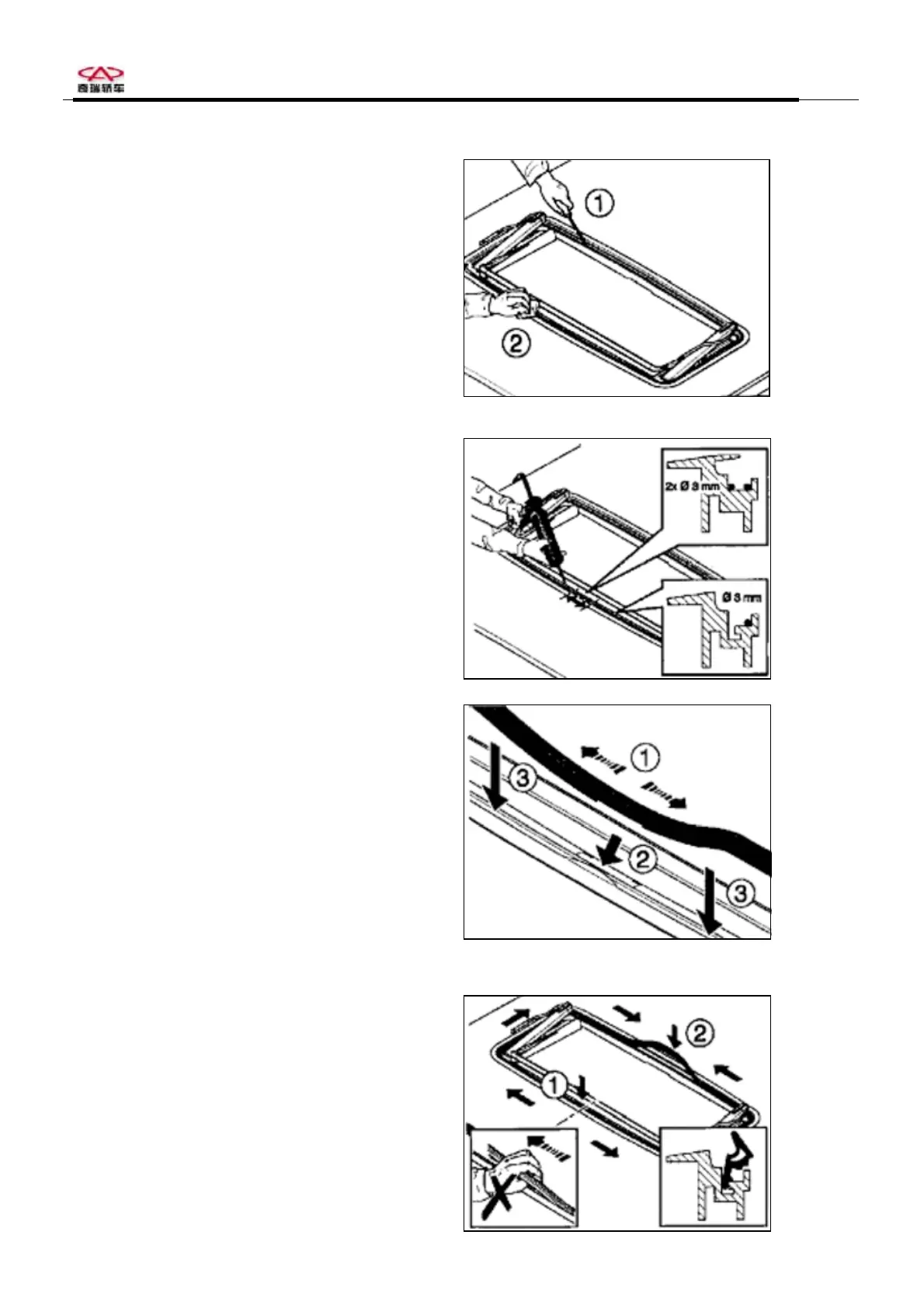

4.4.7 Apply a layer of silica gel with diameter of 3mm on
the edge of upper frame, and apply two layers
under glass plate holding piece.
4.4.8 Place the new rubber sealing strip on the upper
frame with the concaved center of sealing strip
aligned with the center of glass plate holding piece.
Carefully stretch this part of sealing strip when
installing.
4.4.9 Push the sealing strip 1mm into the slot in such
order: middle front, both sides, then rear. Note: do
not stretch rubber sealing strip.
Page 19 of 37
