SQR7080 Service Manual 372 Engine Mechanical System
Chery Automobile Co., Ltd

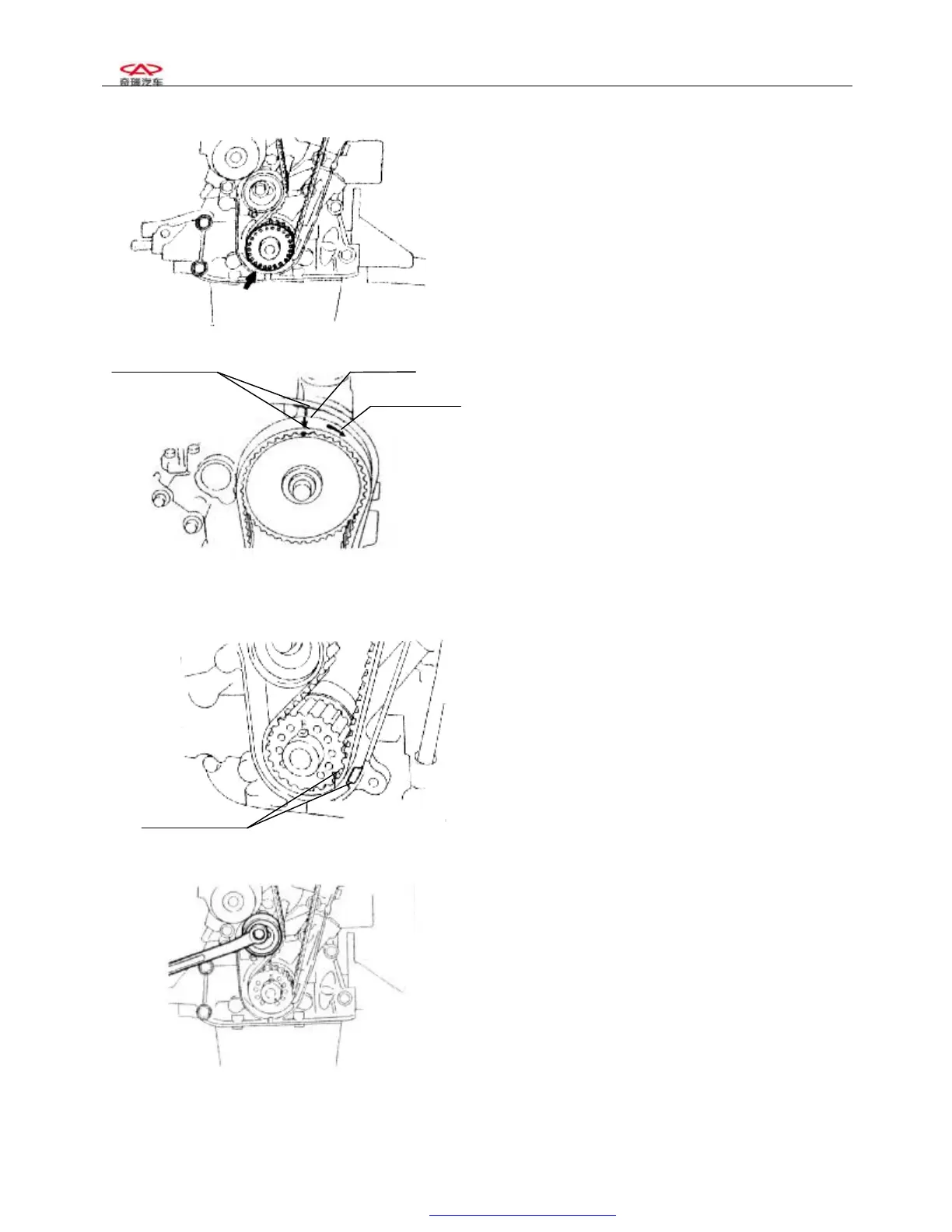

Remove timing cover cap
Torque: 6±1N.m
Remove timing pulley damper
Remove the tensioner
（１）Carry out the operation at the upper thrust point
of compression of the first cylinder piston
(2) After removing the timing cover cap, turn the bolt
and rotate the timing gear clockwise with wrench,
align timing mark of camshaft timing gear with the
cam mark of camshaft cover cap;
Attention: You can rotate the engine clockwise only,
after installing the pulley;
Before removal, make a arrow mark on the position of
timing mark, assemble according to original state.
(3) Make sure that the crankshaft timing pulley wheel
mark is aligned with the mark of the oil pump.
(4) Remove the tensioner bolt, and take off the
tensioner
Timing mark
Timing mark
Clockwise
Do“mark”
