Chevrolet Volt Owner Manual - 2011
Vehicle Care 10-39

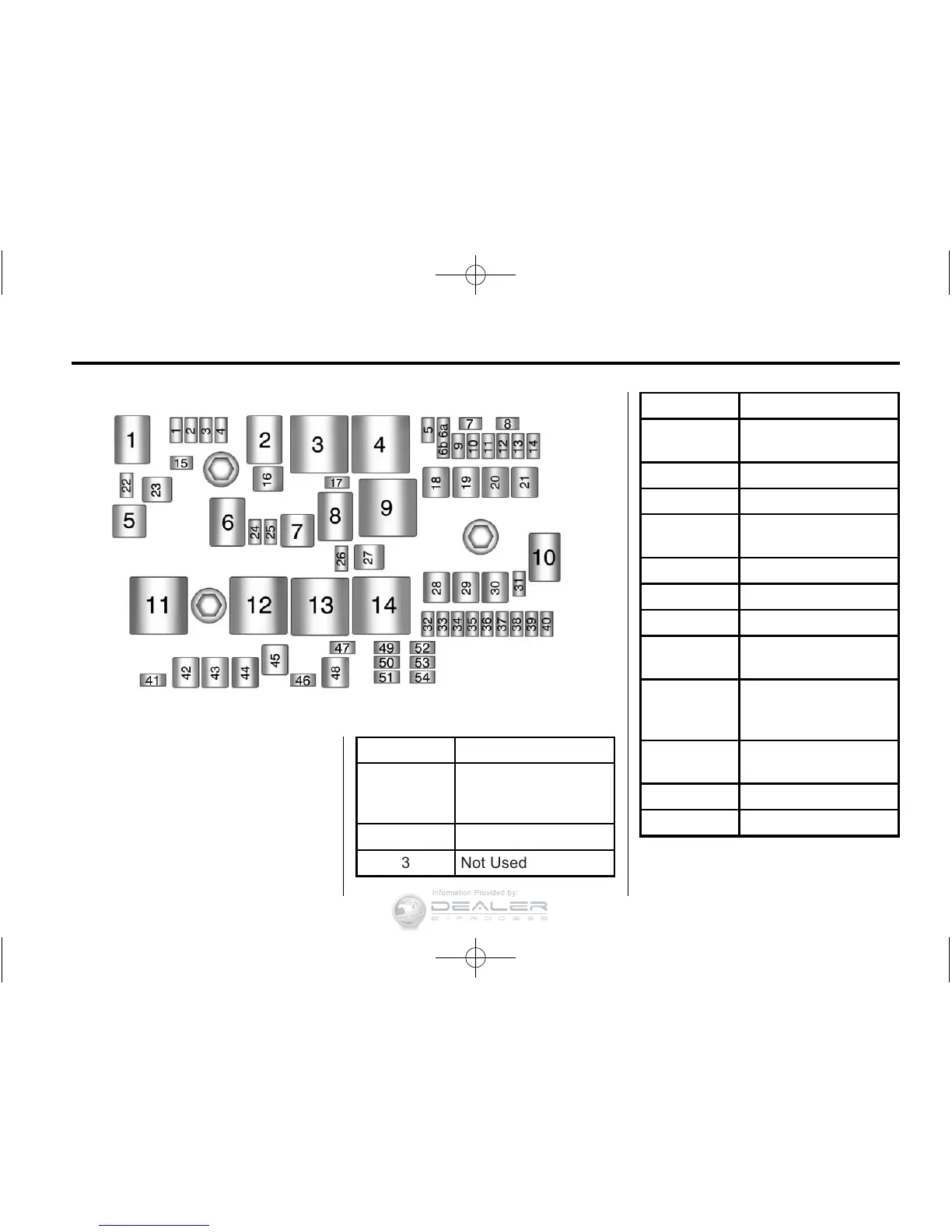

Engine Compartment Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Mini Fuses Usage
1
Engine Control
Module – Switched
Power
2 Emissions
3 Not Used
Mini Fuses Usage
4
Ignition
Coils/Injectors
5 Empty
6a Empty
6b
Rear Defogger
(Lower Grid)
7 Empty
8 Empty
9 Heated Mirrors
10
Air Conditioning
Control Module
11
Traction
Power Inverter
Module – Battery
12
Cabin Heater Pump
and Valve
13 Empty
14 Empty
