[DB600] General instruction manual
- 115 -
SV: Setting value MV: Output value
AL: Event value db: Event dead-band
Event output range with "Event standby" set
Normal event output range
Event activation range

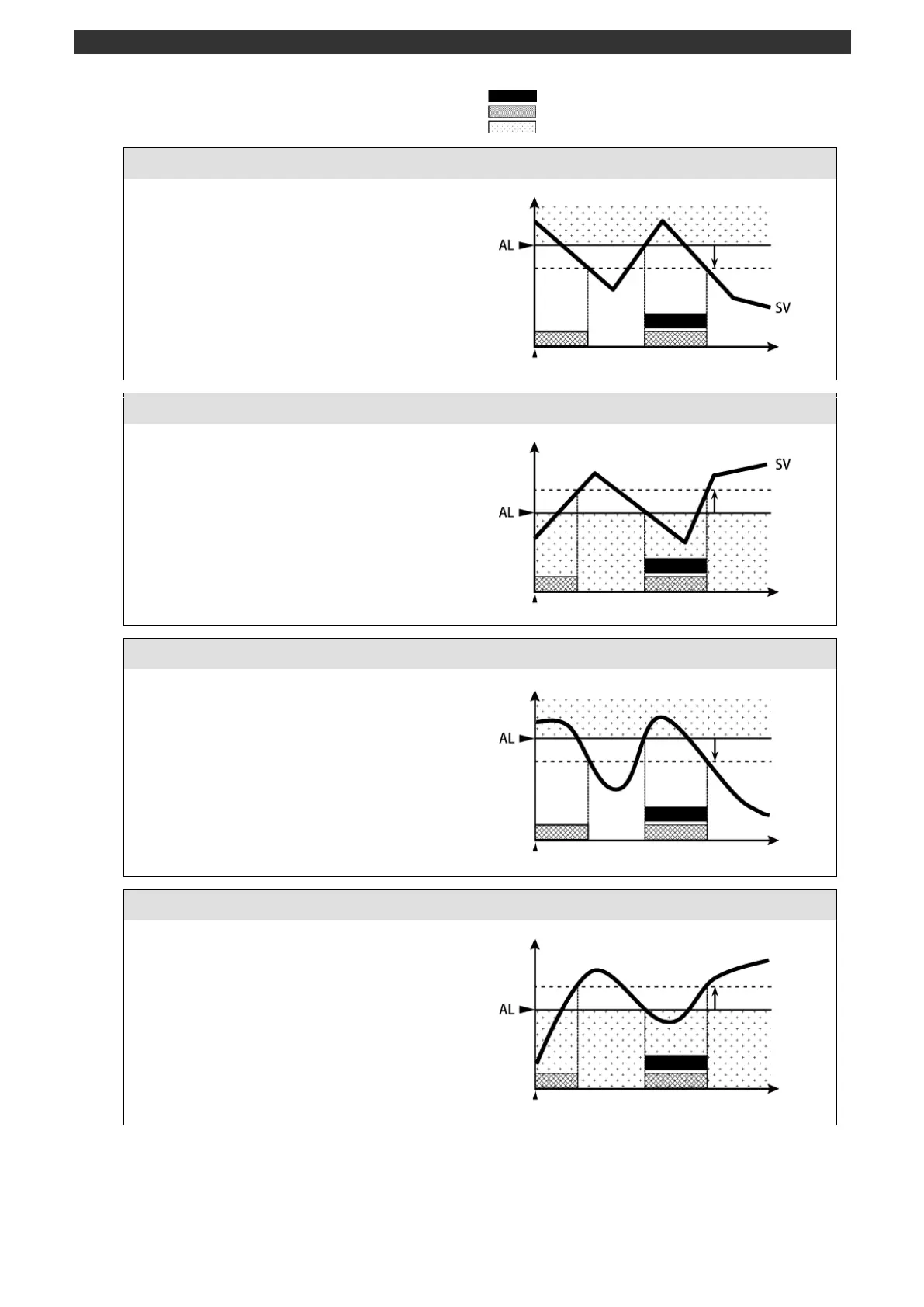

Setting value upper limit alarm
Upper limit alarm against a setting value (SV).
 Activation condition
AL < SV
 Keep condition
AL - db < SV ≤ AL
 Reset condition
SV ≤ AL - db
Setting value lower limit alarm
Lower limit alarm against a setting value (SV).
 Activation condition
AL > SV
 Keep condition
AL ≤ SV < AL + db
 Reset condition
SV ≥ AL + db
Output value upper limit alarm
Upper limit alarm against an output value.
 Activation condition
AL < MV
 Keep condition
AL - db < MV ≤ AL
 Reset condition
MV ≤ AL - db
Output value lower limit alarm
Lower limit alarm against an output value.
 Activation condition
AL > MV
 Keep condition
AL ≤ MV < AL + db
 Reset condition
MV ≥ AL + db
Event dead-band (db)
Power-ON
Event dead-band (db)
Power-ON
Event dead-band (db)
Power-ON
MV
Event dead-band (db)
Power-ON
MV
