Chino DB670 User Manual

[DB600] General Instruction Manual
- 16 -

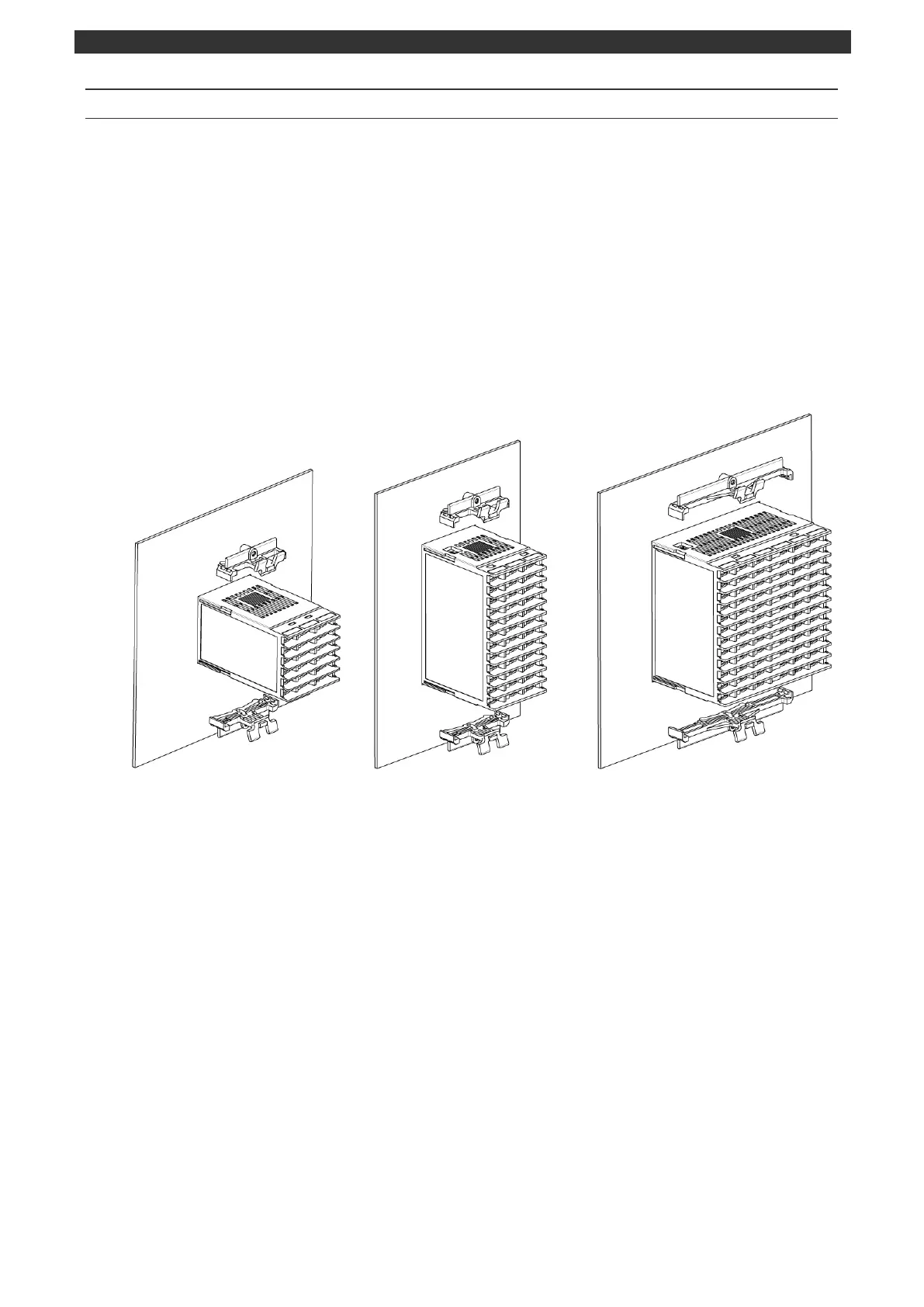

2-2 Mounting
Confirm the mounting slot 1.
(1) Mounting slot is located at two locations, the top and the bottom of the instrument.
Assemble into the panel 2.
(1) From terminal board side, put the instrument into the panel cutout angular hole.
For the waterproof specifications, put attached water-proof packing first then put it into the
angular hole.
(2) Prepare attached mounting brackets (2 pieces). Insert mounting claw to the mounting slots (2
locations; top and bottom) and push it into the panel.
Fix the instrument
3.
(1) Push the mounting brackets into the panel side and fix them.
【DB630】 【DB650】 【DB670】

Chino DB670 Specifications

General

Brand	Chino
Model	DB670
Category	Controller
Language	English
