[DB600] General Instruction Manual MODE 3
- 81 -
5-5 MODE3 [Group parameter]
5-5-1 Setting overview
MODE3 provides the settings for main control parameters.
8 parameters are grouped as one, and you can register an execution No.
When constant value operation and each step of program pattern is performed, a group parameter can be
used.

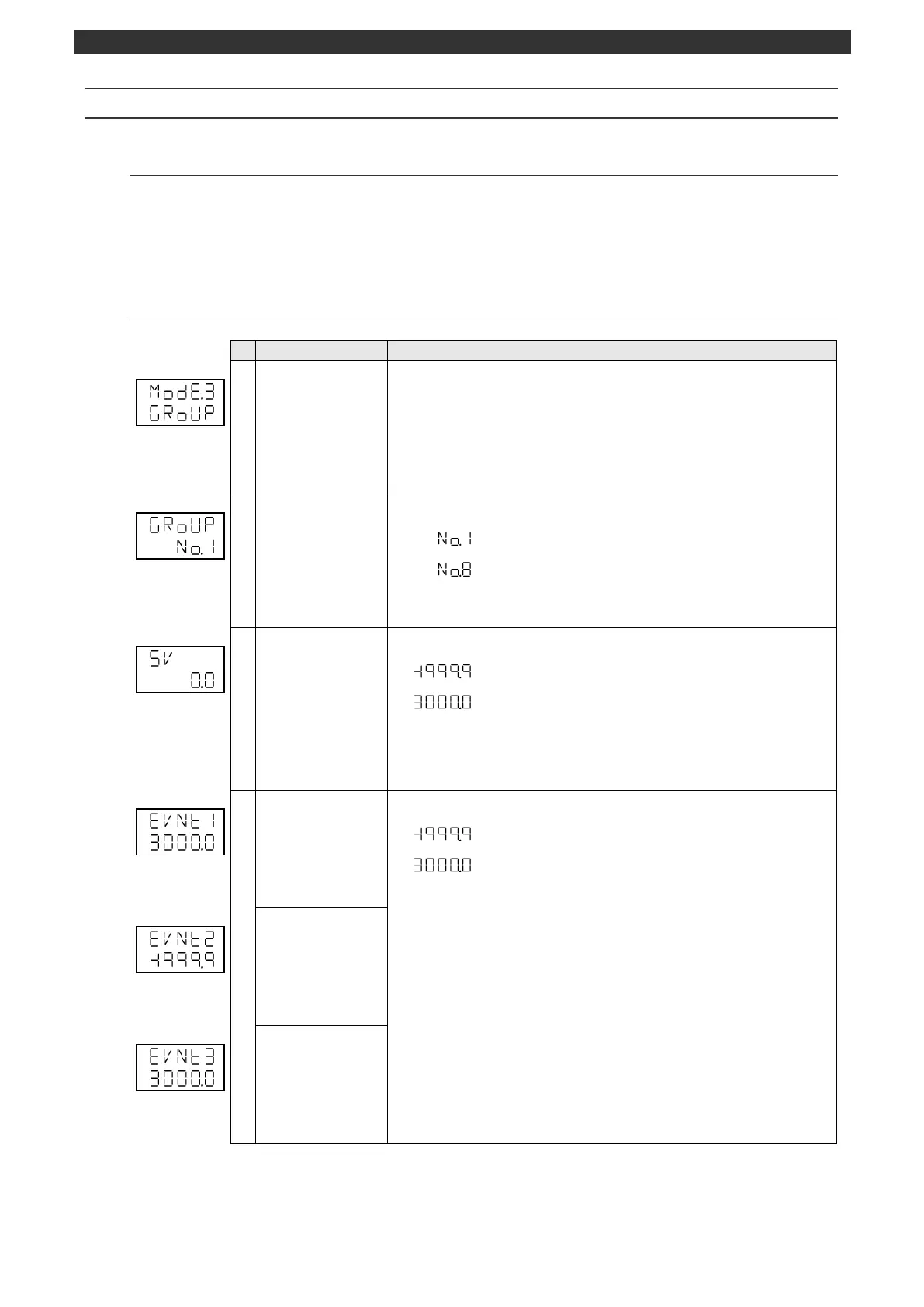

5-5-2 Setting screen and function
Setting item
Function
▲ SEL ↑ ↓ ▼ SEL
Initial screen
MODE3 initial screen
(Group parameter)
MODE3 (group parameter) initial screen
Pressing the [

] key makes a switch to the MODE2 or MODE1 screen.
Pressing the [

] key makes a switch to the MODE4 screen.
No parameter is set by the [ENT] key.
[Switch to operation initial screen]
Press and hold the [MODE] key to display the screen set on the MODEt operation
initial screen.
□□
▲ SEL ↑ ↓ ▼ SEL
Group
No.
Group No.
(No. for 8 types)
Sets the group No. for parameters in MODE3.
"
□□
"
to
"
□□
"
Parameter No. for 8 types
Use the [

] or [

] key to switch the group No.
No parameter is set by the [ENT] key.
□□□
□□□
▲ SEL ↑ ↓ ▼ SEL
SV
SV for constant value
operation, 8 types
Sets the SV for constant value operation for 8 types.
" "
to
" "
SV for constant value operation
* The setting range is limited by "SV limiter (MODE5)".
Use the [

], [

] and [ENT] keys to set the SV for constant value operation for 8
types.
Use the [>] key to move the cursor to the right digit.
Set the numbers for 8 types at "Group No. (MODE3)".
▲ SEL ↑ ↓ ▼ SEL
Event
Event 1 (8 types)
Set the event for 8 types.
" "
to
" "
Event value
Use the [

], [

] and [ENT] keys to set the event 1 to 4 for 8 types.
Use the [>] key to move the cursor to the right digit.
Set the numbers for 8 types at "Group No. (MODE3)".
▲ SEL ↑ ↓ ▼ SEL
Event 2 (8 types)
▲ SEL ↑ ↓ ▼ SEL
Event 3 (8 types)
