[DB600] General instruction manual
- 116 -
AL: Event value db: Event dead-band
Even output range
Event activation range

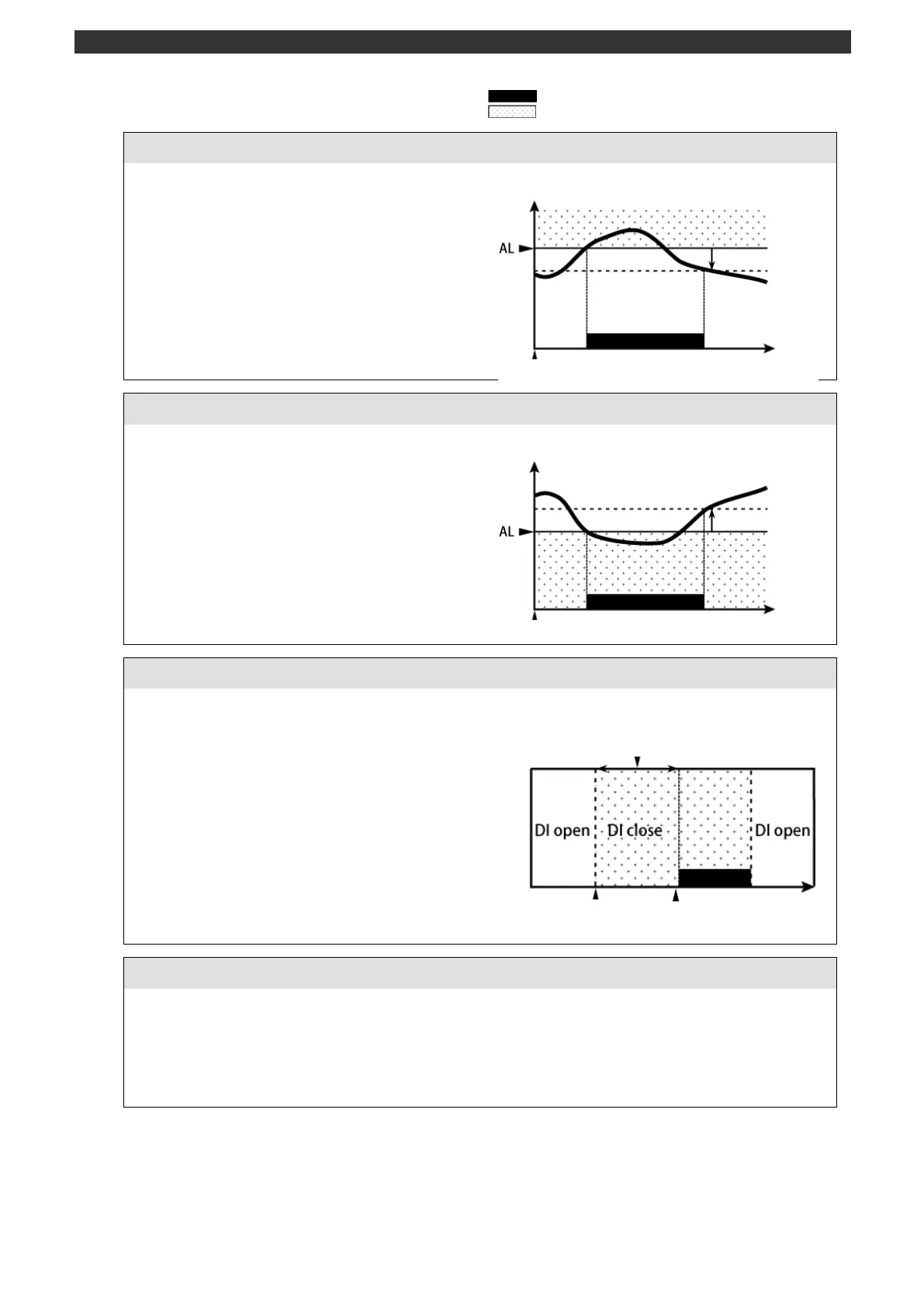

Heater upper limit alarm (heater overcurrent alarm)
Event output when heater overcurrent occurs.
A current transformer (CT) is used to detect heater overcurrent.
 Activation condition
AL < CT
 Keep condition
AL - db < CT ≤ AL
 Reset condition
CT ≤ AL - db
Heater lower limit alarm (heater disconnection alarm)
Event output when heater disconnection occurs.
A current transformer (CT) is used to detect heater disconnection.
 Activation condition
AL > CT
 Keep condition
AL ≤ CT < AL + db
 Reset condition
CT ≥ AL + db
Timer alarm
Event output after a specified period of time.
Set the timer time and DI (external signal input).
 Activation condition
Produce an event output when a timer set time has
passed after DI ON (conduction state).
 Reset condition
DI is turned OFF (non-conduction state).
* "Timer 1" and "Timer 2" should be assigned to DI
with "External input (MODEd)" (see the section
5-13
).
FAIL alarm
Event output when an error occurs in the
instrument.
 Activation condition

A/D conversion error

Calibration data error

Over range, under range
CT
current
Event dead-band (db)
CT
current
Event dead-band (db)
Event-ON
Timer set time
Timer activated
