[DB600] General Instruction Manual MODE 2
- 77 -
□
▲ SEL ↑ ↓ ▼ SEL

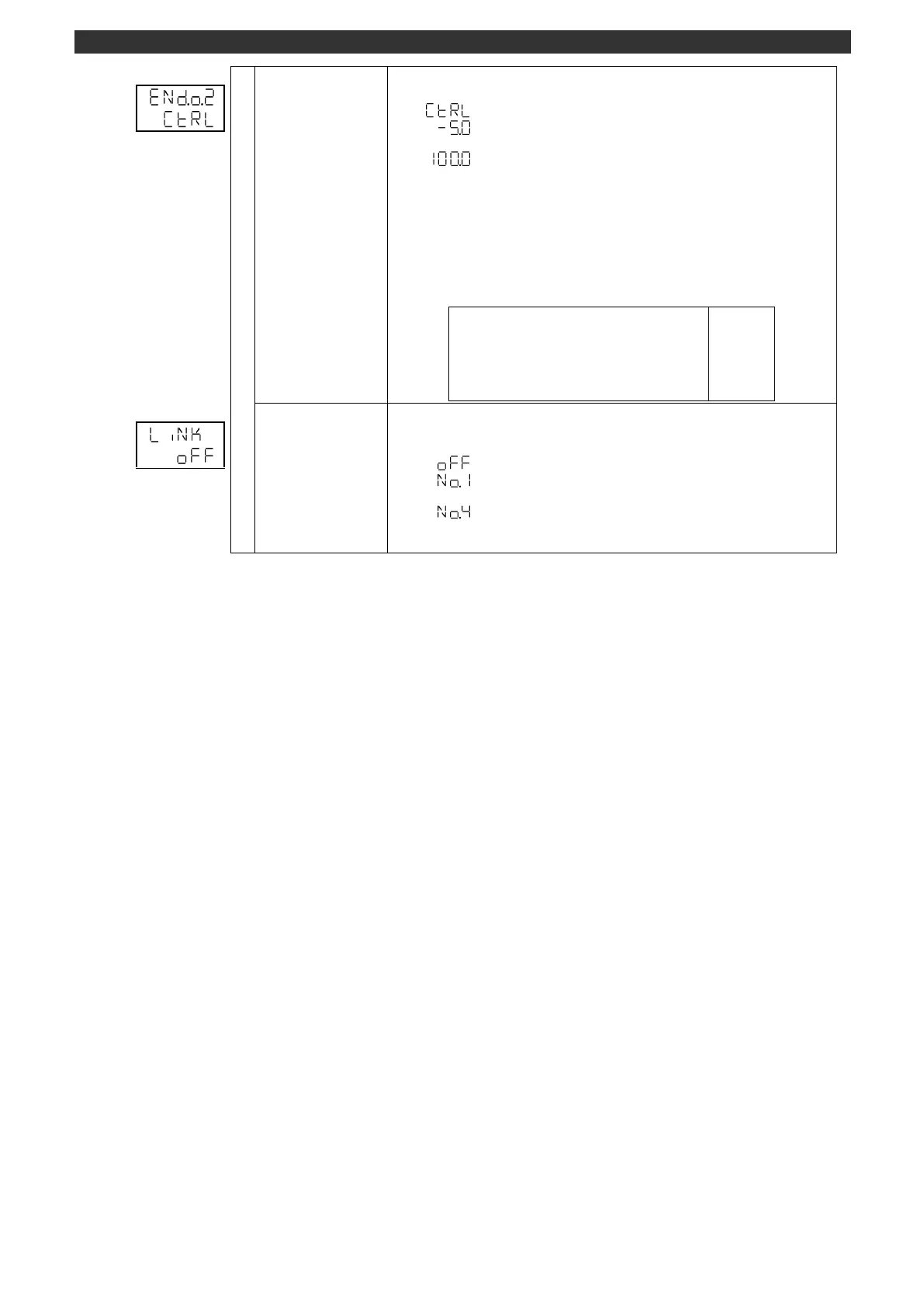

Output 2 at END
Sets the output 2 in the program operation END status.
"
□
"
Constant value control performed with the displayed SV
"
□□
"
to
"
□
"
Fixed value output [%]
This display is available for the specification with 2 outputs.
Use the [

], [

] and [ENT] keys to set the output 2 at END.
Use the [>] key to move the cursor to the right digit.
This does not function in a pattern to which a pattern link is set.
For the case the pattern repeat has been set, this function is executed after the
repeat operation finishes.
The order of priority for output parameters are shown below.
Preset manual output by external signal input
↑ (High)
Priority
↓ (Low)
MANUAL output
RESET output (fixed to 0%)
PV abnormal output (fixed to 0%)
END output
AUTO output
□
□□
▲ SEL ↑ ↓ ▼ SEL
Linked pattern No.
A pattern No. can be linked (connected) to another pattern No. You can create an
endless program by linking to the pattern No. that starts operation.
" "
No pattern link (connection)
" "
to
" "
Linked (connected) to pattern No. 1
to
Linked (connected) to pattern No. 4
Use the [

], [

] and [ENT] keys to set the linked pattern No.
