Chino DB670 User Manual

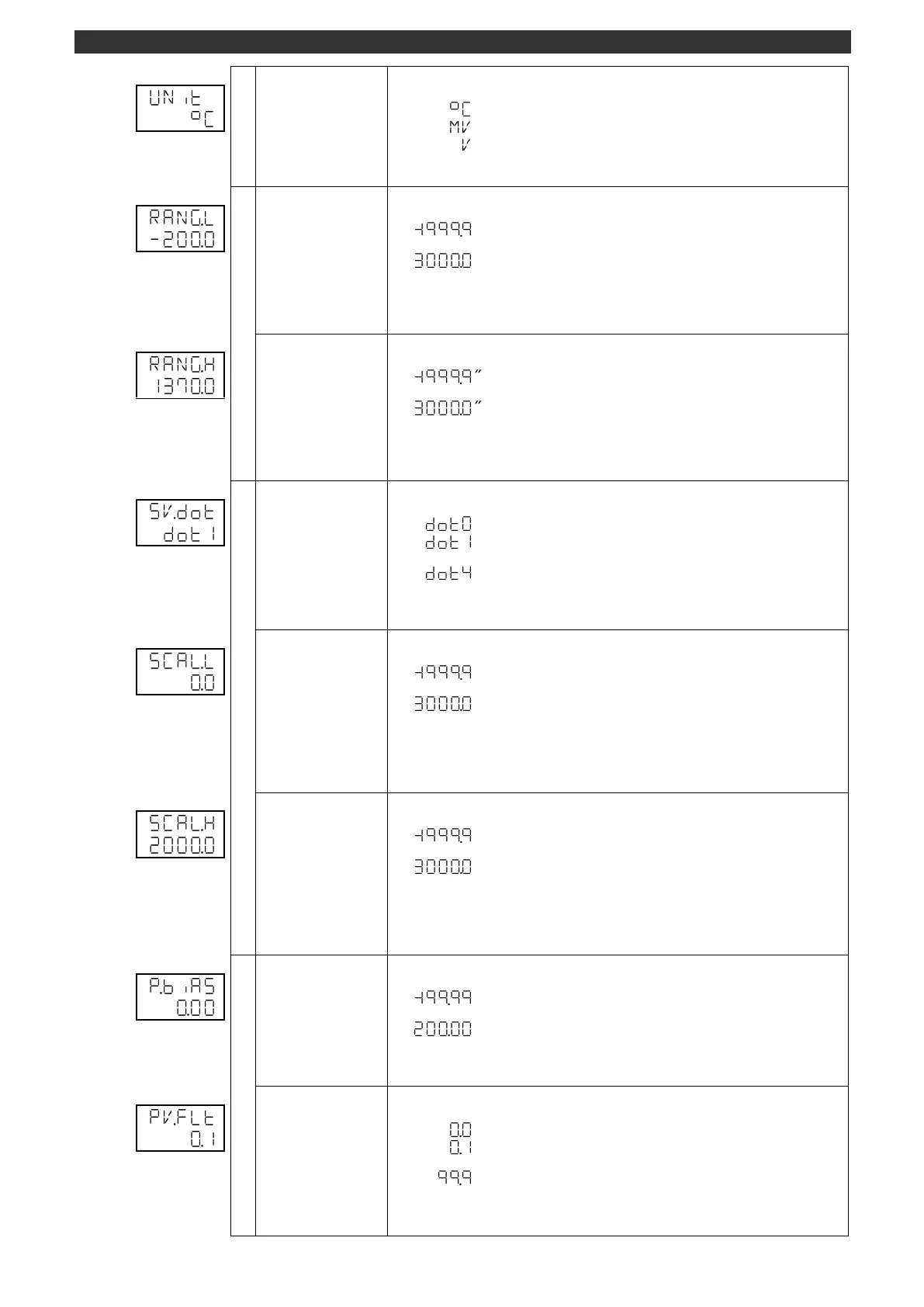

[DB600] General Instruction Manual MODE 5
- 88 -
□
□□□
▲ SEL ↑ ↓ ▼ SEL
Unit
Checks the unit.
"□□□ "
ºC
"□□□ "
mV
"□□□□ "
V
No parameter is set/changed by the [], [] and [ENT] keys.
▲ SEL ↑ ↓ ▼ SEL
Measuring range
Measuring range lower
limit
Sets the lower limit of measuring range.
" "
to
" "
-1999.9 to 3000.0
* The unit can be ºC, V or mV.
Setting range differs depending on the input type.
Use the [], [] and [ENT] keys to set the lower limit of measuring range.
Use the [>] key to move the cursor to the right digit.
In the range of lower limit < upper limit can be set.
▲ SEL ↑ ↓ ▼ SEL
Measuring range upper
limit
Sets the upper limit of measuring range.
"
to
"
-1999.9 to 3000.0
* The unit can be °C, V or mV.
Use the [], [] and [ENT] keys to set the upper limit of measuring range.
Use the [>] key to move the cursor to the right digit.
In the range of lower limit < upper limit can be set.
□
▲ SEL ↑ ↓ ▼ SEL
Linear scale
Linear scale decimal
point
(Linear input)
Sets the decimal point for linear scale.
"□ "
No decimal point
"□ "
to
"□ "
1 to 4 digits after decimal point
The display appears when the input type is linear input (mV, V).
Use the [], [] and [ENT] keys to set the decimal point for linear scale.
□□□
▲ SEL ↑ ↓ ▼ SEL
Linear scale zero
(Linear input)
Sets the linear scale zero.
" "
to
" "
-1999.9 to 3000.0
The display appears when the input type is linear input (mV, V).
Use the [], [] and [ENT] keys to set the linear scale zero.
Use the [>] key to move the cursor to the right digit.
The setting can be either zero < span or zero > span.
▲ SEL ↑ ↓ ▼ SEL
Linear scale span
(Linear input)
Sets the linear scale span.
" "
to
" "
-1999.9 to 3000.0
The display appears when the input type is linear input (mV, V).
Use the [], [] and [ENT] keys to set the linear scale span.
Use the [>] key to move the cursor to the right digit.
The setting can be either zero < span or zero > span.
□□
▲ SEL ↑ ↓ ▼ SEL
Input correction/filter
Sensor correction
Sets the sensor correction.
" "
to
" "
-199.99 to 200.00
The unit can be °C, V or mV.
Use the [], [] and [ENT] keys to set the sensor correction.
Use the [>] key to move the cursor to the right digit.
□□□
▲ SEL ↑ ↓ ▼ SEL
Digital filter
Sets the digital filter.
"□□□ "
Function OFF
"□□□ "
to
"□□ "
0.1 to 99.9 [sec]
Use the [], [] and [ENT] keys to set the digital filter.
Use the [>] key to move the cursor to the right digit.
