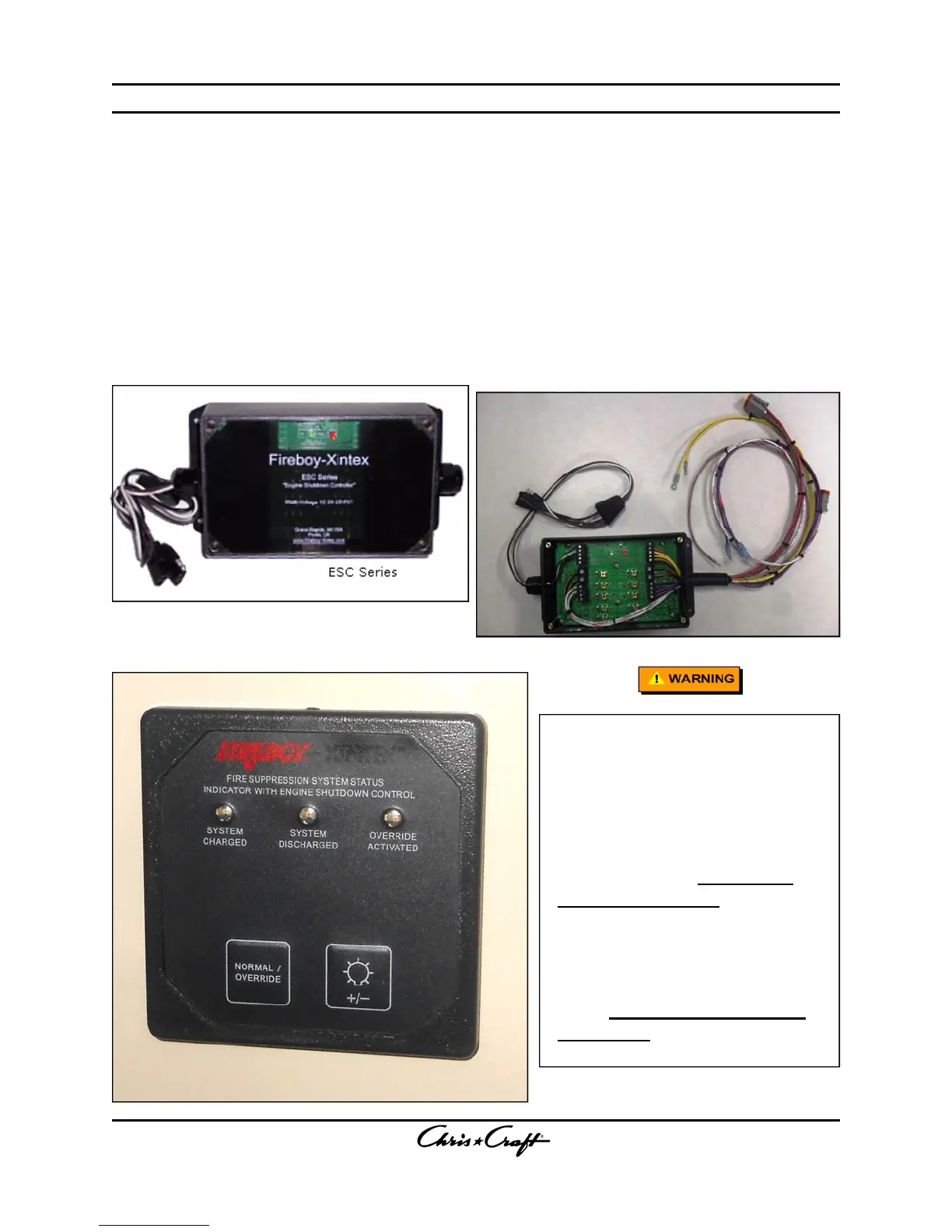

Figure 3-98. Fireboy Control Box
Fireboy Installation (Continued)
FEATURES
♦ Shuts down engines, generators and blowers as required upon discharge of the Fireboy System.
♦ Compatible with all Fireboy Automatic and Manual/Automatic Fire Systems.
♦ Complete with relay terminal box and round or square display bezel.
♦ Green “CHARGED” and red “DISCHARGED” LED’s indicate fire system status.
♦ Toggle switch for “Normal” and “OVERRIDE” positions.
♦ Equipped with 85 db alarm horn.
Figure 3-97. Fireboy Control Box
The fire extinguishing agent used is
described below:
♦ For Domestic And International Use:
HFC - 227. You should frequently
check the fire extinguisher for the
correct pressure. If the pressure is
below specification, have the unit
serviced immediately. You should
also weigh the cylinder (less the
bracket) for proper weight. If the gross
weight has deviated from the specifica-
tion label, service or replace the fire
bottle. Weigh the cylinder at least
twice a year.
