Battery Powered Systems
The Battery Switch Panel controls how battery power is distributed. Some DC systems are constantly
powered while others require the Master Battery Switches be turned ON. The following systems are un-
der constant power regardless of the Master Switch setting:
• Bilge Pumps
• Audio/Video Memory
• Battery Charger
Each of these systems may be disengaged by turning the “Constant Main” breaker to OFF.
An optional DC powered fuse block is also installed on the boat. This fuse block permits the owner to
install additional and/or aftermarket components to the boat. To power the fuse block the House battery
Battery Charging
Each engine has an alternator which not only charges the batteries but also provides DC electrical
power to the boat. In addition, a fully automatic AC battery charger is included in the 32 RJ/RK models
and consumes shore power to recharge all three batteries. A standard 120V power cord plugs into a
battery charger inlet. A manufacturer’s operation booklet is supplied with the vessel and contains addi-
tional information which you should become familiar with. The charger is protected by circuit breakers on
the Battery Switch Panel.
Systems
3-20 3-20
Table 3.2. Battery Specifications
Type Battery Group CCA
Reserve
Minutes
Volts
Cranking
Port
Engine
27 800 180 12V
Cranking
Starboard
Engine
27 800 180 12V
Deep Cycle House 27 600 160 12V

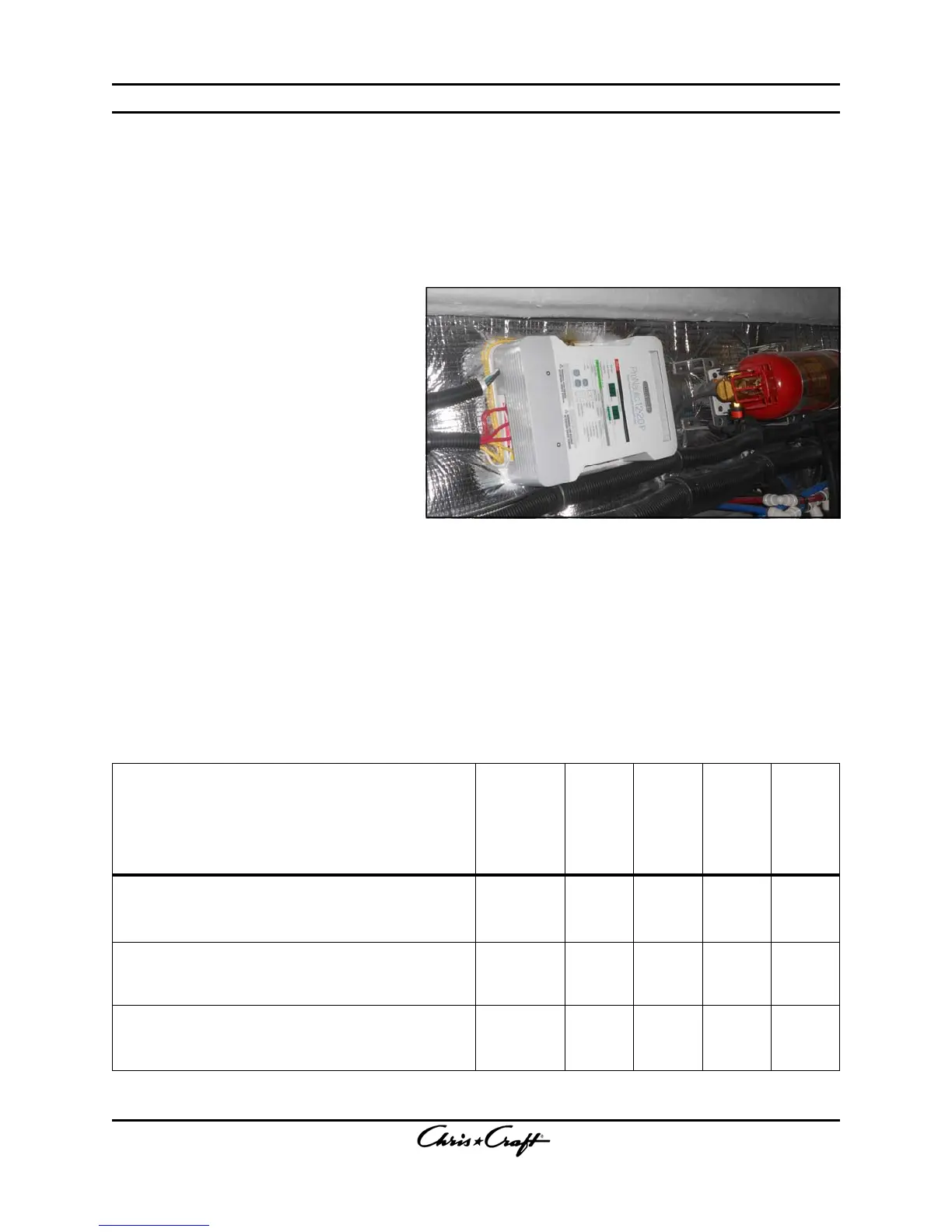

Figure 3-45. Battery Charger
