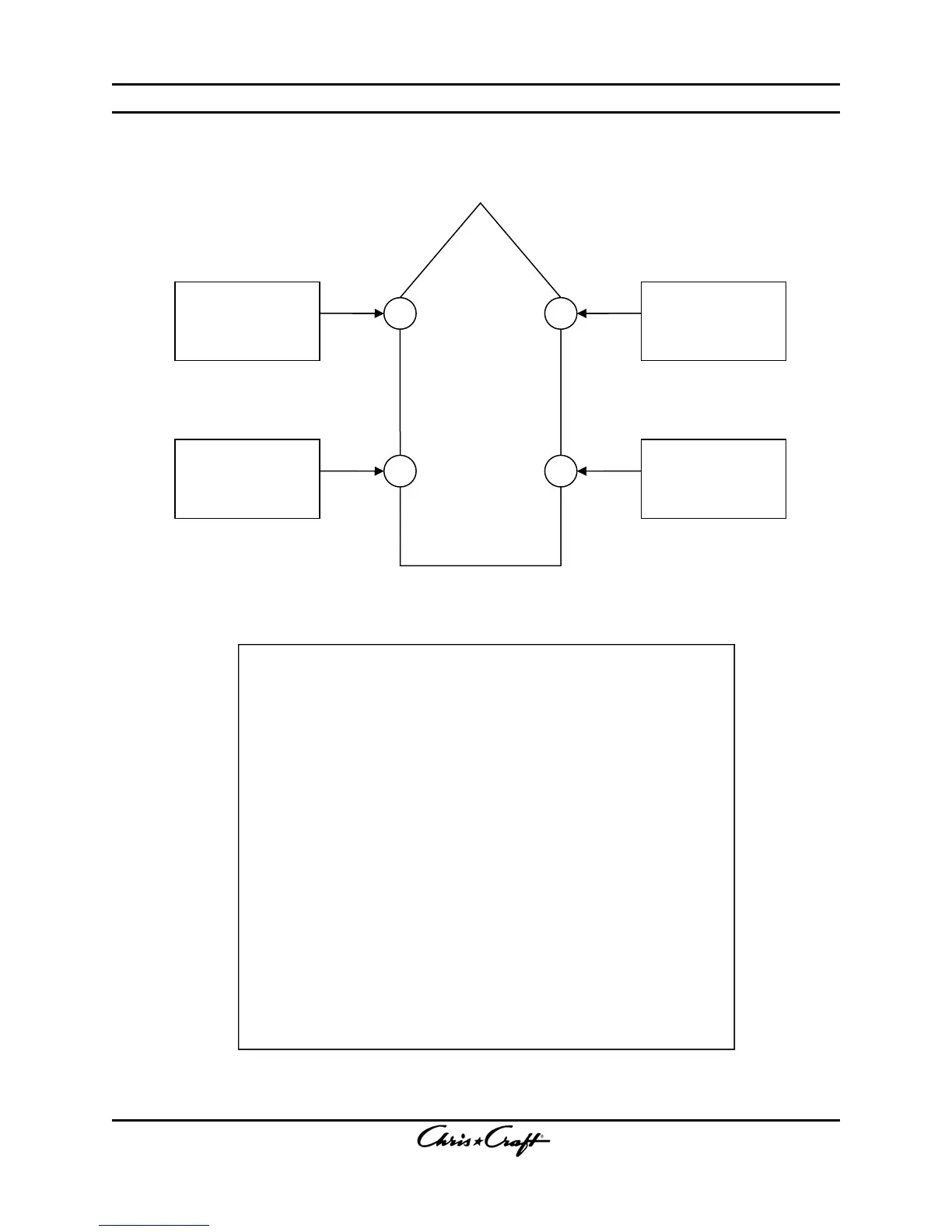

Figure 3-127. Stereo Speaker Connections
3-70 3-70
Rockford Fosgate Stereo System (Continued)
Figure 3-127. Amplified Stereo Connector
STEREO CONNECTIONS:
384 WHT/RED = WHITE
385 WHT/YEL = WHITE/BLACK
386 WHT/GRN = GRAY
387 WHT/BLK = GRAY/BLACK
388 WHT/RED = GREEN
389 WHT/YEL = GREEN/BLACK
390 WHT/GRN = VIOLET
391 WHT/BLK = VIOLET/BLACK
372 RED/YEL = YELLOW (continuous power)
373 BLU/WHT = BLUE/WHITE (amp rem)
374 RED = RED (switched power)
374G YELLOW = BLACK (ground)
FWD PORT SPKR
384 – WHT/RED
385 – WHT/YEL
AFT PORT SPKR
388 – WHT/RED
389 – WHT/YEL
FWD STBD SPKR
386 – WHT/GRN
387 – WHT/BLK
AFT STBD SPKR
390 – WHT/GRN
391 – WHT/BLK
