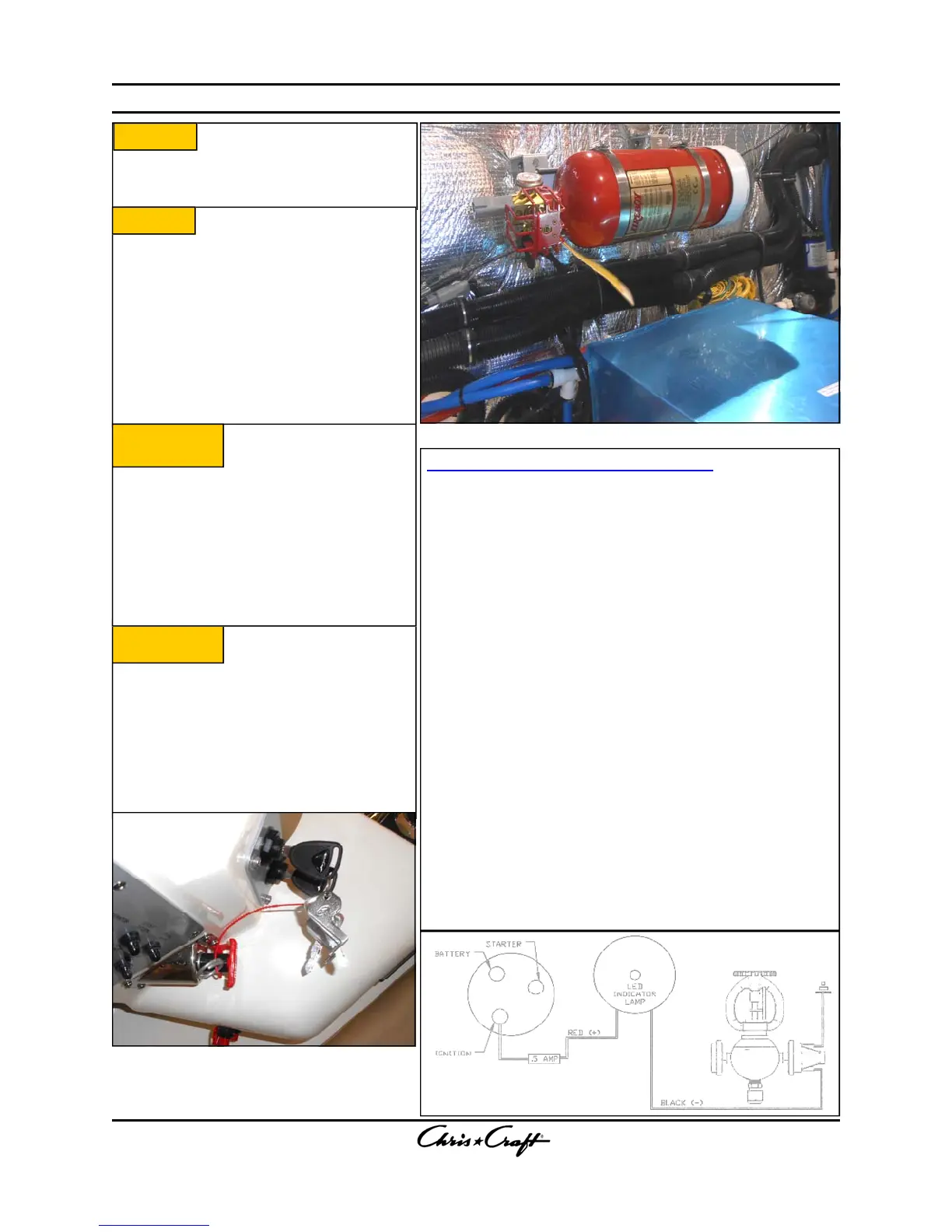

Figure 2-15 Fire Boy Engine Room
When the Fireboy system is
activated the engine and the
blower will be shut down automatically.
NOTICE:
Check the indicator lamp.
♦ The indicator lamp is designed to monitor
the state of the fire extinguisher when the
ignition key is ON.
♦ A GLOWING GREEN light indicates
the system is CHARGED.
♦ A NON-GLOWING GREEN LIGHT
indicates the system is DISCHARGED.
NOTICE:
PULL PIN
Operation of the Fireboy Fire Extinguisher
♦ Automatic actuation of a Fireboy fire extinguisher oc-
curs at 175 degrees F. and is entirely dependent on
the intensity of the fire.
♦ Signs of actuation:
1. A loud sound similar to small arms fire.
2. A loud sound of rushing air.
3. An extinguished indicator lamp.
4. A stalled engine.
♦ When Actuation occurs:
1. Immediately shutdown all engines, powered
ventilation, and electrical systems.
2. Do not open the engine compartment.
♦ After actuation occurs:
1. Before inspecting for damage, allow the agent to
“soak” the compartment for at least 15 minutes and
wait for hot metals or fuels to cool.
2. Have approved portable extinguishers in hand and
ready for use.
3. Do not breathe fumes or vapors caused by the fire.
They are hazardous and toxic.
With the “S” hook in
place, and the cable end retaining clip
NOT installed, any pull on the cable ex-
ceeding 20 pounds will actuate the re-
lease mechanism. The cable should
never be installed or removed without the
cylinder securely fastened in its mounting
CAUTION:
2-31 2-31
The engine compartment
blowers are required to
have a ground connection to be con-
nected to the Fireboy system.
Failure to connect a power ventilation
shutdown system impedes the opera-
tion of the fire extinguisher and may
prevent fire extinguishment.
CAUTION:
Figure 2-16 Fire Boy Helm Station
Figure 2-17 Fire Boy
Electrical System
Safety And Operations
