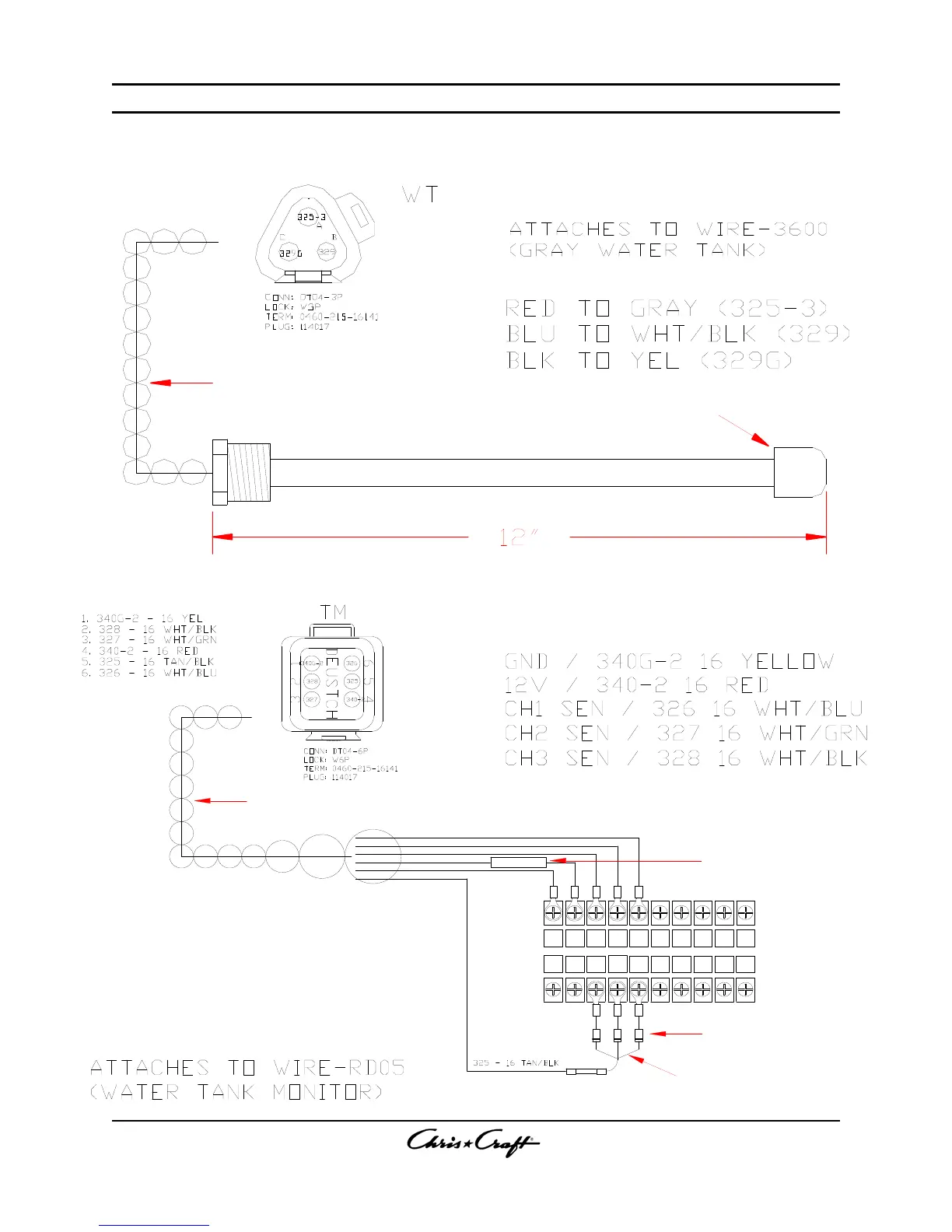

Figure G-23 Gray Water Tank Sensor
G-25 G-25
A . 32 5-3 - 16 GRAY
B . 32 9 - 16 WHT /BLK
C . 32 9G - 1 6 YE LL OW
30" LEAD
P IN - 08 0-99 94
B UTT - 02 8-13 57
C ON N - 080-99 90
L OC K - 080-99 97
USE PVC CEMENT TO SECURE
CAP TO TUBE.
Appendix G
14" LEAD
PIN- 080-9994
BUTT - 028-1357
CONN - 080-9991
LOCK - 080-9989
GND 12V
CH1
SEN
CH2
SEN
CH3
SEN
CH4
SEN
CH5
SEN
CH6
SEN
CH7
SEN
CH8
SEN
GND
LP
CH1
PWR
CH2 CH3 CH4 CH5 CH6 CH7 CH8
PWR PWR PWR PWR PWR PWR PWR
RECTIFIER
DIODE
FUSE HOLDER 028-1051
1 AMP FUSE 028-1072
BUTT - 028-0785
COVER EXPOSED WIRES
WITH INSULATION
Figure G-24 Water Tank Monitor
