Figure 3-27. Locate Switch Panel By
Removing The Port Aft
Cockpit Seat Cushion

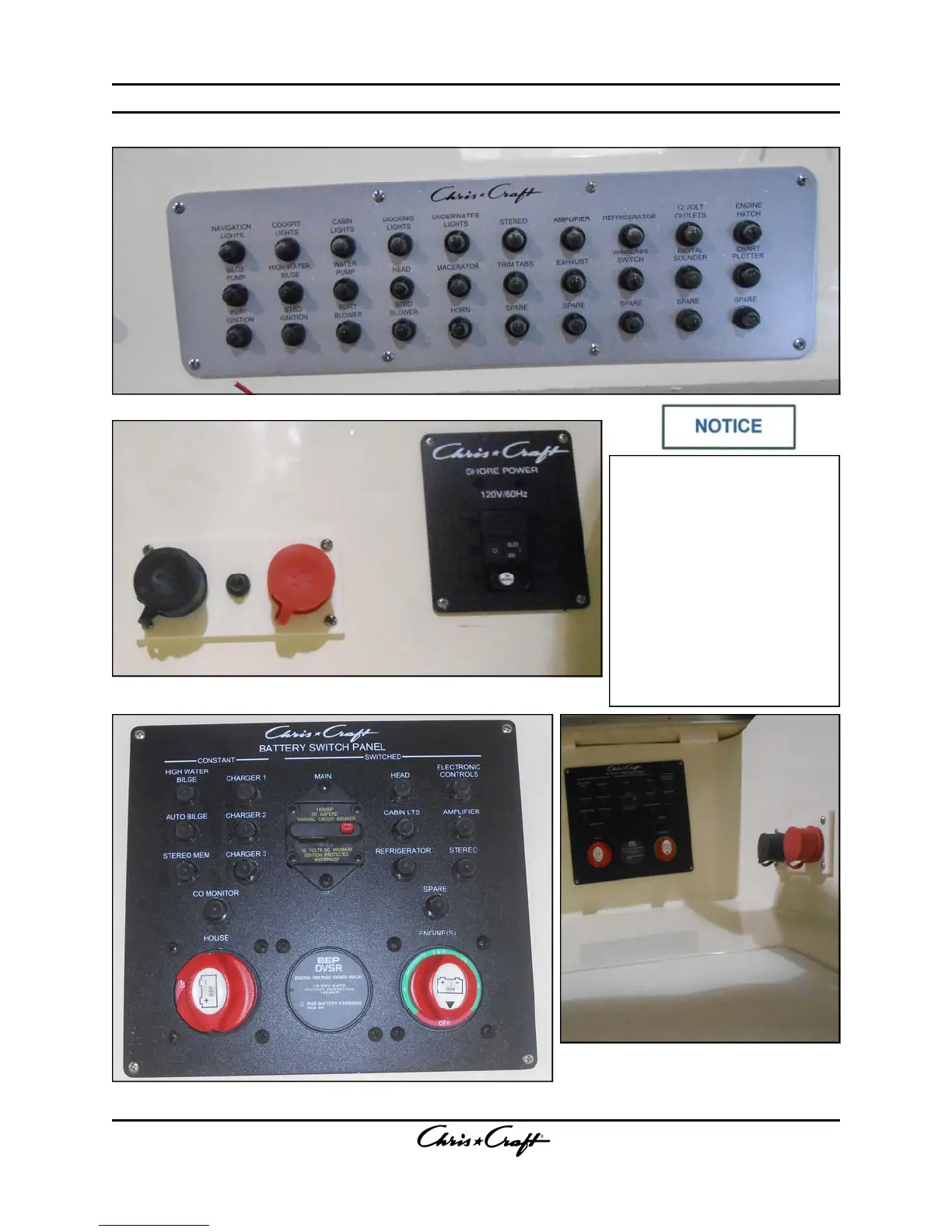

Figure 3-24. RJ/ RK Helm Breaker Panel
Battery Switch Panel and Helm Breaker Panel
3-9 3-9
Systems
Figure 3-26. RJ/RK Battery Switch Panel
Emergency battery posts are
located forward of the engine
compartment bulkhead and
below the rear cockpit seat on
the port side. In the event of a
situation where the batteries
are dead, these posts will
enable the owner to open the
engine hatch using jumper
cables and a portable battery.
Figure 3-25.
EMERGENCY Battery Posts For Raising The Engine Hatch
