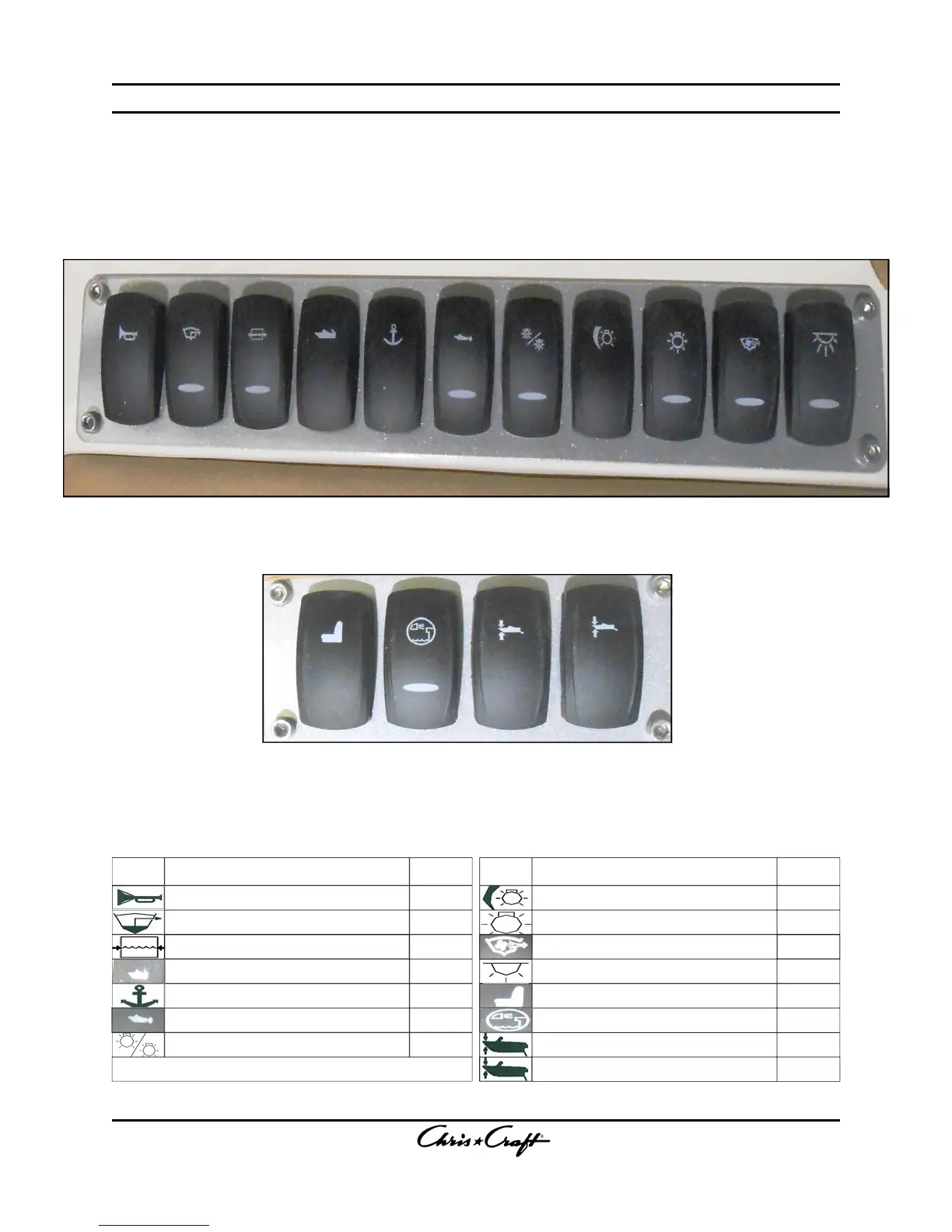

Figure 3-22 Helm Switch Panel
There are numerous switches you should be aware of when operating your boat. This section
identifies these switches by their icon.
See Table 3-1. Switch Identification Icons
Figure 3-23. Helm Switch Panel
Console Configuration and Identification (Continued)
32 RJ/RK Launch/Corsair
FRESH WATER PUMP
ICON DESCRIPTION SIZE
WINDLASS
AMPS
15 AMPS
HORN 5 AMPS
BILGE PUMP
10 AMPS
ENGINE HATCH
AMPS
NAVIGATION LIGHTS 20 AMPS
xx AMPS CORSA EXHAUST
Table 3.1. Switch Identification Icons
ICON DESCRIPTION SIZE
COCKPIT LIGHTS 5 AMPS
UNDERWATER LIGHTS (OPTION) 10 AMPS
3 AMPS DOCKING LIGHTS
ELECTRIC HELM SEAT
10 AMPS
TRIM TAB PORT 20 AMPS
TRIM TAB STARBOARD 20 AMPS
20 AMPS
DIMMER SWITCH
3 AMPS
BLOWER SWITCH
10 AMPS
3-8 3-8
Systems
