G-13 G-13

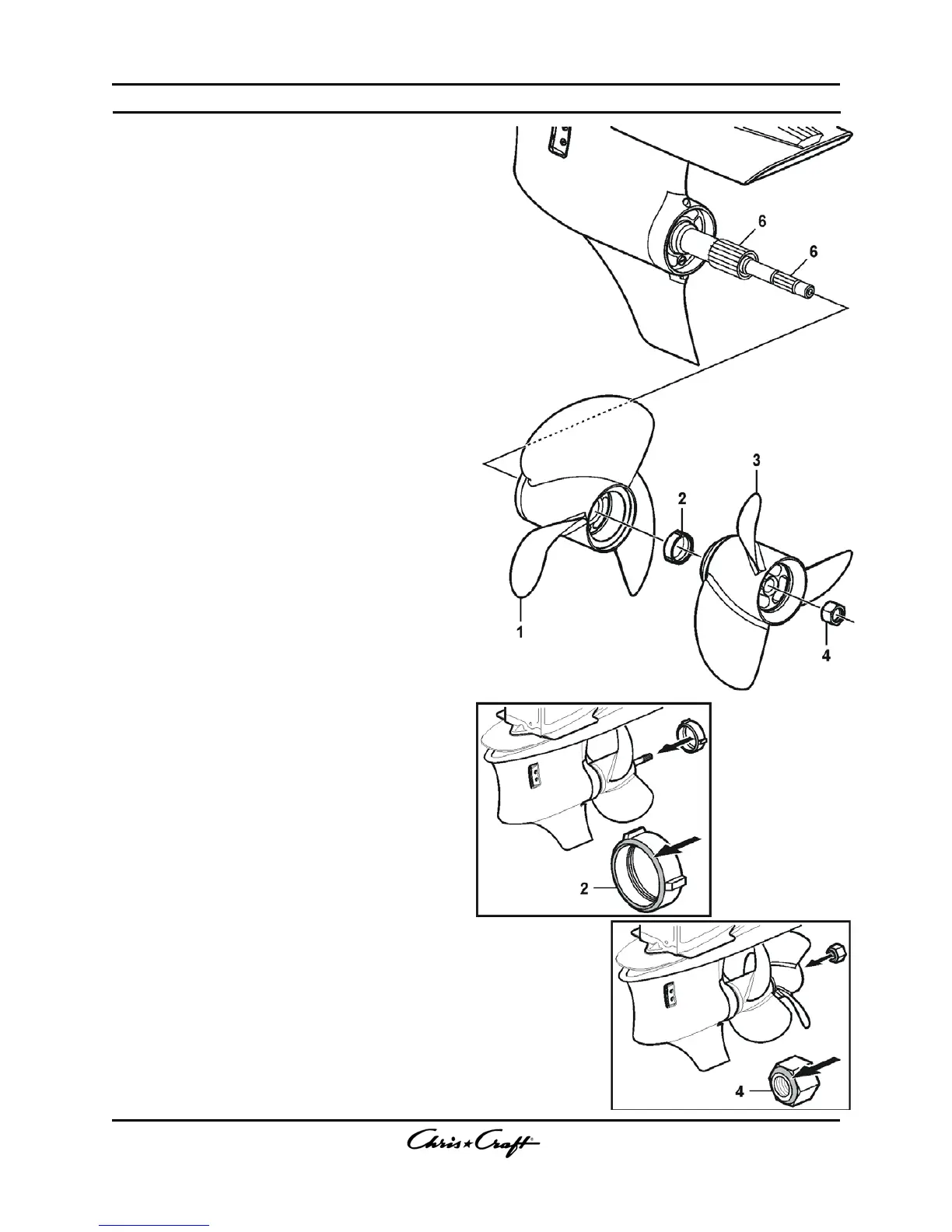

Figure G-11. Volvo DP Propeller Installation
Installing the Volvo DPS-A Propeller
NOTICE! Failure to install all components could
result
in loss of the propeller and damage to the drive unit
the next time the boat is operated.
1. Turn ignition switch off and remove key.
2. Coat the full length of both shafts with grease
(P/N 828250). Future removal of the propellers
will be difficult if this is not done.
3. Install the front propeller 1.
4. Install the front propeller nut 2, chamfered edge
forward. Use propeller nut tool (P/N 3862797)
and torque wrench to torque the nut to 45 ft. lb.
(60 Nm).
NOTICE! Be sure the chamfered edges of the
propeller nuts are facing forward. Failure to install
the propeller nuts correctly could result in propel-
lers
coming loose and damage to the lower unit
and/or propellers.
5. Install the rear propeller 3.
6. Install the rear propeller nut 4, chamfered edge
forward. Use a 30 mm socket and torque wrench
to torque the nut to 75 ft. lb. (100 Nm).
7. With the remote control in neutral position, both
Appendix G
