Chris-Craft 32 Launch (RJ) User Manual

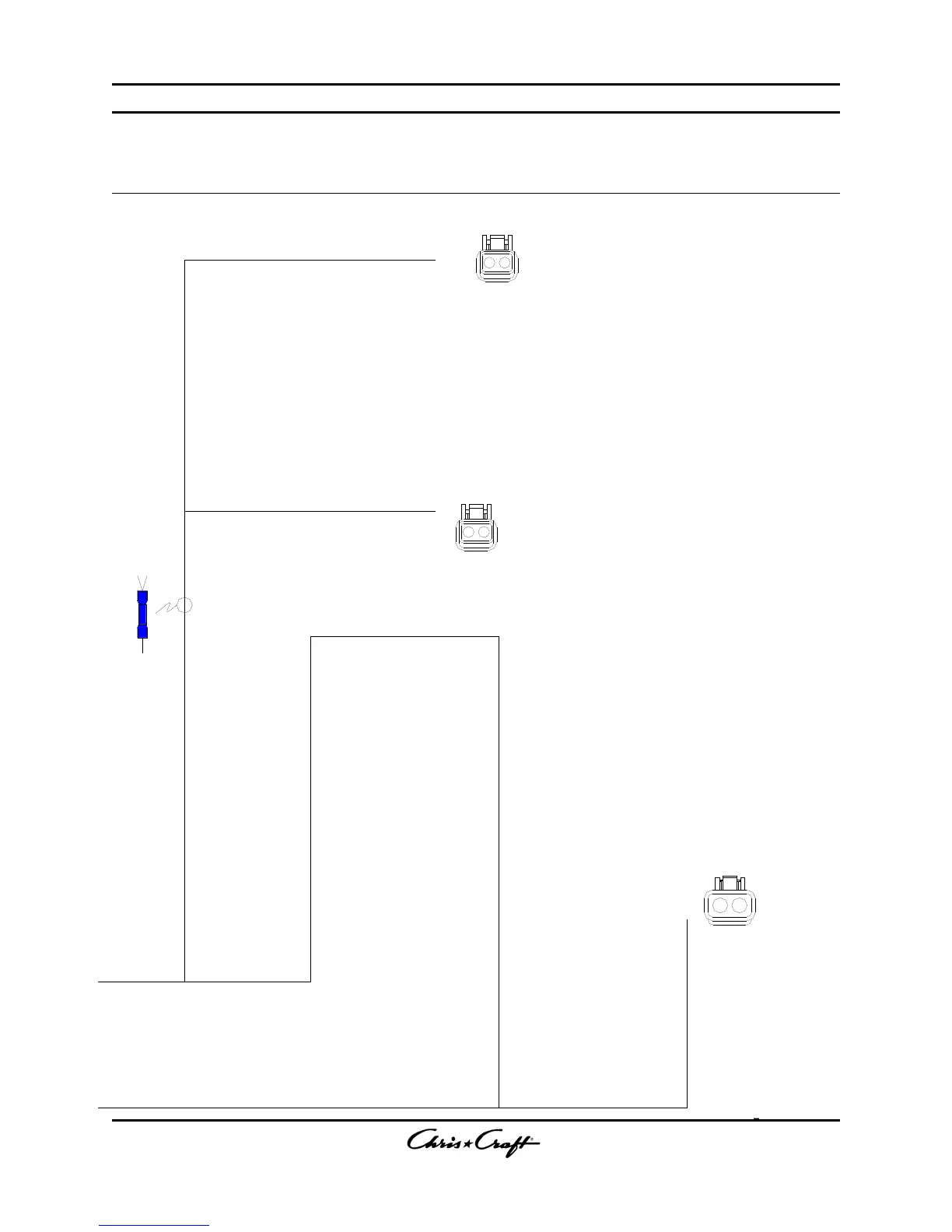

Figure G-44 RK Tecma Head Wiring (Part II)
See Figure G45 on page G-37 for (Part III)
Appendix G
176"
MACERATOR
1. 270 - 14 BRN/VIO
2. 270G - 14 YELLOW
CONN "MC"
CONN: DTP06-2S
LOCK: WP2S
TERM: 0462-203-12141
(10ga): 1062-12-0222
21
MC
270 270G
12"
36"
15"
HOLDING TANK
1. 325-1 - 16 GRAY
2. 327 - 16 WHT/GRN
CONN "HT"
WATER TANK
1. 325-2 - 16 GRAY
2. 326 - 16 WHT/BLU
CONN "WT"
CONN: DT06-2S
LOCK: W2S
TERM: 0462-209-16141
12
HT
325-1 327
CONN: DT06-2S
LOCK: W2S
TERM: 0462-209-16141
12
WT
325-2 326
8"
16"
TER M: 028-1357
SPL-2
325
325-1
325-2
G-36 G-36
58”
176”
176”
14”
15”
8”
12”
16”
NOTICE: THE NUMBERS AND
SCRIPT CONTAINED ON THIS
PAGE ARE VERY LEGIBLE
AND READABLE. SIMPLY
ZOOM IN AND READ.
