Freeze-dryer Alpha 1-4 LSCplus
Freeze-dryer Alpha 2-4 LSCplus
Version 01/2011, Rev. 2.3 of 03/07/2017 • sb
Translation of the original operating manual
Service
“Service” options:
1 "Operating hours"
2 "Failure memory"
3 "Wireless shelf
technology"
4 "Vacuum pump oil
change"
5 "Maintenance"
6 "Sensor adjustment"

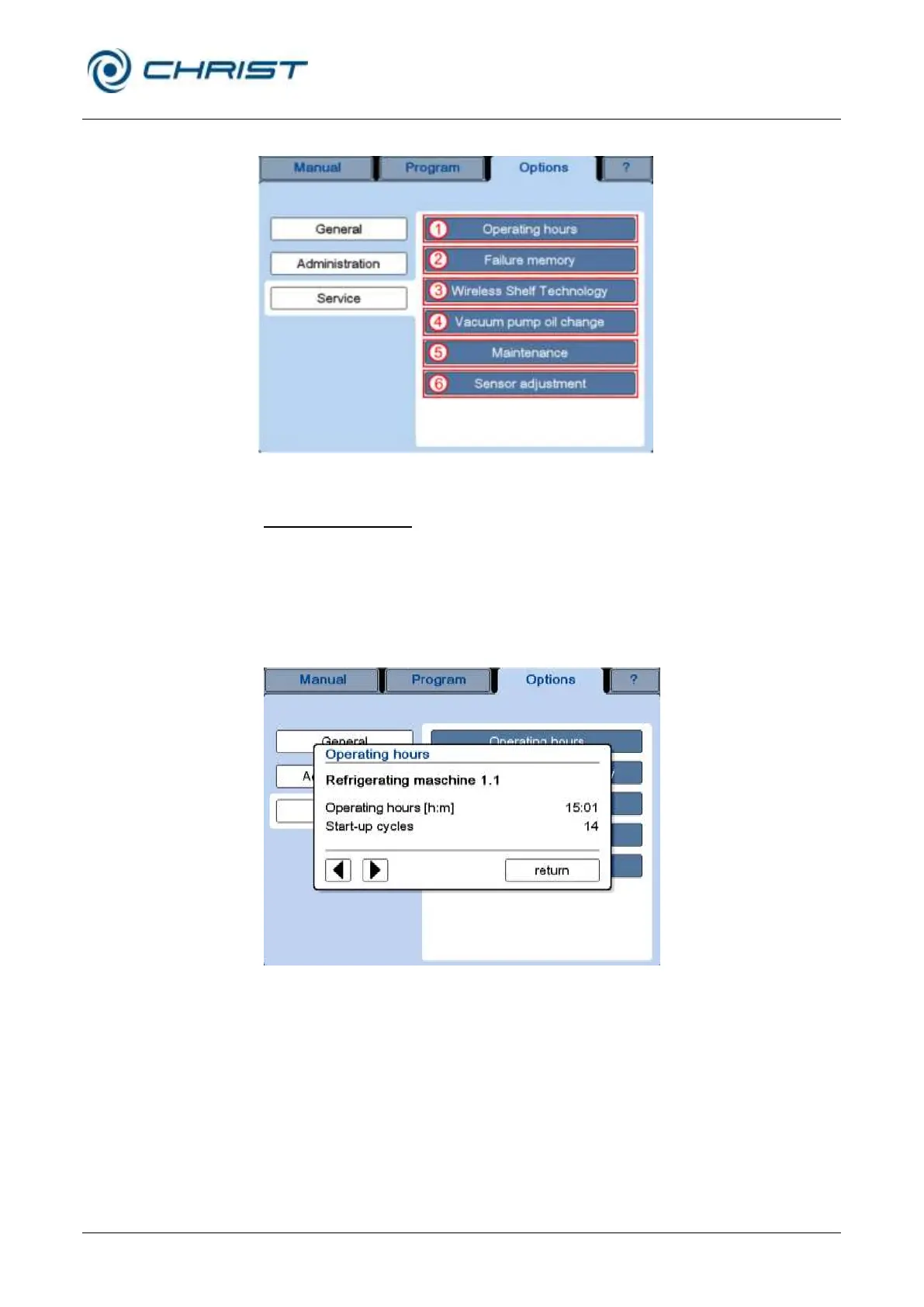

Fig. 47: Dialog box "Service" (varies depending on the type of system)
Operating hours (1)
This dialog box is used to call up the number of operating hours of the
various components of the freeze-dryer, e.g. the refrigeration unit, vacuum
pump, or pressure control valve. In addition to the name, the reference
designator is also displayed.
These data are provided for the purpose of information only. They cannot
be edited.
Fig. 48: Dialog box "Operating hours" (here: refrigeration unit 1.1)
