RS232 Interface
6-1
6. RS232 Interface
6.1 Guide
Users can use computer via RS232 interface to remote control for the tester. This interface
applies binary code transmission mode, its command format is the same as RS485 interface.
The detail command description, please see section 5.6 Command Description.
6.2 Interface Specification
It’s a standard RS232 interface, the setting value as the following:
BAUD RATE : 4800/9600/19200
PARITY : NONE
FLOW CTRL. : NONE
6.3 RS-232 Single Unit Connection for Parameter
Setting
1. Press MENU under “STANDBY” screen, by using F1, F2 to move the highlight to
“OPTION”. Next to press SELECT to move the highlight to “REMOTE INTERFACE” then
press SELECT to enter RS485 setting screen.
2. Use NEXT to move the highlight, and UP, DOWN to change the settings.
3. Setting item descriptions for single unit connecting:
a. INTERFACE: Select RS485 interface
b. UNIT TYPE: Select device type as SLAVE.
c. BAUD RATE: Select transmission as 4800, 9600 or 19200 baud rate.
d. UNIT ADDRESS: Set as 1.
6.4 Connector

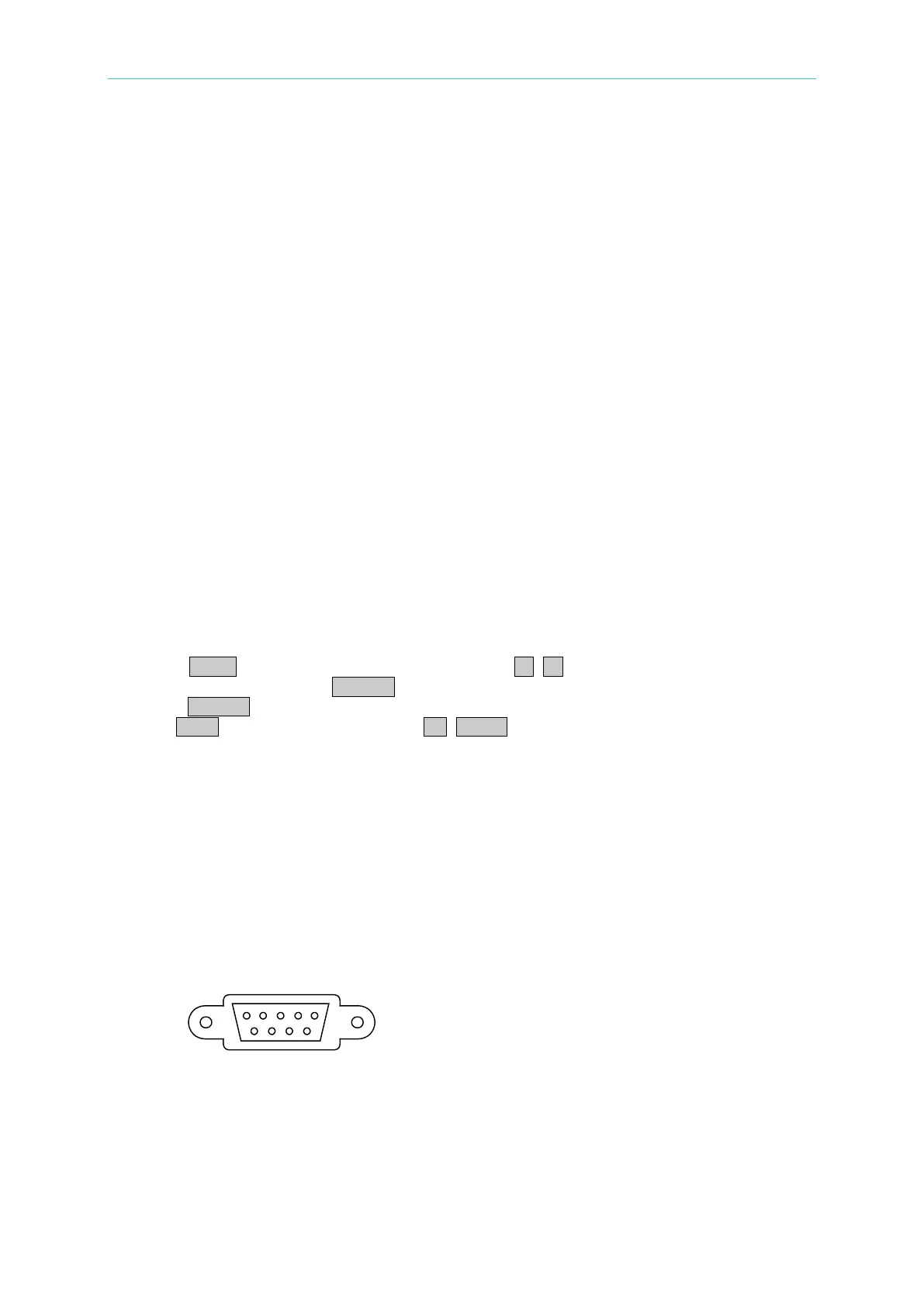

RS232 connecter of the instrument is a 9-pin D-Sub connector.
