Panel Description

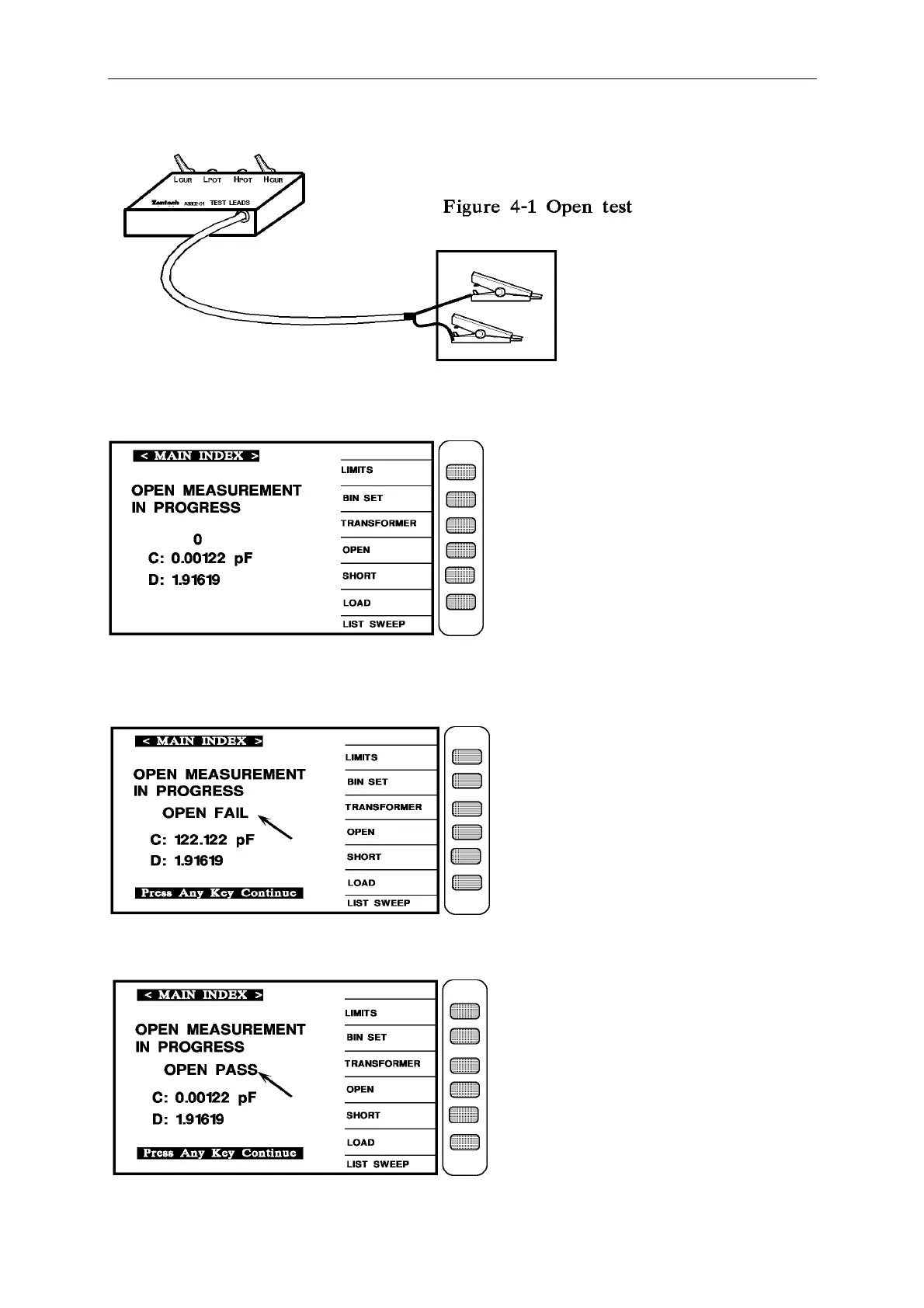

After finish the cable connecting, press [Trig] to start open test, it will show the condition of
open test on the screen as below:
If there is any wrong, the screen will show [OPEN FAIL], it mean the procedure of open test
wrong, please check any break on the test cable or clips touch no good, after checking then
operate it again as below the arrow head pointing:
When open test is current, the screen will shows [OPEN PASS], the mean is open test finished,
press any key will escape to another index as below the arrow head pointing:
