Automatic Transformer Test System 3300/3302 User’s Manual

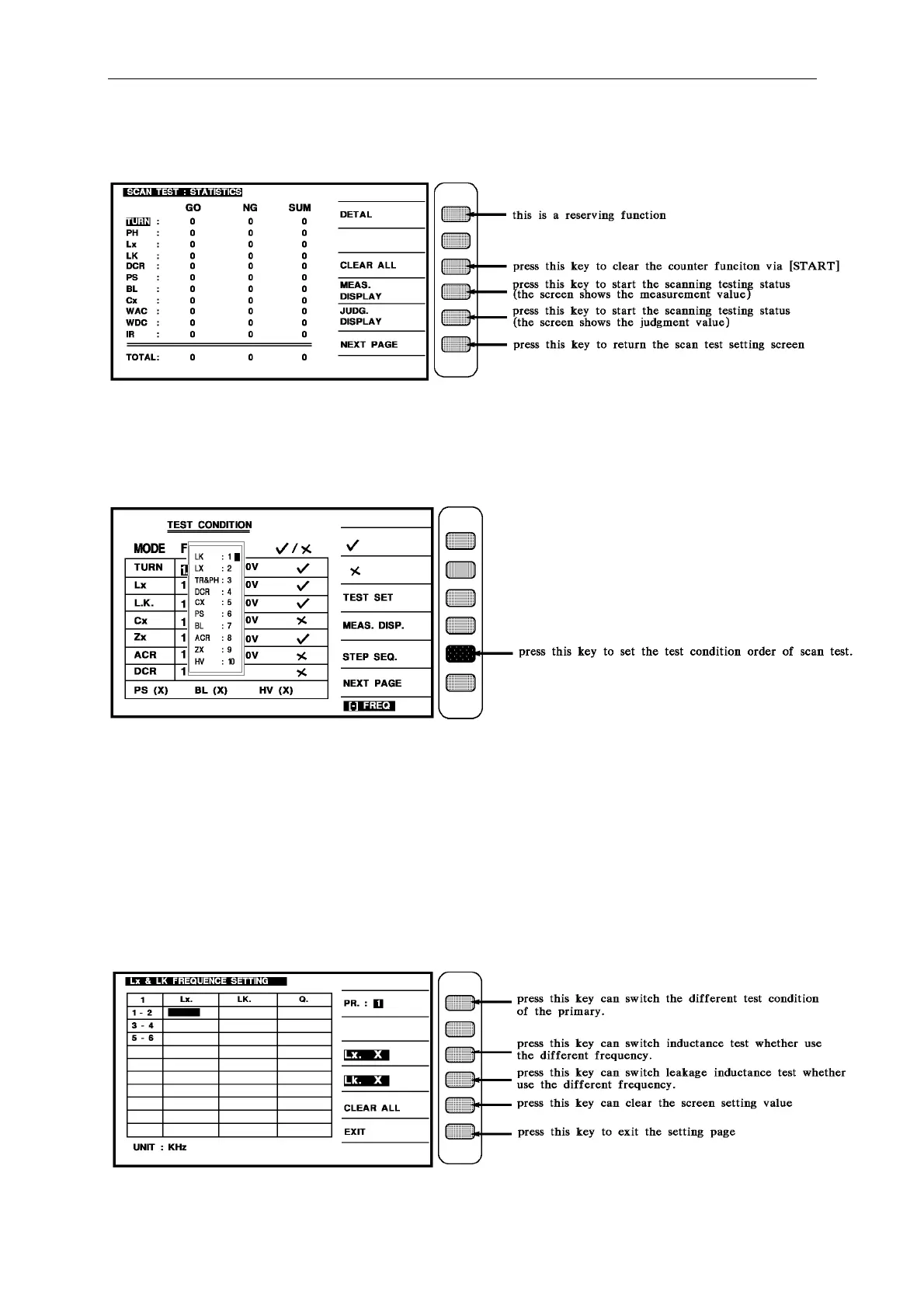

Press [NEXT PAGE] to get the statistic screen of each testing result.
4.4.5 Test Procedure Description
The test condition setting of transformer automatic scan is under the TEST CONDITION
screen that is the STEP SEQ. key which located at the right side of display
The above is this instrument default value from the factory, recommend not to change the
value while general test, when want to change just move the cursor to modify order.
Notice: do not repeat the test no. order, and when any test item has not been opened yet,
the test order will automatic skip to next test item.
4.4.6 Different Frequency Setting In The Different Windings:
The multi-frequency scan test setting of transformer automatic scan is under the test condition
screen that is the number key [-] which located at the bottom-right side of display, when press
this key, the screen shows as below:
