Chroma 69225 Series User Manual

Overview
1-9

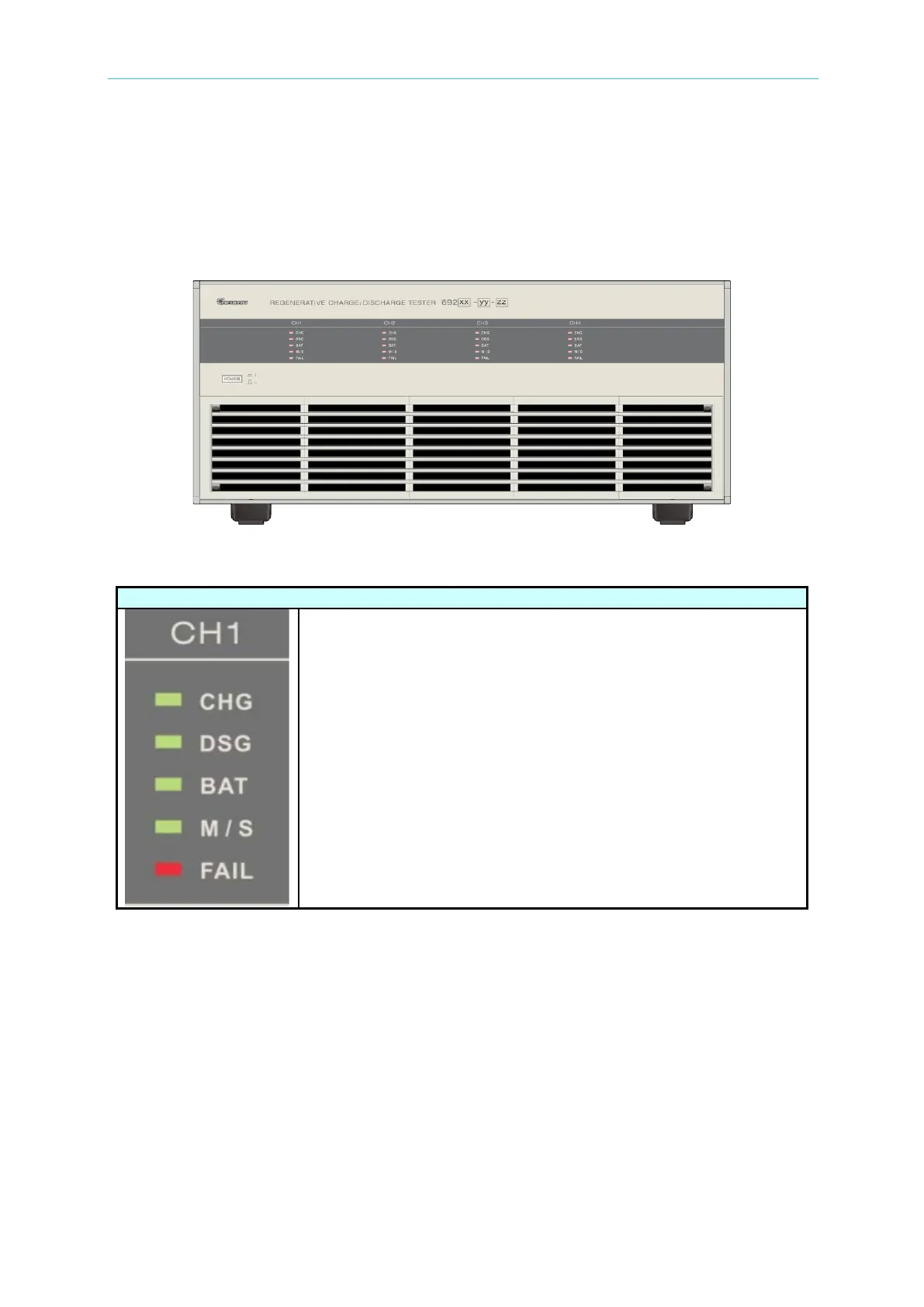

1.4 Name of Function Key
1.4.1 Front Panel
Model: 69225-100-4, 69225-60-4, 69212-60-4, 69212-20-4, 69225-200-4, 69225-500-4
Figure 1-3
Table 1-3
69225/69212 Series
1. CHG(Green)
It is always ON while battery charging and always OFF under
other states.
2. DSG(Green)
It is always ON while battery discharging and always OFF under
other states.
3. BAT(Green)
The indicator is always ON while battery voltage is detected
(voltage is more than 1V) and always OFF while unconnected.
4. M/S (Green)
Master LED is always ON and Slave is blinking while paralleling
.
These two LEDs are always ON while they aren’t paralleled.
5. Fail(Red)
It is always ON while abnormal status.
