1.4.2 Rear Panel
a. Model: 69212-20-4, 69212-60-4, 69225-60-4, 69225-100-4, 69225-200-4

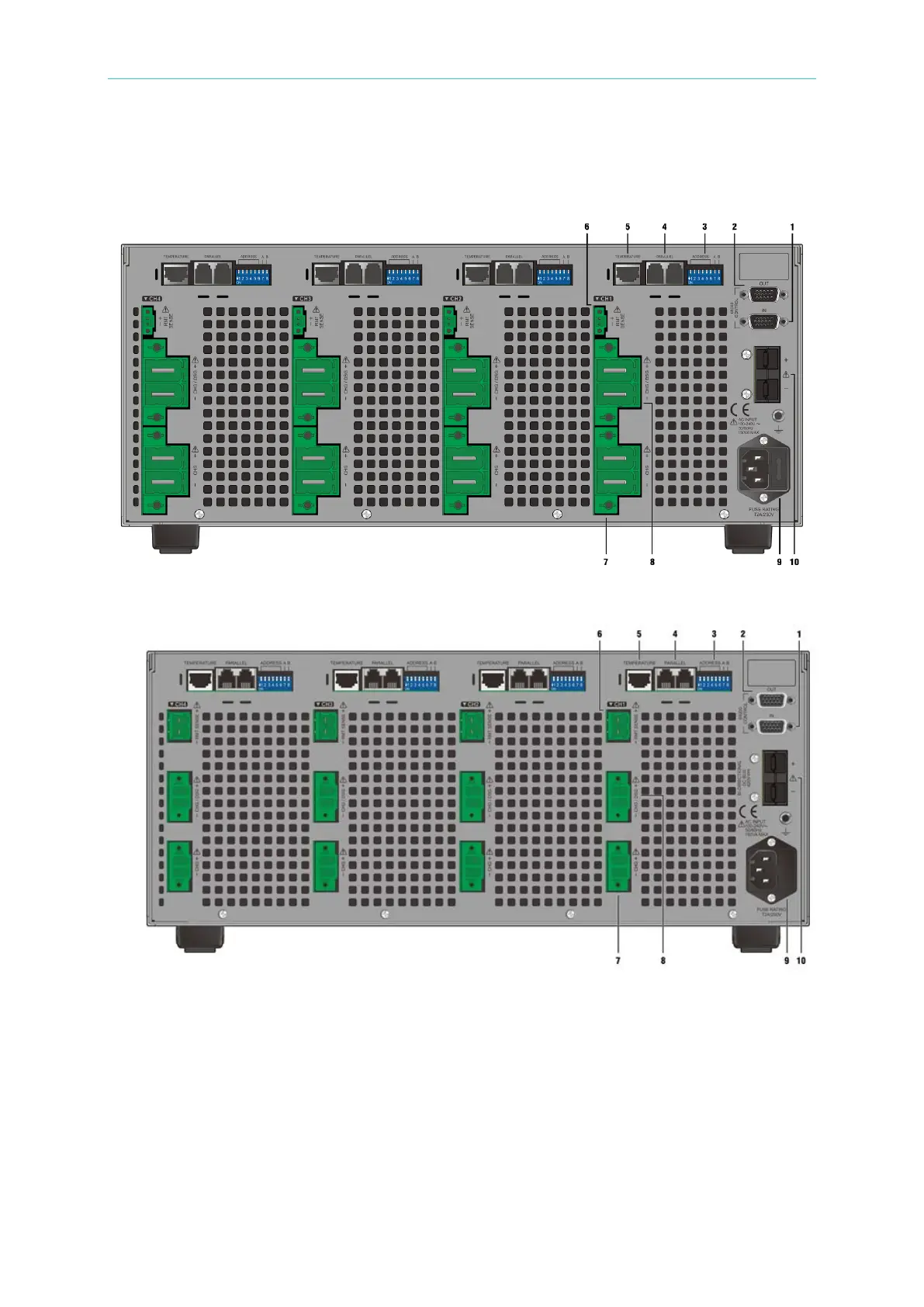

Figure 1-4
b. Model: 69225-500-4
Figure 1-5
The difference between 69225-500-4 and other models are the three channels of
“CHARGE/DISCHARGE” and “RMT SENSE” used CONNECTOR. However, the relative
positions of all I/O ports for this series model are the same, for each I/O port function refers to
Table 1-4.
