Chroma 69225 Series User Manual

Installation
2-9

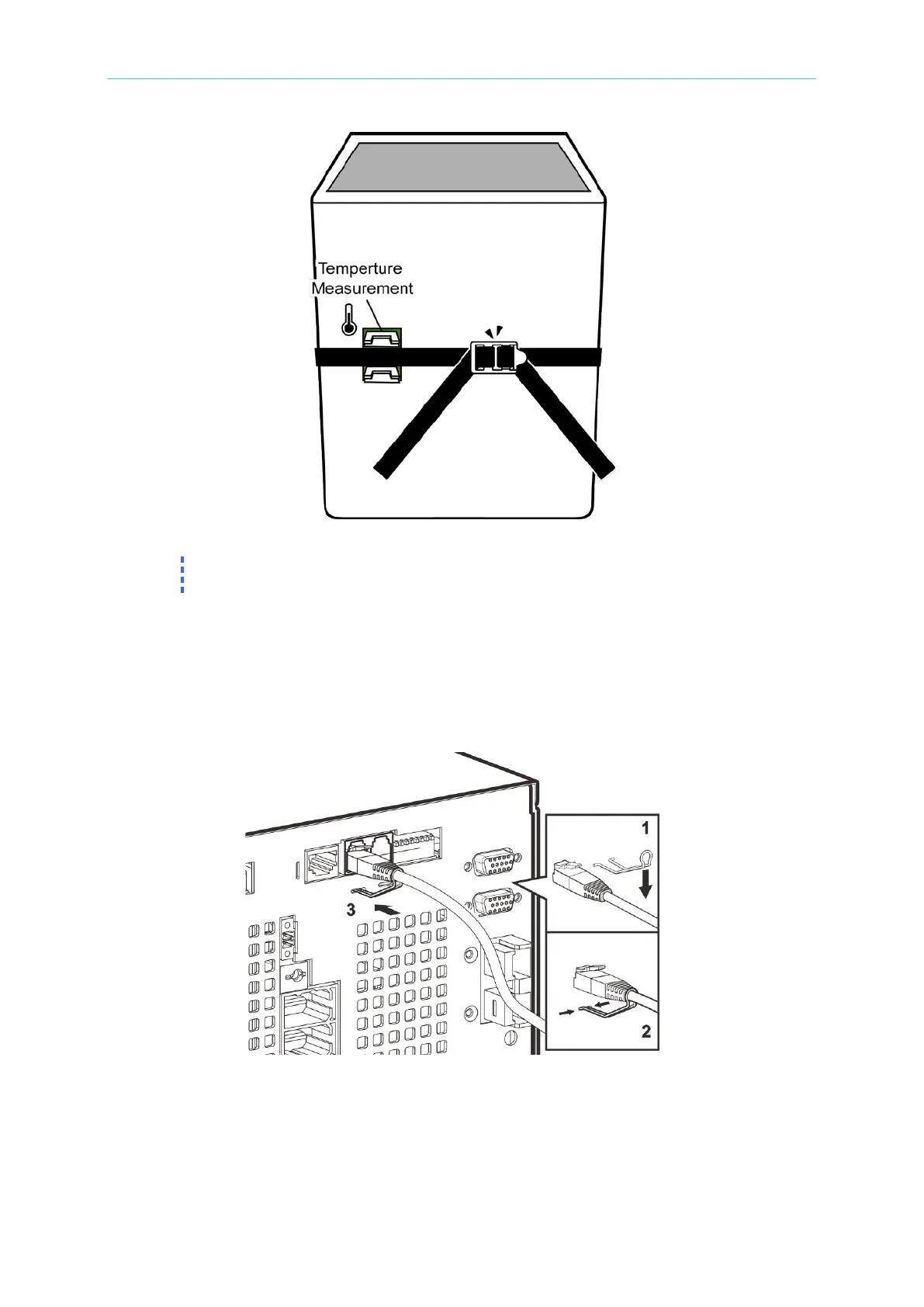

Figure 2-6
Note
Temperature sensor, temperature communication line, ladder lock and silicone
tape are optional accessories.
2.6 Hoop
Accessory hoop is used for fixing parallel channel communication line and temperature
communication wire as Figure 2-7 and Figure 2-8 shown.
Figure 2-7
