Chroma 69225 Series User Manual

Regenerative Charge/Discharge Tester 69225/69212 Series User’s Manual
2-10

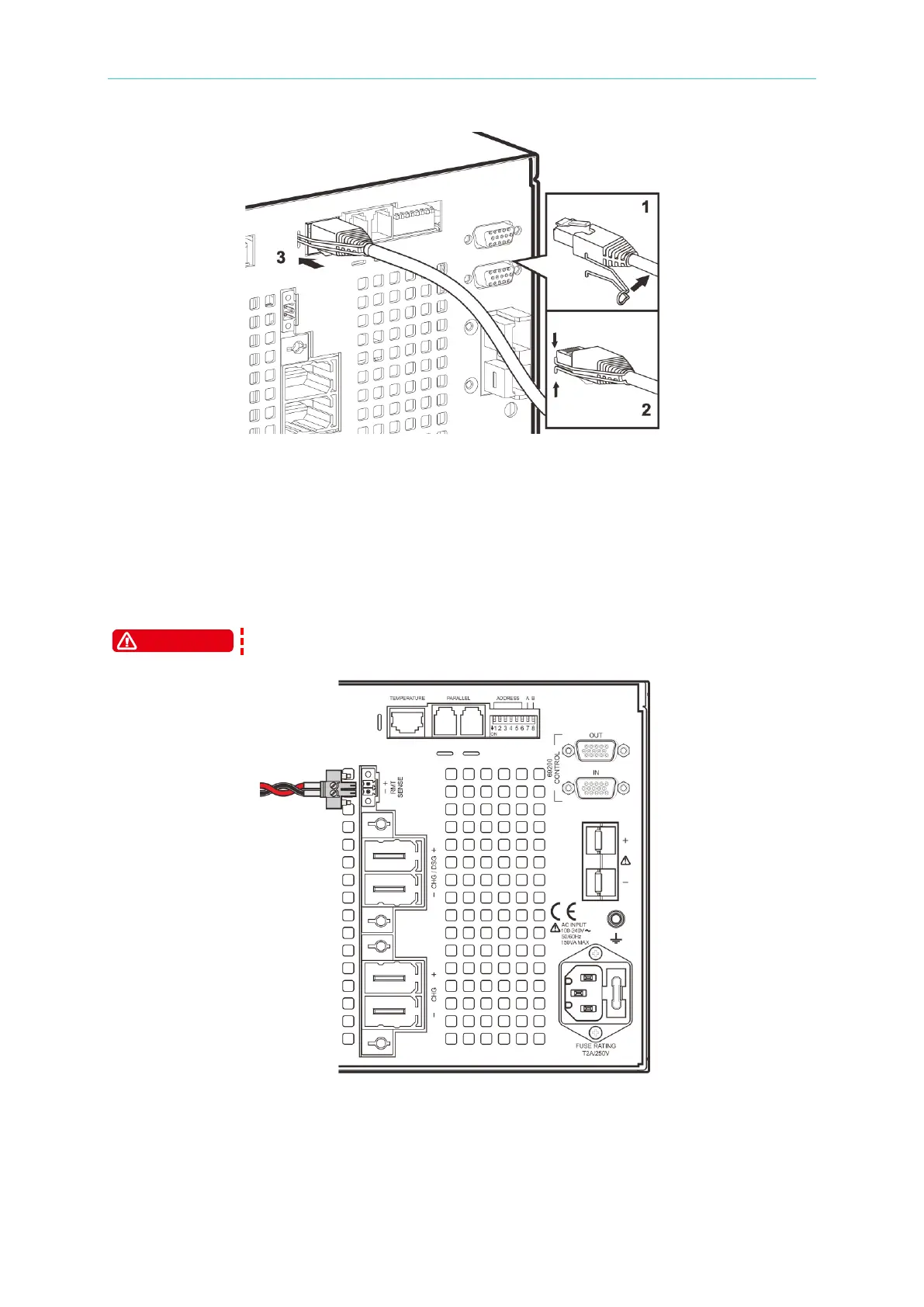

Figure 2-8
2.7 Remote Sensing Connection
Remote sense monitors voltage at load terminal for detecting DUT (battery) voltage status at
any time as the basis of overvoltage protection at output side. Remote Sense wire allocation
as below figure shows and avoid it with open status.
Please be sure that Remote sense is connected exactly.
Figure 2-9
WARNING
