Chromalox 3101 User Manual

12 Chromalox 3101 Operator's Manual
14
Normally
Closed
Load
Fuse*
Normally
Open
Load
13
15
MOV
MOV
AC Neutral
120 or 230 Vac
AC Neutral
Alarm #1
Output

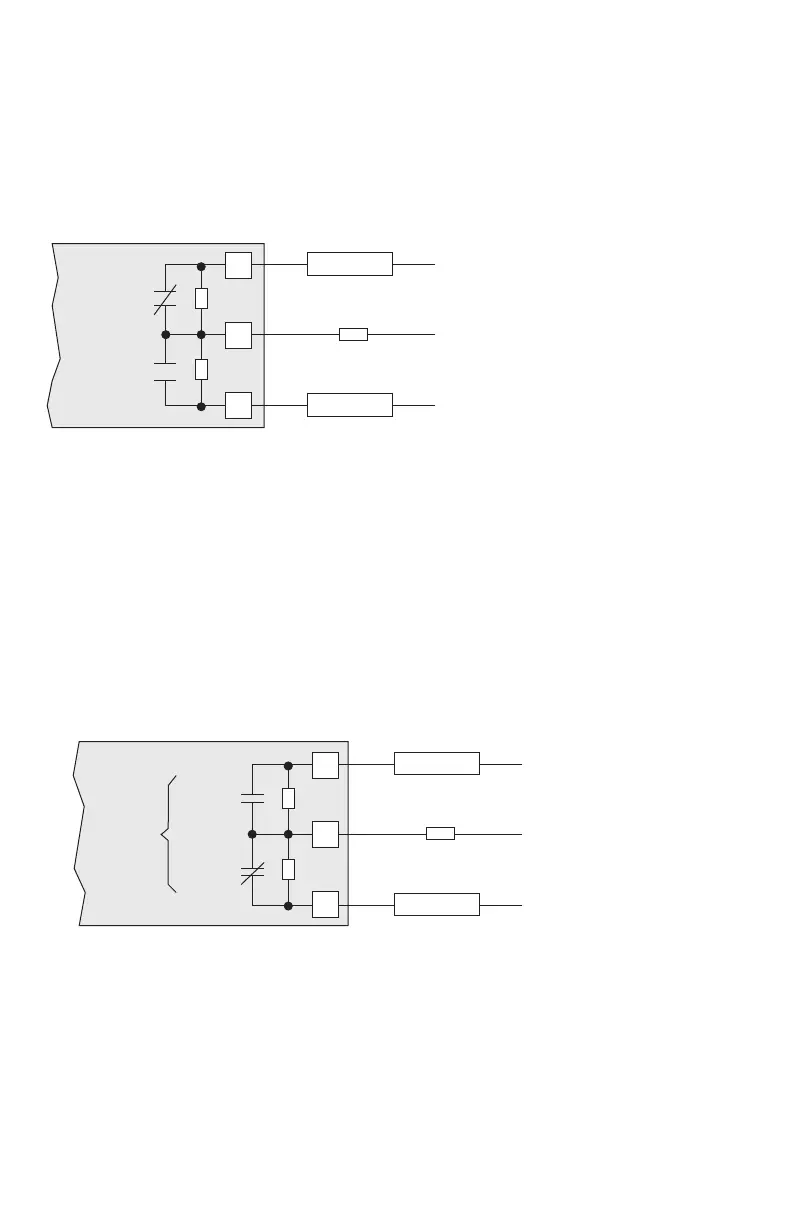

The independent Alarm #1 relay output is con-
nected as shown in Figure 2.13.
Figure 2.13
Alarm #1 Relay Output
* Fuse should be sized for the current Alarm #1 Output.
3101
Fuse*
MOV
MOV
AC Neutral
120 or 230 Vac
AC Neutral
26
Normally
Open
Load
Normally
Closed
Load
25
27
Alarm #2
Alarm #2
Output
The Form C Relay Output is connected as shown
in Figure 2.14.
Figure 2.14
Alarm #2
Output
* Fuse should be sized for the current of Alarm #2 Output.
3101
