16 Chromalox 3101 Operator's Manual

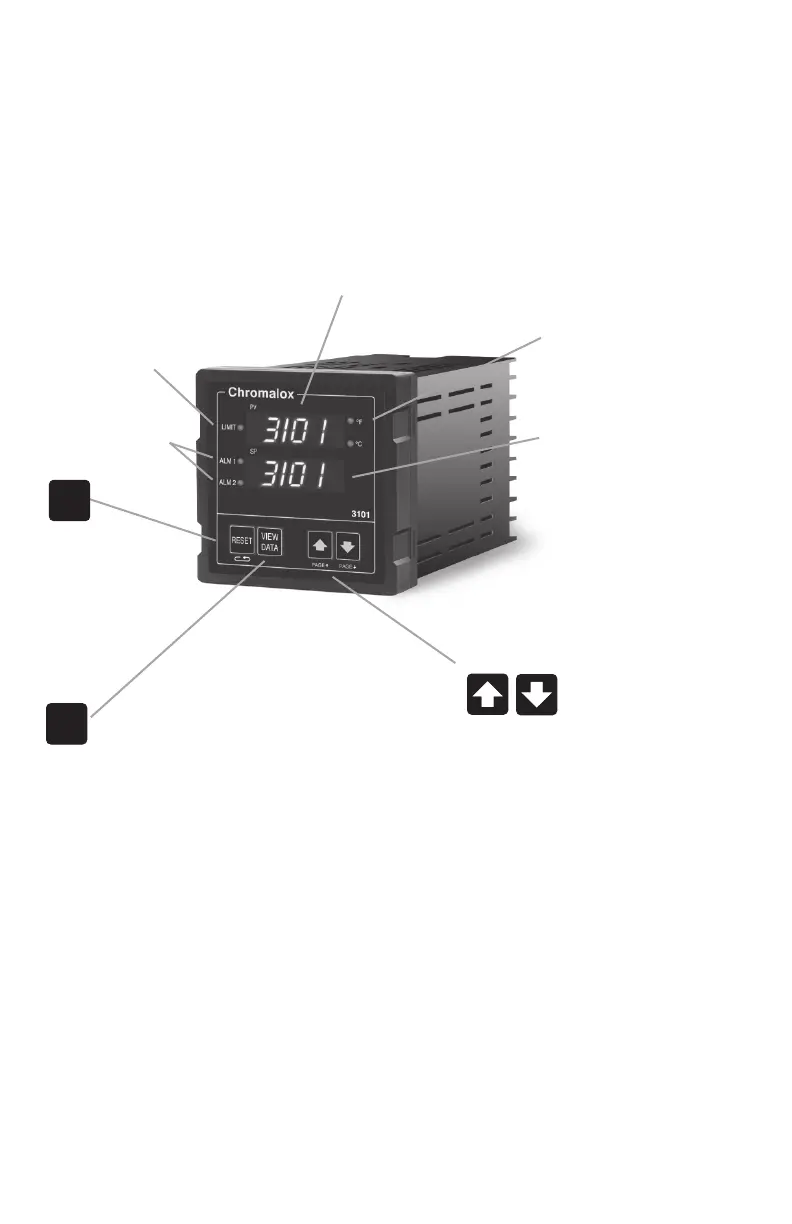

Figure 3.1
Front Panel
Identifi cation
LEDs indicate °F
or °C selected for
Process Variable
• Process Variable Display in
Normal Display Mode
• Alphanumeric Menu
display in Setup Mode
LED indicates Limit
Control Output ON
LEDs indicate
Alarms #1 or #2
Output ON
Pushbutton
• Reset Latching Alarms
• Resets Limit Alarm
• Hold for more than
3 seconds to enter or
exit Setup Mode
• Scrolls through
MENUs in
Setup Mode
Pushbutton
• To access Display Page
• To scroll through Display
Page Menus
Limit Setpoint Display
• May be disabled
on SET PAGE
• In Normal Display Mode,
pushbuttons adjust Setpoint.
• In Setup Mode, pushbuttons
increase/decrease MENU
values.
RESET
VIEW
DATA
