44 Chromalox 3101 Operator's Manual
To Enable the Analog Output Option:
The Analog Output function is selected on the SET
PAGE, MENU AOUT. Available MENU settings are:
• PROC = ON (Enabled)
• NONE = OFF (Disabled)
SET
PAGE
▲▼
RESET
AOUT
PROC
▲▼
RESET
➮
VIEW
DATA
VIEW
DATA

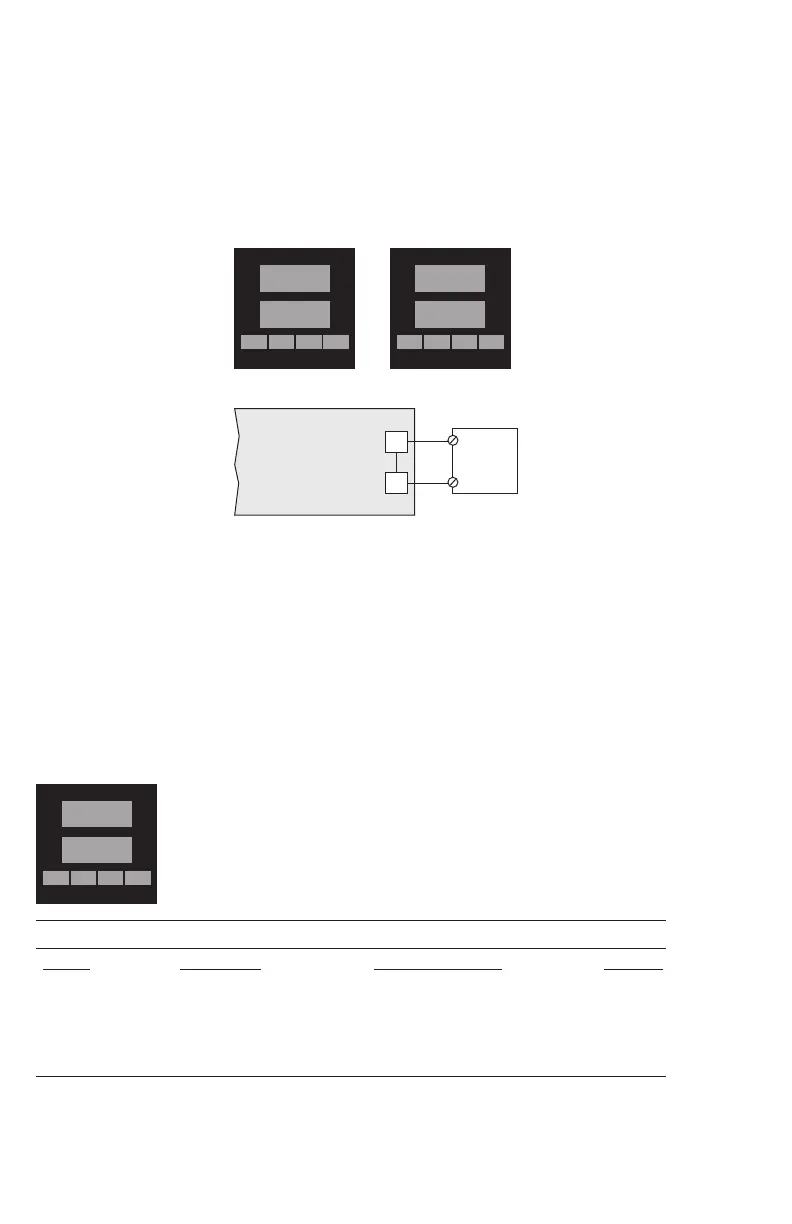

Figure 8.2
Process
Output Wiring
4-20mA,
1-5 Vdc
Input
Common
Analog Output
Common
4
6
3101
+
-
To Scale the Output Signal
When the Process Variable or Active Setpoint is
selected for transmission, the output signal is
scaled using the Analog Output scaling MENUs.
Go to the SCAL PAGE, MENUs AOTL (analog
output low) and AOTH (analog output high).
Enter the output signal range to be sent to your
recorder or computer (i.e., 100°F = 4mA and
500°F = 20mA).
SCAL
PAGE
▲▼
RESET
Custom Scaling Page
MENU Description Available Settings Security
AOTL Analog Process Instrument Sensor Span C
Output - Low
AOTH Analog Process Instrument Sensor Span C
Output - High
VIEW
DATA
