1-4 Overview
3916 Service Delivery Switch Hardware Installation and Start-up Manual
009-3226-001 Standard Revision E
Copyright
©
2013-2015 Ciena
®
Corporation July 2015

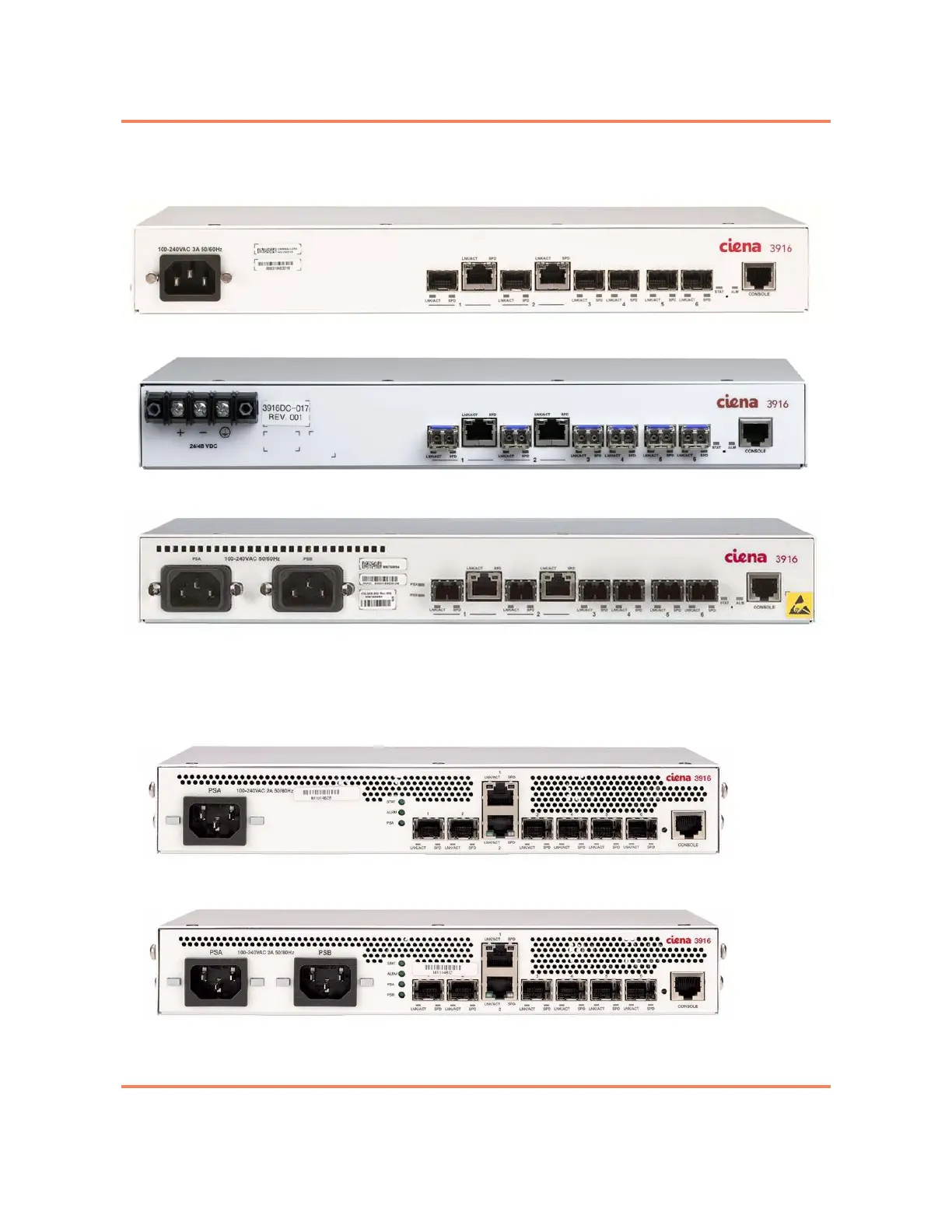

Figure 1-1
View of the 3916 (Standard Chassis)
Figure 1-2
View of the 3916 (Mini Chassis)
3916 AC Standard
3916 DC Standard
3916 Dual AC Standard
3916 Single AC Mini
3916 Dual AC Mini
