6.4 TECHNICAL MAINTENANCE
The following manintenance operations are to be done only by technical personnel. Remove the
covers (refer to technical manual) and do as follows:
6.4.1 OILING THE JAWS

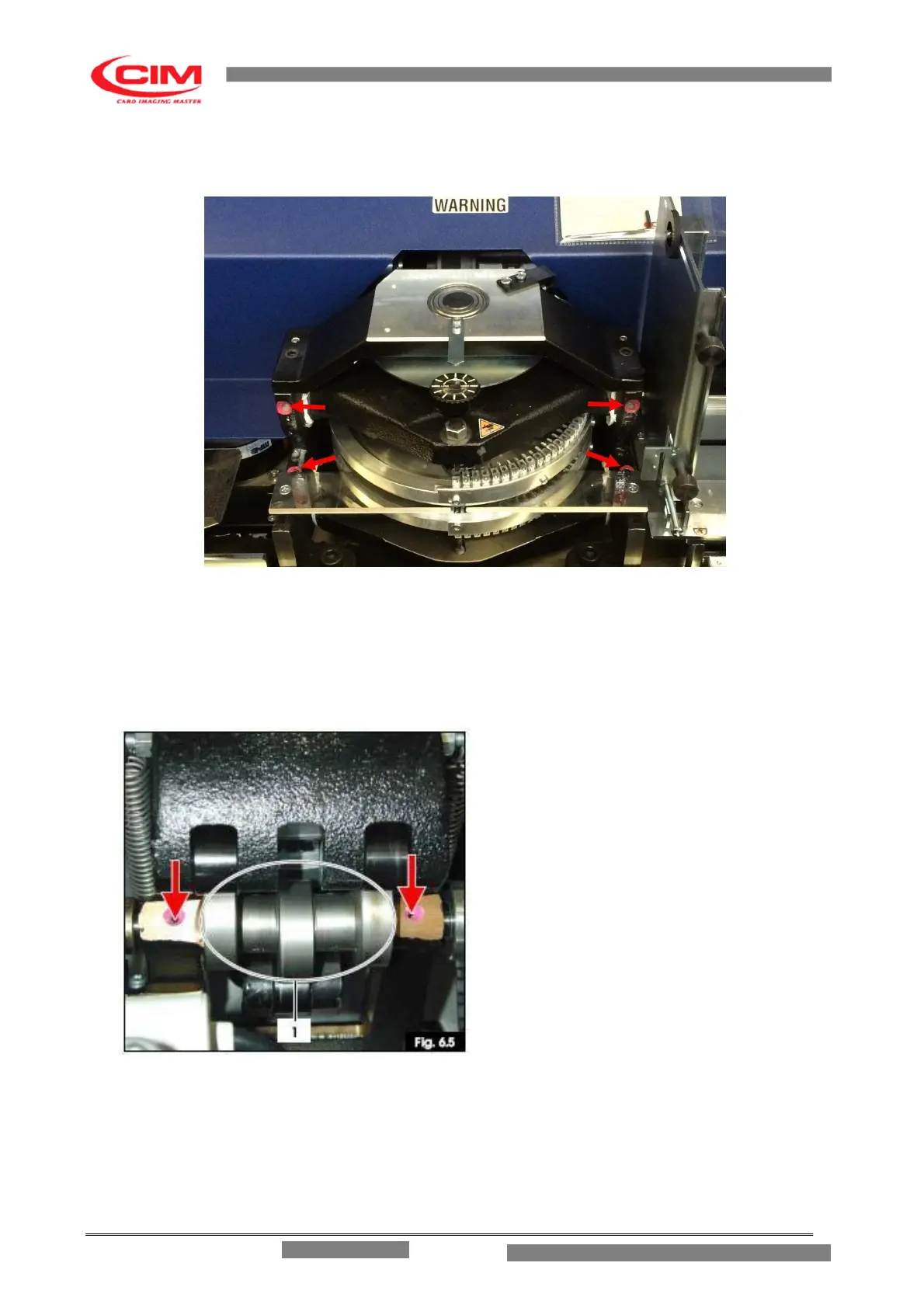

Refer to figure, oil the holes indicated by the arrovws that are on the machine. They are painted red and are
around the jaws group of the Embosser. To oil the points that are behind the jaws is a little difficult but with a
long spout on the oiler it can be done.
Grease the cams (1).
ME 1500 – Operators Manual
