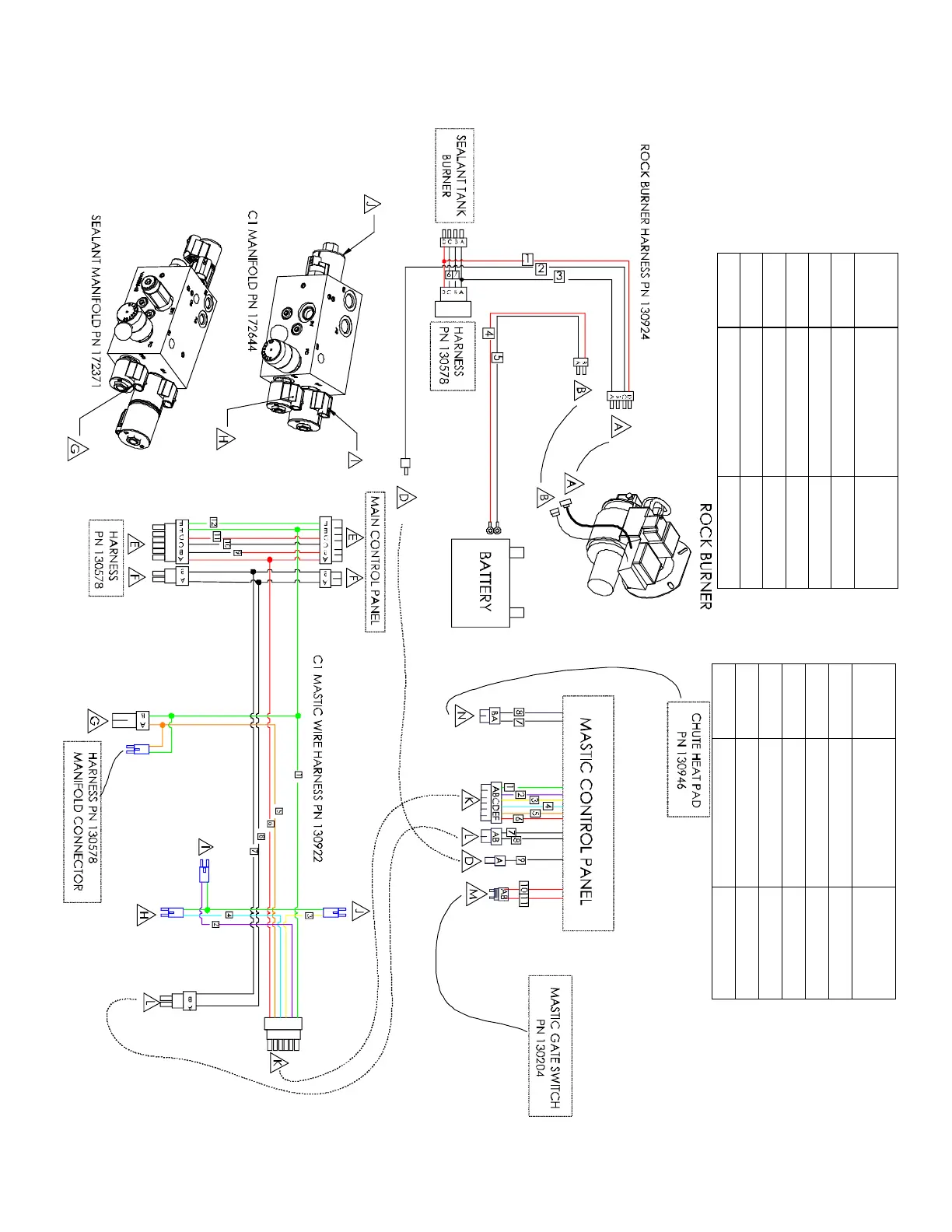

CIMLINE C1 - Mastic Wiring Diagram

34
Mastic Wiring Diagram
Number
Color
AWG
Wire Gauge
1
Green/Yellow stripe
12
2
PURPLE
16
3
Yellow
16
4
Light Blue
16
5
Orange
16
6
Red
16
Number
Color
AWG
Wire Gauge
7
White
16
8
Black
16
9
Red
12
10
White
16
11
Red
16
12
Green
16
